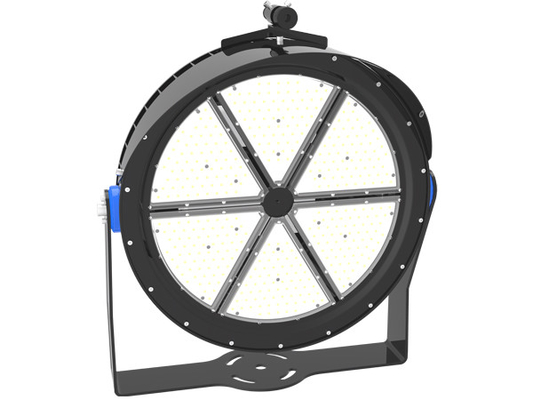

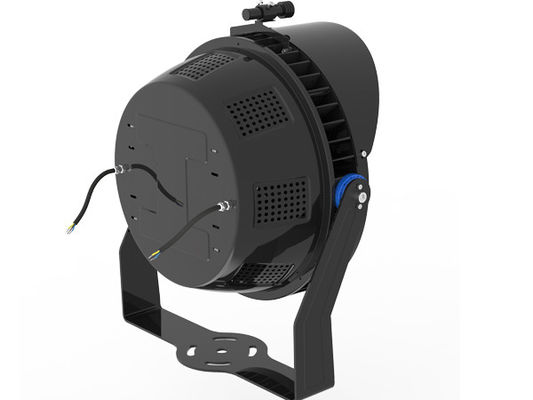

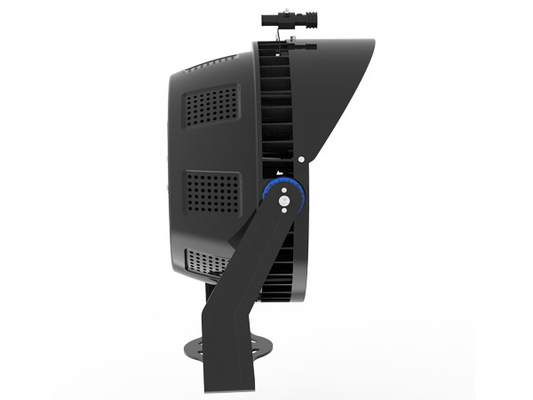

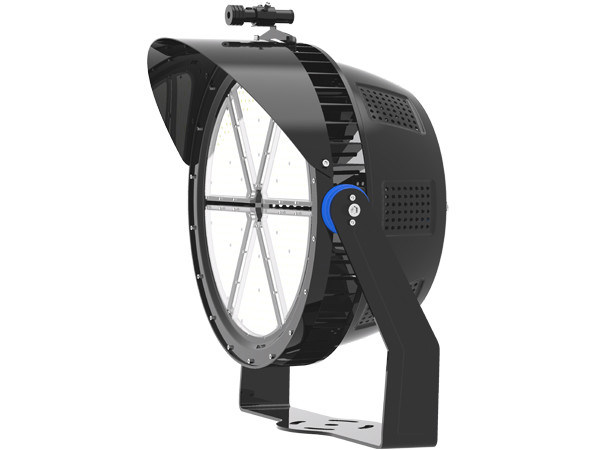

Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting Housing Stadium Light

Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting Housing Stadium Light

  • Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light
  • Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light
  • Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light
  • Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light
  • Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light
Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-SPL400-FGXP
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Power: 400W LEDs: SMD3030
Luminaire Efficiency: 150lm/W IP Rating: IP66
Power Factor: >0.9 Warranty: 5 Years
High Light:

industrial high bay led lighting

,

led stadium floodlights

Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Housing



Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency
Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 1
Features:
* Aiming device Laser Pointer;
* 30°/60°/90° beam angle for options;
* 400W 45000lm, for 800W MHL equivalent;
* ±360° adjustable bracket;
* TM21(L80>50000hrs);

Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency
Model No.
DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W
300W 400W 600W 800W
System Efficiency/LPW
150LPW
Lumen Output/lm
45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD5050
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
30°/60°/90°
UGR
<25
Surge Protection
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Meanwell ELG / HLG Optional
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC
Lifespan/hrs
70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency
Character/Power
300W
400W
600W
800W
Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 4Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 5
A / mm
Ø445
Ø445
Ø537
Ø537
B / mm
321
321
373
373

400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 7


400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 9
400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts

400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 12

Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 13

Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 14

Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 15

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-FGXP
12.4
610*510*250
13.8
1PCS/CTN
DR-SPL400-FGXP
12.9
610*510*250
14.7
1PCS/CTN
DR-SPL600-FGXP
25.3
890*710*275
27.6
1PCS/CTN
DR-SPL800-FGXP 25.9 890*710*275 28.8
1PCS/CTN


Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 16
Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 17

Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 18


Flicker Free Outdoor LED Flood Light Sports Field Lighting 150LPW AL6063 Die Casting  Housing Stadium Light 19


High Output SMD LED Floodlight  , SMD LED Lights 120LPW Efficiency 10 Watt

Q1: What is the warranty for the F4 flood light?
RE: For the F3 Series SMD LED flood light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2:  What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q3: Can I start with 1pcs sample?
RE: Yes, 1pcs sample order for testing welcomed.

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.



Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.



Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;

Q8: How long for the delivery time?
RE: 3 to 5 working days for samples, massive orders is within 10-15 working days according to the quantity.30 days for customized products with opening new mold.Urgent delivery time requirement is available,we will try our best to help you.

Q9: What is the CRI?

RE: Ra>70 for standard.



Q10: IP Rating?
RE: IP65.

Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q14: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

For more, please contact us freely.
