| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL1250-EG2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Rated Power: | 1250W | LEDs Typ/Qty: | SMD3030 2240pcs |
|---|---|---|---|
| IP Rating: | IP66 | AC Input Vol: | AC100~277V 50/60Hz |
| Lumen Maintenance @ 6000 Hrs: | >90% | Switching Cycle Before Failure: | 100,000 |
| Life Span: | >50,000 | Power Supply: | Meanwell/Sosen |
| High Light: | industrial high bay led lighting,high mast flood lights |
||

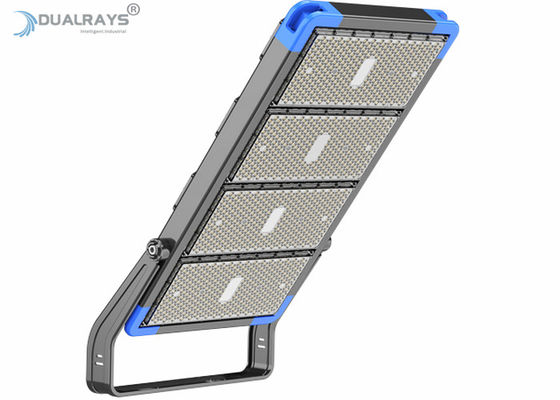

Dualrays F5 Series 1250W Football Stadium Floodlights IP66 and IK10 Protection Multible Beam Angle
LED Sport Ground Flood Light--Features:
| Model No. | DR-FL1250-EGXP | |||
| Rated Power/W | 1250W | |||
| LEDs Light Source | SMD3030 | |||
| Luminous Flux/LM | 187,500±5% | |||
| LED Driver | Meanwell ELG/HLG, Sosen | |||
| UGR | <25 | |||
| THD | <10% | |||
| SDCM | <6 | |||
| Lumen Maintenance @ 6000 hrs | >95% | |||
| Installation Option | Ground Mounting, Wall Mounting, Ceiling Mounting, Pipe Mounting | |||
| Material | AL+PC | |||
| Model No. | DR-FL250-EGXX | DR-FL500-EGXX | DR-FL750-EGXX | DR-FL1000-EGXX | DR-FL1250-EGXX | DR-FL1500-EGXX |
| System Watts/W | 250W | 500W | 750W | 1000W | 1250W | 1500W |
| System Efficiency/LPW | 130~140LPW / 150~160LPW Optional | |||||
| Lumen Output (Max) /lm | 40.000±5% | 80.000±5% | 120.000±5% | 160.000±5% | 200.000±5% | 240.000±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | |||||
| LEDs Light Source | SMD3030 / SMD5050 Optional | |||||
| SDCM | <5 | |||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||||
| CRI/Ra | >70Ra (>80Ra for Option) | |||||
| Power Factor | >0.95 | |||||
| THD | <10% | |||||
| Beam Angle(Optional) | Symmetrical 25°/55°/90°/120°,Asymmetrical 80*145°/45*157°/105*157°/160*160° Optional | |||||
| UGR | <25 | |||||
| Surge Protection | 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||||
| LED Driver | SOSEN / Meanwell ELG Optional | |||||
| IP Rating | IP66 | |||||
| Dimming(Optional) | 1-10V, DALI,PWM,Zigbee | |||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||||
| Start Time | 0.5s | |||||
| Protection Class | ClassⅠ | |||||
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional | |||||
| Material | Aluminum+PC | |||||
| Lifespan/hrs | 70.000 Hrs (Ta=30℃@L70) | |||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | |||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||||
| Switching Cycles | 720,000 Times | |||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||||
Packaging Information:
| Model No. | Power | Outer Carton Size(MM) | G.W(KG) | Quantity/CTN |
| DR-FL050-DGXP | 50W | 340*110*190 | 2.8 | 1PCS |
| DR-FL100-DGXP | 100W | 340*110*250 | 4.3 | 1PCS |
| DR-FL150-DGXP | 150W | 340*110*330 | 5.2 | 1PCS |
| DR-FL200-DGXP | 200W | 340*120*400 | 6.7 | 1PCS |
| DR-FL250-DGXP | 250W | 340*120*480 | 7.8 | 1PCS |
| DR-FL300-DGXP | 300W | 340*120*560 | 9.2 | 1PCS |
| DR-FL400-DGXP | 400W | 600*140*400 | 12.6 | 1PCS |
| DR-FL500-DGXP | 500W | 600*140*480 | 13.7 | 1PCS |
| DR-FL600-DGXP | 600W | 600*140*550 | 15.7 | 1PCS |
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
Contact Person: Mr. David Lau
Tel: 86-18620309436
Fax: 86-755-61641072
