Name: Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST150-CG1
Availability: InStock

Home Products S4 LED Street Light

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty

Product Details:

Place of Origin:	China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST150-CG1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	Netural Package,color box package,1PCS/CTN,L415xW390xH205mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	150W	Luminaire Efficiency:	150lm/W
IP Rating:	IP66	Life Span:	>50,000
Warranty:	5 Years	Power Supply:	Meanwell/Sosen
Highlight:	led cobra head street light , decorative street light

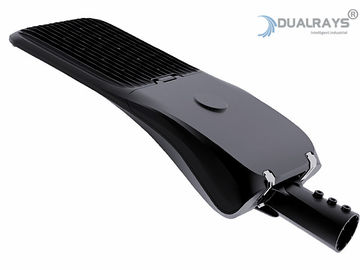

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 0

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 1

S4 Outdoor LED Street Light--Details:

> Excellent heat dissipation with Die-casting Al ;

> Surge Protection: 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional;

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Power factor>95%;

> Class I Protection;

> Driver and housing separated by spacers;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

S4 Outdoor LED Street Light----Options:

> Driver: Meanwell ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 3

Model No.	DR-ST150-DGX
Rated Power/W	150W
Systen Efficiency/LPW	150LPW
Material	Aluminum+PC+Toughened Glass
Life Span/hrs	>50000
Operation Temperature	-40 ~ +55℃
Storage Temperature	-40 ~ +85℃
Pipe Diameter	ø60mm
Certificate	CE,ROHS,TUV/GS,LM79,LM80

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 4
30W/60W Version

90W,120W/150W/180W Version

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 7

Packaging Information
Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 11

Shipment
Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 12
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 13

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 14

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 15

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 16

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 17

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 18

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 19

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 20

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 21

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 22

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 23
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Dualrays S4 Series 150W Modular Design LED Street Light Fixtures 140lmW with 5 Years Warranty 24
