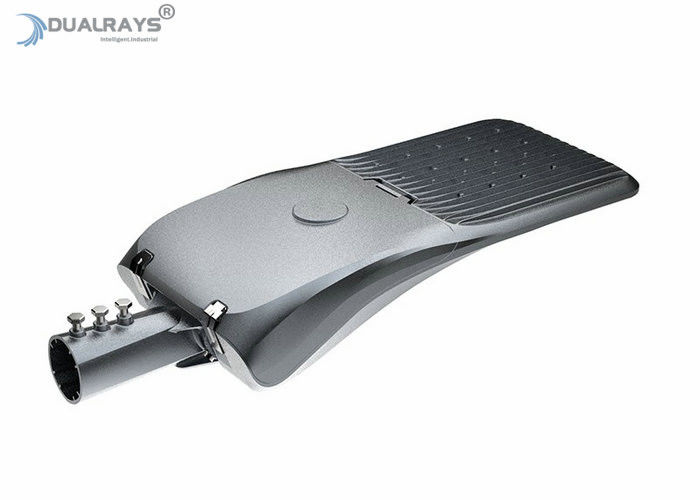

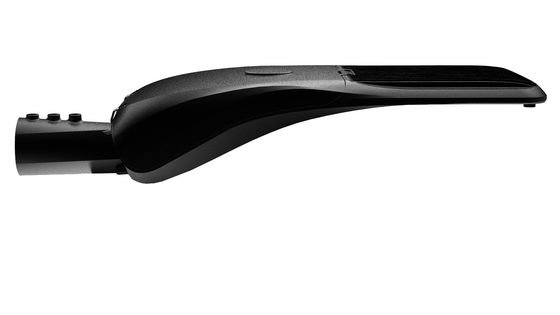

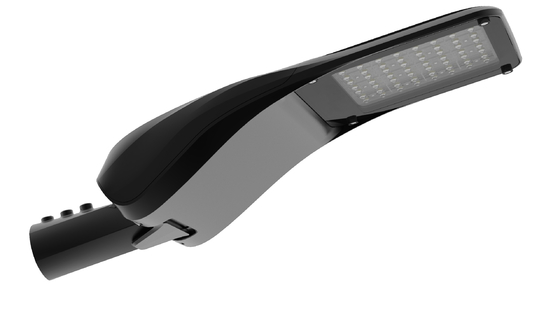

Name: Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST240-DG1
Availability: InStock

Home Products S4 LED Street Light

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Dualrays
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST240-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	negotiable
Packaging Details:	Netural Package,color box package,1PCS/CTN,1040(L)490(W)200(H)mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C,Paypal
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	24W	LEDs Typ/Qty:	SMD3030/SMD5050
Luminaire Efficiency:	150lm/W	Luminous Flux:	29,400±5%
Color Index:	>80Ra	Switching Cycle Before Failure:	100,000
Highlight:	led cobra head street light , warm white led street lights

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving 0

Production Advantage:

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control supported;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager available;
> Light pole adapter for different poles optional;

> Making or special projects;

* Loading Area for display

* Parking lot.

* Playground for display
* Sport and Stadium for showing

Model No	/	DR-ST030-DG1	DR-ST060-DG1	DR-ST090-DG1	DR-ST120-DG1	DR-ST150-DG1	DR-ST180-DG1
Rated Power	W	30	60	90	120	150	180
LEDs Typ/Qty	SMD 3030	96	96	512	640	640	640
Luminous Flux	LM	4,200±5%	8,400±5%	12,600±5%	16,800±5%	21,000±5%	25,200±5%
Efficiency	LPW	140	140	140	140	140	140
Color Temperature	CCT/K	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	/	1-10VDC /PWM / Resistance
Protections	/	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	/	Grade A
Color Index	Ra	>70Ra/>80Ra optional
Beam Angle	Degree	120
IP/Rating	/	IP66
AC Input Vol	V	AC95~277V 50/60Hz
Optics	/	Type I /Type III
Power Factor	PF	PF>0.95
Starting Time	s	<0.1
Lumen Maintenance @ 6000 hrs	Hours	>95%
Switching Cycle before Failure	Times	100,000
Life Span	Hours	50,000
Warranty	Years	5 years
Operation Temperature	℃	-40 ~ +55℃
Storage Temperature	℃	-40 ~ +85℃

30W/60W Version
Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving 5

90W,120W/150W/180W Version

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving 7

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving 13

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving 14

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving 15

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving 16

Great Output Outdoor LED Street Lights 180W IP66 150lm / W Meanwell / Sosen Driving 17

Q1: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q2: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q3: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q4: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q5: What‘re the chips and drivers used?

RE: High brightness NICHIA LEDs light source,Meanwell drivers for standard configuration.
