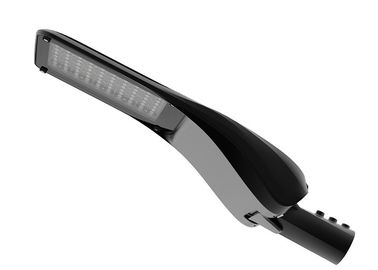

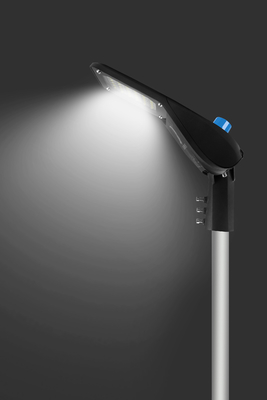

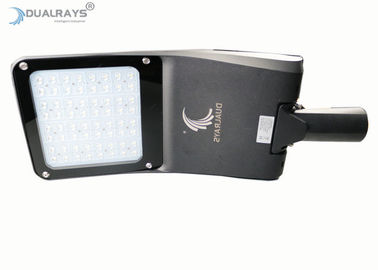

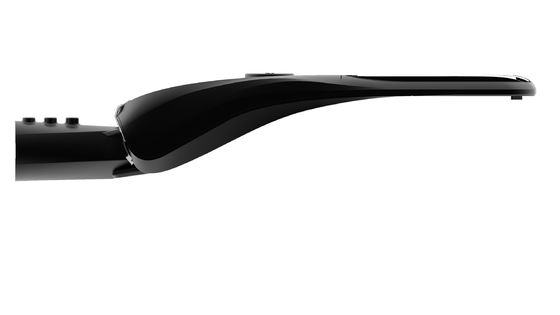

Dualrays S4 Series 180W 5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing

Dualrays S4 Series 180W 5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing

  • Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing
  • Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing
  • Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing
  • Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing
  • Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing
Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Dualrays Optoelectronics
Certification: CE,RoHS,LM79,LM80
Model Number: DR-ST150-DG1
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 business days
Payment Terms: Western Union, T/T, L/C, MoneyGram, MoneyGram
Supply Ability: 100000PCS/Month
Contact Now
Detailed Product Description
Rated Power: 180W IP Rating: IP66
Power Factor: >0.9 Warranty: 5 Years
Power Supply: Meanwell/Sosen Controls And Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming For Option
Highlight:

led cobra head street light

,

decorative street light

Dualrays S4 Series 180W 5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing



Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 0

Dualrays S4 Series 180W Outdoor LED Street Light--Details:
> Excellent heat dissipation with Die-casting Al ;
> Surge Protection: 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional;
> IP66 and IK10 for outfoor street lighting application;
> Power factor>95%;
> L80/B10 @ 50.000h;
> Driver and housing separated by spacers;
> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;
> 5 years warranty,7 or 10 years warranty negotiated;

Dualrays S4 Series 180W Outdoor LED Street Light--Options:
> Driver: Meanwell ELG/HLG,Sosen;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
> 10KA SPD,20KA Meanwell SPD optional;
> Black RAL9017/ White RAL9016

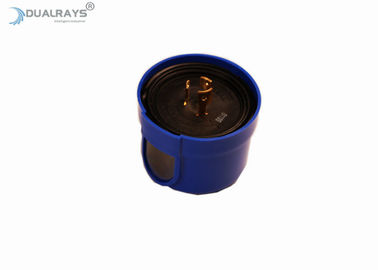

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized supported for special projects;

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 1
* Roadways.
* Avenues.
* Walkways.
* Loading Area.
* Parking lot.
* Playground.
* Sport and Stadium.


Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 2



Model No. DR-ST180-DGX
Rated Power/W 180W
Systen Efficiency/LPW 150LPW
Lumen Output/ Im 27.000+5%
Rated Input Voltage/V AC100~277V 50/60Hz
LED Light Source SMD3030
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K
Color Index 70Ra (>80Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle (Optional) Type I/ Type II (Long and medium)/ Type III (Medium)/Type IV (Medium)/Type V (Medium)
UGR <25
Surge Protection 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional
LED Driver Meanwell ELG/HLG, Sosen
Dimming options 0/1-10V/PWM/DALI/Zigbee
Protection Class Class I
Finishing Color (Optional) Black RAL9017/ White RAL9016
Material Aluminum+PC+Toughened Glass
Life Span/hrs >50000
Operation Temperature -40 ~ +55℃
Storage Temperature -40 ~ +85℃
Pipe Diameter ø60mm
Certificate CE,ROHS,TUV/GS,LM79,LM80



Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 3
30W/60W Version
Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 4
90W,120W/150W/180W Version
Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 5

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 6

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 7

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 8

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 9
Packaging Information
Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 10

Shipment
Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 11
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.





Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 12

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 13

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 14

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 15

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 16

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 17

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 18



Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 19



Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 20

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 21

Dualrays S4 Series  180W  5 Years Warranty Outdoor LED Street Light IP66 Smooth and Glossy Processing 22
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
