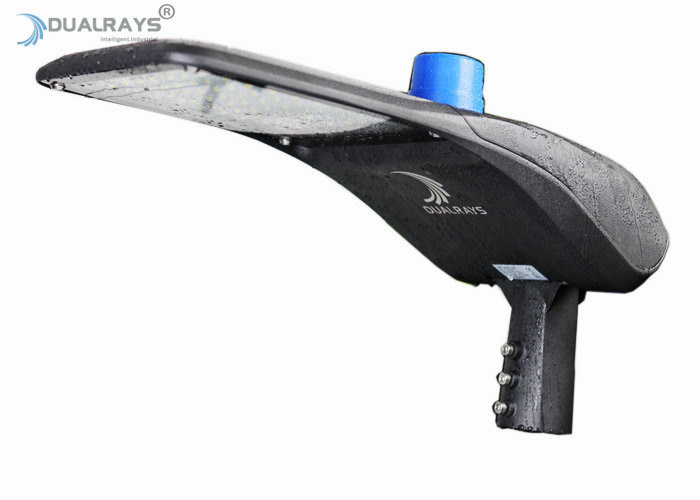

Name: Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST150-DG1
Availability: InStock

Home Products S4 LED Street Light

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot

Product Details:

Place of Origin:	China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST150-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	Netural Package,color box package,1PCS/CTN,790(L)390(W)200(H)mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	150W	Luminous Flux:	21,000±5%
IP Rating:	IP66	Power Factor:	PF>0.9
Warranty:	5 Years	Power Supply:	Meanwell/Sosen
Highlight:	led cobra head street light , warm white led street lights

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 0

Outdoor LED Street Light--Details:

> Die-casting Al and excellent heat dissipation ;

> Surge Protection: 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional;

> IP66 and IK10 for outfoor street lighting application;

> Power factor>0.95;

> Class I Protection;

> Driver and housing separated by spacers;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

Outdoor LED Street Light--Options:

> Driver: Meanwell ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> Black RAL9017/ White RAL9016

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 2

Model No.	DR-ST150-DGX
Rated Power/W	150W
Systen Efficiency/LPW	150LPW
Lumen Output/ Im	22.500+5%
Rated Input Voltage/V	AC100~277V 50/60Hz
LED Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K
Color Index	70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle (Optional)	Type I/ Type II (Long and medium)/ Type III (Medium)/Type IV (Medium)/Type V (Medium)
UGR	<25
Surge Protection	6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG, Sosen
Dimming options	0/1-10V/PWM/DALI/Zigbee
Material	Aluminum+PC+Toughened Glass
Life Span/hrs	>50000
Operation Temperature	-40 ~ +55℃
Storage Temperature	-40 ~ +85℃
Pipe Diameter	ø60mm
Certificate	CE,ROHS,TUV/GS,LM79,LM80

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 3
30W/60W Version

90W,120W/150W/180W Version

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 6

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 16

DALI Device
Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 18

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 23

Shipment
Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 24
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 25

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 26

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 27

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 28

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 29

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 30

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 31

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 32

Q1: What is the warranty for the LED street light?

RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q3: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q4: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q5: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q6: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Q7: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q8:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Dualrays 150W S4 Series Maintenance Free LED Street Light for Outdoor Parking Lot 35
