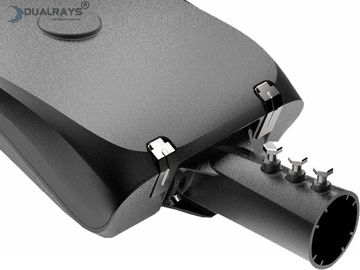

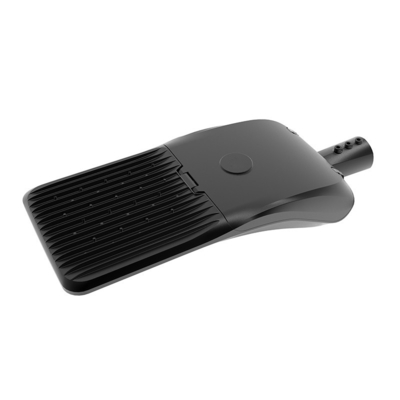

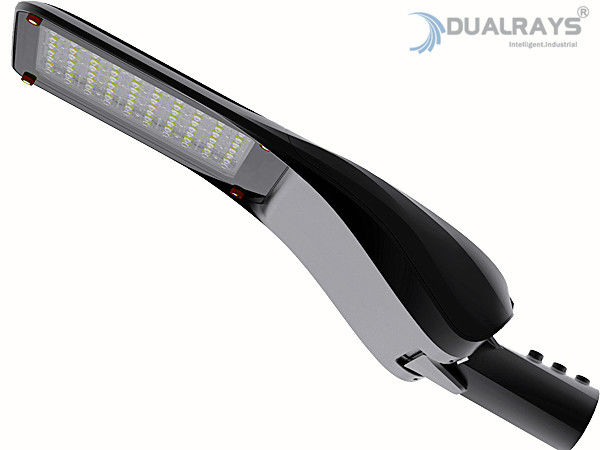

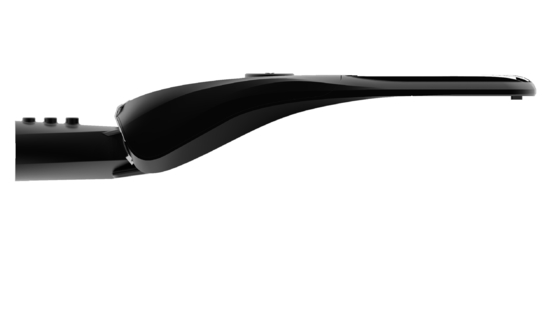

Name: 2020 Hot sale Outpt street led lights with motion serson for highway display
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST060-DG1
Availability: InStock

Home Products LED Street Light

2020 Hot sale Outpt street led lights with motion serson for highway display

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Dualrays
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST060-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package,color box package,1PCS/CTN,L415xW390xH205mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

IP Rating:	IP66	Switching Cycle Before Failure:	100,000
Input Voltage:	AC100~277V 50/60Hz	IK Rating:	IK10
Power Supply:	Meanwell/Sosen	THD:	<10%
Highlight:	led cobra head street light , decorative street light

2020 Hot sale Outpt street led lights with motion serson for highway display

2020 Hot sale Outpt street led lights with motion serson for highway display 0

Quick details:

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

>Excellent Heat disspation and Zigbee module

>(Single-lamp Controller and centralized manager) with software for option;

> Customized available for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Item	Symbol	Description
Model No	/	DR-ST030-DG1	DR-ST060-DG1	DR-ST090-DG1	DR-ST120-DG1	DR-ST150-DG1	DR-ST180-DG1
Rated Power	W	30	60	90	120	150	180
LEDs Typ/Qty	SMD 3030	96	96	512	640	640	640
Luminous Flux	LM	4,200±5%	8,400±5%	12,600±5%	16,800±5%	21,000±5%	25,200±5%
Efficiency	LPW	140	140	140	140	140	140
Color Temperature	CCT/K	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	/	1-10VDC /PWM / Resistance
Protections	/	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	/	Grade A
Color Index	Ra	>70Ra/>80Ra optional
Beam Angle	Degree	120
IP/Rating	/	IP66
AC Input Vol	V	AC95~277V 50/60Hz
Optics	/	Type I /Type III
Power Factor	PF	PF>0.95
Starting Time	s	<0.1
Lumen Maintenance @ 6000 hrs	Hours	>95%
Switching Cycle before Failure	Times	100,000
Life Span	Hours	50,000
Warranty	Years	5 years
Operation Temperature	℃	-40 ~ +55℃
Storage Temperature	℃	-40 ~ +85℃

30W/60W Version
2020 Hot sale Outpt street led lights with motion serson for highway display 5

90W,120W/150W/180W Version

2020 Hot sale Outpt street led lights with motion serson for highway display 7

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
2020 Hot sale Outpt street led lights with motion serson for highway display 17

DALI Device
2020 Hot sale Outpt street led lights with motion serson for highway display 19

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

2020 Hot sale Outpt street led lights with motion serson for highway display 23

2020 Hot sale Outpt street led lights with motion serson for highway display 24

2020 Hot sale Outpt street led lights with motion serson for highway display 25

2020 Hot sale Outpt street led lights with motion serson for highway display 26

2020 Hot sale Outpt street led lights with motion serson for highway display 27

2020 Hot sale Outpt street led lights with motion serson for highway display 28

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul! 2020 Hot sale Outpt street led lights with motion serson for highway display 30

Packaging Information
2020 Hot sale Outpt street led lights with motion serson for highway display 31
