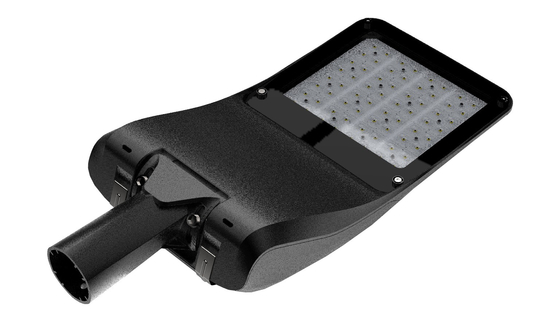

Name: 90W High Output Outdoor LED Street Light With Meanwell For The Roadways Display
Brand: Dualrays
SKU: DR-ST090-DGXP

Home Products Outdoor LED Street Lights

90W High Output Outdoor LED Street Light With Meanwell For The Roadways Display

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Dualrays
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST090-DGXP

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package,color box package,1PCS/CTN,L415xW390xH205mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	90 PLW	Color Temperature:	WW:3000K NW: 4000K DW:5000K CW: 5700±200K
SDCM:	<6	Surge Protection:	6-10 KV SPD Built In Driver
LED Driver:	Meanwell, Sosen	LED Lights Source:	SMD3030
High Light:	led cobra head street light , warm white led street lights

90W High Output Outdoor LED Street Light With Meanwell For The Roadways Display

Why choosing DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

Outdoor LED Street Lights

Production description list:

Item No.	DR-ST090-DGXP	Housing color	Silver, Black, Grey etc
Input Voltage	AC100-277V 50/60HZ	CRI	>80Ra(>70Ra for option)
Power	90W	IP Rating	IP66
Working Temp	-40 to +50℃	IK Rating	IK10
Material	AL +PMMA	Light Source	SMD2835
Beam Angle	60120º/75135°	LED Efficiency	150LPW
CCT	2700-6500K	Certificate	CE, RoHS,
Dimension	950(L)455(W)125(D)mm	Warranty	5 years
UGR	<25	Driving Brand	Meanwell/Sosen

Outdoor LED Street Lights sepecificaiton:

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Color Index	Ra	>70Ra/>80Ra optional
Beam Angle	Degree	120
IP/Rating	/	IP66
AC Input Vol	V	AC95~277V 50/60Hz
Optics	/	Type I /Type III
Power Factor	PF	PF>0.95
Starting Time	s	<0.1
Lumen Maintenance @ 6000 hrs	Hours	>95%
Switching Cycle before Failure	Times	100,000
Life Span	Hours	50,000
Warranty	Years	5 years

30W/60W Version
2020 Hot sale Outpt street led lights with motion serson for highway display

90W,120W/150W/180W Version

2020 Hot sale Outpt street led lights with motion serson for highway display

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
