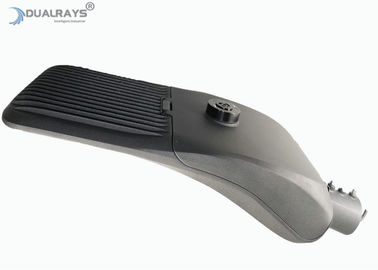

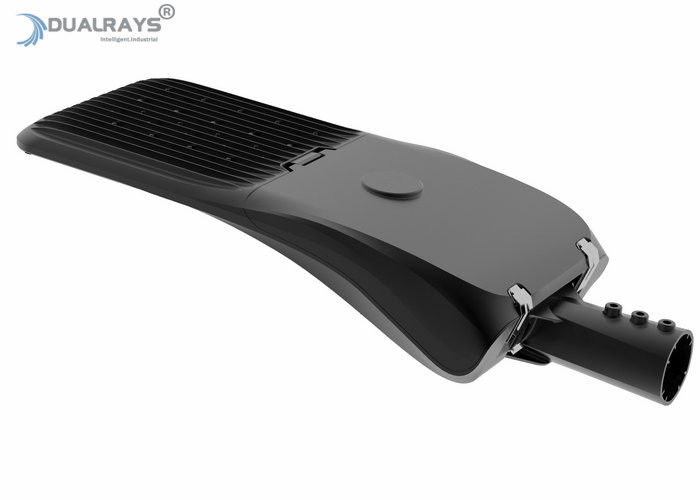

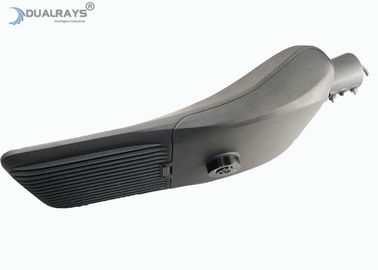

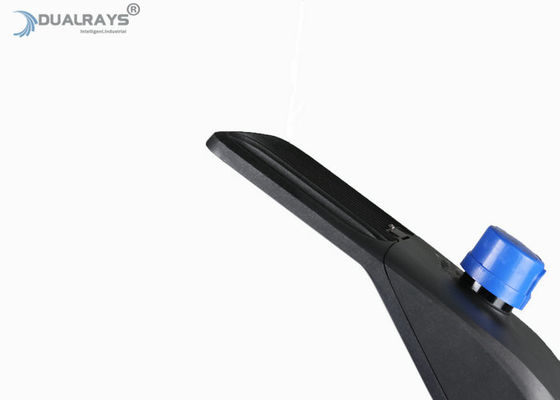

Name: Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST120-DGXP
Availability: InStock

Home Products S4 LED Street Light

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10

Product Details:

Place of Origin:	Shenzhhen,China
Brand Name:	Dualrays Optoelectronics
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST120-DGXP

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C,Paypal
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	120W	Color Temperature:	WW:3000K NW: 4000K DW:5000K CW: 5700±200K
IP Rating:	IP66	Life Span:	>50,000
Warranty:	5 Years	Power Supply:	Meanwell/Sosen
Highlight:	warm white led street lights , decorative street light

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10

Outdoor LED Street lights certificaiton details:

All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 0

Outdoor LED Street Lights Production sepecification:

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Item No.	DR-ST120-DGXP	Housing color	Silver, Black, Grey etc
Input Voltage	AC100-277V 50/60HZ	CRI	>80Ra(>70Ra for option)
Power	60W	IP Rating	IP66
Working Temp	-40 to +50℃	IK Rating	IK10
Luminous Flux	16,800lm	Material	AL+PMMA
Beam Angle	60120º/75135°	LED Efficiency	150LPW
CCT	2700-6500K	Certificate	CE, RoHS,
Dimension	950(L)455(W)125(D)mm	Warranty	5 years
UGR	<25	Driving Brand	Meanwell/Sosen

30W/60W Version
Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 5

90W,120W/150W/180W Version

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 7

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 15

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 16

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 17

We are proud to provide innovative designs,affordable LED luminaires,high-touch service, excellent customer experience for the leading distributor,wholesaler,and contractor from Western Europe and Oceania.

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 18

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 19 (Partnership)

Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 20

(Customer Portfolio)

Dualrays is practicing the enterprise management principle “Perfect or Nothing”.

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 21

Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 22
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul! Factory Supply Best Price Dimming Control LED Street Light With IP66 IK10 23
Packaging Information
