Name: Dualrays S4 Series 60W SMD5050 Outdoor LED Street Lights With IP66 Protection 5 Years Guarantee
Brand: DUALRAYS
SKU: DR-ST60-DGXP
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (103 reviews)

Home Products Outdoor LED Street Lights

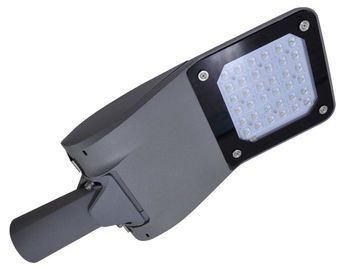

Dualrays S4 Series 60W SMD5050 Outdoor LED Street Lights With IP66 Protection 5 Years Guarantee

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST60-DGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	Netural Package,color box package,1PCS/CTN,590(L)380(W)200(H)mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	60W	Color Index:	>80Ra
Beam Angle:	120°60°,135°75°	Power Factor:	PF>0.9
Life Span:	>50,000	Power Supply:	Meanwell/Sosen
High Light:	led cobra head street light , decorative street light

Dualrays S4 Series 60W SMD5050 Outdoor LED Street Lights With IP66 Protection 5 Years Guarantee

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Dualrays S4 Series 60W Outdoor LED Street Light--Details:

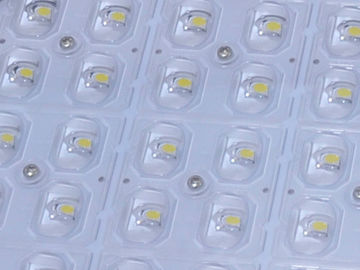

> Adopting SMD3030 LEDs light source, high output lighting efficiency 140lm/W, high Color Rendering Index (CRI>70/80Ra), excellent heat dissipation,low light decay;

> Surge Protection: 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional;

> IP66 and IK10 for outfoor street lighting application;

> Power factor>0.95;

> Class I Protection: Maintenance Free,IP66 protection,IK10 vibration grade;

> Driver and housing separated by spacers;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> CE,RoHS listed,5 years’ warranty;

Dualrays S4 Series 60W Outdoor LED Street Light--Options:

> Driver: Meanwell ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> Black RAL9017/ White RAL9016

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Model No.	DR-ST60-DGXP
Rated Power/W	60W
Systen Efficiency/LPW	150LPW
Lumen Output/ Im	9.000+5%
Rated Input Voltage/V	AC100~277V 50/60Hz
LED Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K
Color Index	70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle (Optional)	Type I/ Type II (Long and medium)/ Type III (Medium)/Type IV (Medium)/Type V (Medium)
UGR	<25
LED Driver	Meanwell ELG/HLG, Sosen
Dimming options	0/1-10V/PWM/DALI/Zigbee
Protection Class	Class I
Finishing Color (Optional)	Black RAL9017/ White RAL9016
Material	Aluminum+PC+Toughened Glass
Life Span/hrs	>50,000hrs
Operation Temperature	-40 ~ +55℃
Storage Temperature	-40 ~ +85℃
Pipe Diameter	ø60mm
Certificate	CE,ROHS,TUV/GS,LM79,LM80

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
30W/60W Version

90W,120W/150W/180W Version

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Packaging Information
Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Shipment
Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

Q1: What is the warranty for the LED street light?

RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: No MOQ, Sample order for testing welcome.

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness NICHIA LEDs light source,Meanwell drivers for standard configuration.

Q9: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q10: What is the CRI?

RE: Ra>70, Ra>80 optional.

Q11: IP Rating?

RE: IP66.

Q12: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q13: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q14: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Q15: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q16:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
