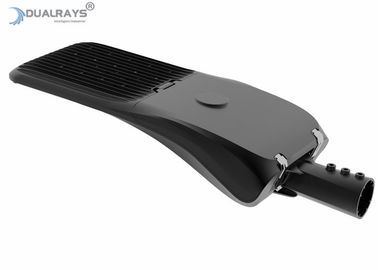

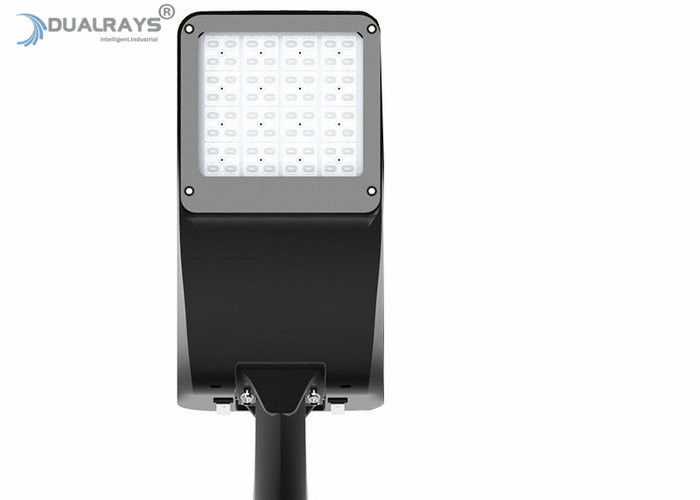

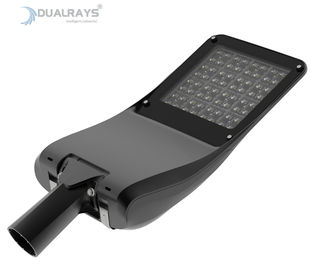

Name: Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST030-DG1
Availability: InStock

Home Products LED Street Light

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Dualrays Optoelectronics
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST030-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	Netural Package,color box package,1PCS/CTN,590(L)380(W)200(H)mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Luminaire Efficiency:	150lm/W	IP Rating:	IP66
Power Factor:	PF>0.9	Switching Cycle Before Failure:	100,000
Life Span:	>50,000hrs	Warranty:	5 Years
Highlight:	led cobra head street light , warm white led street lights

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 0

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 1

Dualrays S4 Series 30W Outdoor LED Street Light--Details:

> Excellent heat dissipation with Die-casting Al;

> IP66 and IK10 for outdoor street lighting application;

> Adopting SMD3030 LEDs light source, high output lighting efficiency 140lm/W, high Color Rendering Index (CRI>70/80Ra);

> Class I Protection;

> Driver and housing separated by spacers;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

> Operation Temperature: -40 ~ +55℃;

> Storage Temperature: -40 ~ +55℃.

Dualrays S4 Series 30W Outdoor LED Street Light--Options:

> Driver: Meanwell ELG/HLG or Sosen for option;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming optional;

> Surge Protection: 10KA SPD,20KA Meanwell SPD for option;

> Black RAL9017/ White RAL9016 optional;

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 3

Model No.	DR-ST30-DGX
Rated Power/W	30W
Systen Efficiency/LPW	150LPW
Lumen Output/ Im	4.5.000+5%
Rated Input Voltage/V	AC100~277V 50/60Hz
LED Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K
Color Index	70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle (Optional)	Type I/ Type II (Long and medium)/ Type III (Medium)/Type IV (Medium)/Type V (Medium)
UGR	<25
Surge Protection	6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG, Sosen
Dimming options	0/1-10V/PWM/DALI/Zigbee
Protection Class	Class I
Finishing Color (Optional)	Black RAL9017/ White RAL9016
Material	Aluminum+PC+Toughened Glass
Life Span/hrs	>50000
Pipe Diameter	ø60mm
Certificate	CE,ROHS,TUV/GS,LM79,LM80

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 4
30W/60W Version

90W,120W/150W/180W Version

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 7

Packaging Information
Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 11

Shipment
Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 12
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 13

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 14

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 15

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 16

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 17

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 18

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert 19
