Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay

Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay

  • Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay
  • Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay
Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Dualrays Optoelectronics
Certification: CE, RoHS,TUV/GS, LM79,LM80
Model Number: DR-TP030-BHG4XPX
Payment & Shipping Terms:
Minimum Order Quantity: 8pcs
Price: 27.33~28.43USD/pcs
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 business days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000PCS/Month
Contact Now
Detailed Product Description
Rated Power: 30W LEDs Typ/Qty: SMD2835 240pcs
Luminaire Efficiency: 160lm/W Luminous Flux: 4,800±5%
Color Temperature: WW:3000K NW:4000K DW:5000K CW: 5700±200K Beam Angle: 120°
IP Rating: IP65 Power Factor: PF>0.9
Warranty: 5 Years Power Supply: Boke
High Light:

dust proof led lights

,

explosion proof led lights

Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay
Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 0
Dualrays D2.5 Series 40W LED Tri Proof Light-- Feature:
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> Single or Double wiring,backside cable output avaialable;
> IP65 and IK08 for all industrial areas of application;

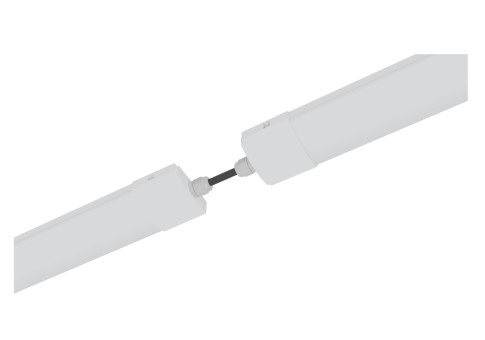

> Multiple Link with double wiring;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

Dualrays D2.5 Series 40W LED Tri Proof Light-- Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Installation: Suspension.
> Single or double wiring and connection.
> Customized supported for special projects.


Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 1
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations


Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 2

Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 3
Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 4 Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 5

Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 6

Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 7


Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 8

Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 9
DALI Device
Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 10

DALI Intelligent Control Diagram
Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 11 Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 12


DALI Intelligent Control Operator Interface
Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 13

Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 14
Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 15

Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 16


Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 17
Packaging Information
Dualrays D2.5 Series 40W Corridor Gallery LED Tri Proof Lamp 160LmW Low Light Decay 18



Shipment
Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.


Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

Q1: What is the warranty for the D2 LED triproof light?
RE: For the D2 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?
RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K

Q3: Is there a MOQ?
RE: 10PCS

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.



Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.



Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?
RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

Q9: What is the CRI?

RE: Ra>80 for standard.



Q10: IP Rating?
RE: IP65.

Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?
RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?
RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q14: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.


Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
