| Place of Origin: | Shenzhen, China |
| Brand Name: | Dualrays |
| Certification: | CE, Rohs, |
| Model Number: | DR-ULM055-DE5C |
| Minimum Order Quantity: | 8pcs |
|---|---|
| Price: | Standard |
| Packaging Details: | Neutral Package,color box package,8PCS/CTN, |
| Delivery Time: | 15 business days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100000PCS/Month |
| Rated Power: | 55W | LEDs: | SMD2835 |
|---|---|---|---|
| Luminaire Efficiency: | 150lm/W | Color Temperature: | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K |
| Power Factor: | PF>0.9 | Lumen Maintenance @ 6000 Hrs: | >90% |
| Driver: | BOKE | Life Span: | >50,000 |
| Warranty: | 5 Years | L80: | >50000hrs |
| High Light: | led linear high bay,linear ceiling light |
||

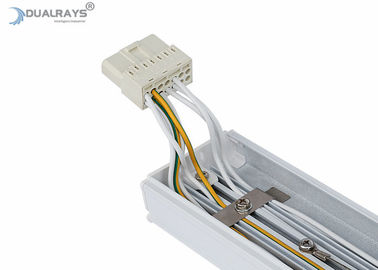

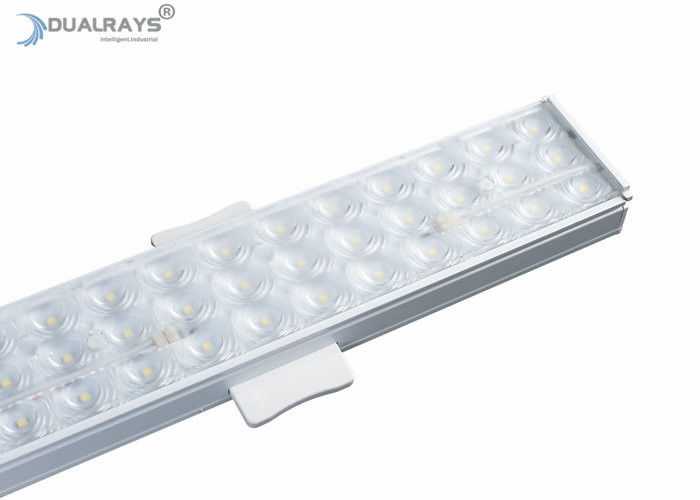

55W Universal LED Linear light Module Easy Exchaging Solution
| Item | Symbol | Description |
| Length | mm | 1430 |
| Color | / | White RAL 9003 |
| Efficiency | LPW | 150 |
| Colo Temperature | CCT/K | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 6000±200K |
| Beam Angle | Degree | 30°/60°/90°/120°/Double Asy 25°/Single Asy 25° |
| AC Input Vol | V | AC220-240V/DC180-264V |
| Output Vol | V | DC32V |
| Power Factor | PF | PF>0.95 |
| Lumen Maintenance @ 6000 hrs | Hours | >80% |
| Switching Cycle before Failure | Times | 100,000 |
| Life Span | Hours | 50,000 |
| Warranty | Years | 5 years |
| Operation Temperature | ℃ | -40 ~ +55℃ |
| Storage Temperature | ℃ | -40 ~ +85℃ |
Feature
a. DUALRAYS easy exchanging LED linear light module is very simple solution for fluoresent tube replacement.
b. Private Mold for PMMA Extrusion lens,much more durable and elegant normal PC Injection lens in the market;
c. This model was used in Germany replacement;
d. Labor cost saving at least 50%;
e. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;
Advantage
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* Supply different version with different configurations for our customers.
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Contact Person: Mr. David Lau
Tel: 86-18620309436
Fax: 86-755-61641072
