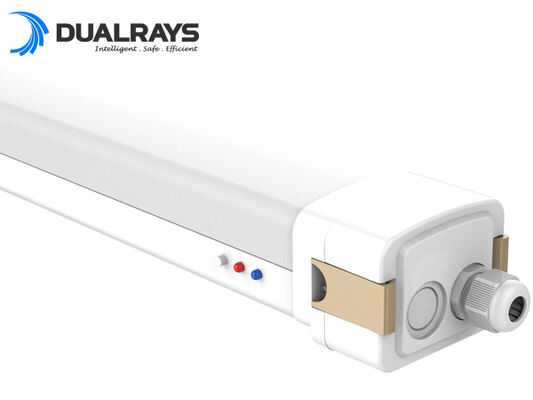

Name: Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: D5
Price: 32.31 USD
Availability: InStock

Home Products LED Moisture-proof Lamp

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	D5

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	32.31~34.28USD/pcs
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	150W	Driver:	PHILIPS / TRIDONIC /BOKE Non-SELV Driver
Luminaire Efficiency:	160lm/W	Average Luminaire Useful Lifetime:	62.000 Hours (L80B10)
Main Voltage:	220~240VAC/ 50/60Hz, 180-264VDC	Various Intelligent Control:	1-10V, DALI, Motion Sensor,Daylight Sensor,Zigbee And Emergency
Cable Gland:	M20 Cable Gland (Nylon Or SS304/316 Cable Gland Optional)	Lifespan:	50000 Hours
Glow Wire:	850°C (Under 30s)	Surge Protection:	20KV Meanwell Optional
Operating Temperature:	-20°C To 45°C	Installation Type:	Surface Mounted/Wall Mounted
Applications:	Sports Ground/Exterior Square, Garden...	Ip Grade:	IP66
Lumen Output:	60.000lm±5%	Chips:	Lumileds 3030
Wattage:	20W,40W,50W	Color Index:	>83Ra(>70Ra)
Power Efficiency:	92%	Color Temperature:	3000K/4000K/6000K
Life Span:	50,000h
Highlight:	explosion proof led lights , vapor proof led light

Dualrays D5 Series 5ft 60W SMD2835 LED Tri Proof Light 5ft 80W 160LmW 5 Years Warranty

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 0

Dualrays D5 Series 5ft 60W LED Tri Proof Light-- Detailed Product Description

Model No.:	DR-TPL060-EG52	Life Span:	50,000hrs
Power:	60W	Protection:	IP66, IK10
Energy efficient:	160 lm/w	Warranty:	5 Years
Lumin Output/lm	9,600±5%	Material	Al+PC

Dualrays D5 Series 5ft 60W LED Tri Proof Light--Features

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs, up to 160 lm/w energy efficient;

> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;

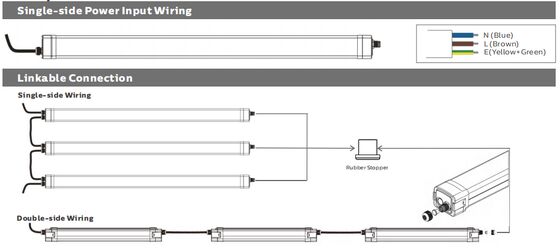

> Single or Double wiring;

> IP65/IP66 and IK10 for all industrial areas of application;

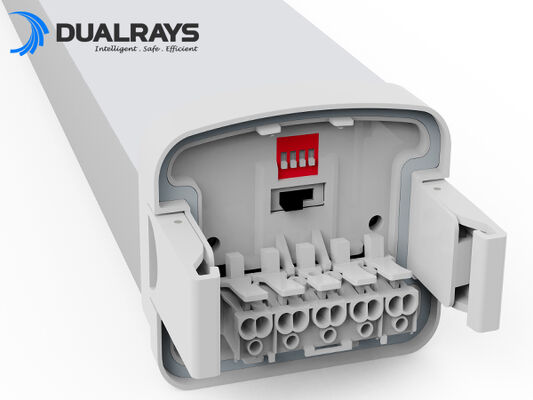

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;

> Multiple Link with double wiring;

> Completely mercury free and no UV or IR;

> 5 years warranty;

Dualrays D5 Series 5ft 60W LED Tri Proof Light--Features

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

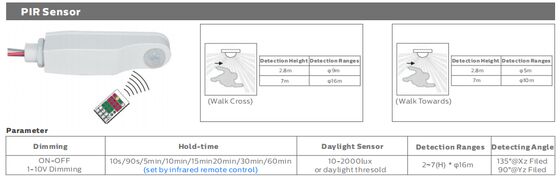

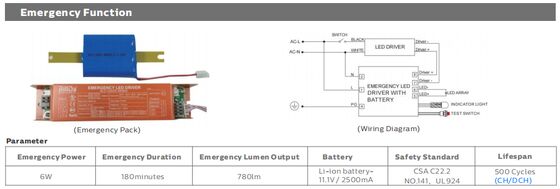

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.

> Customized for special projects acceptable.

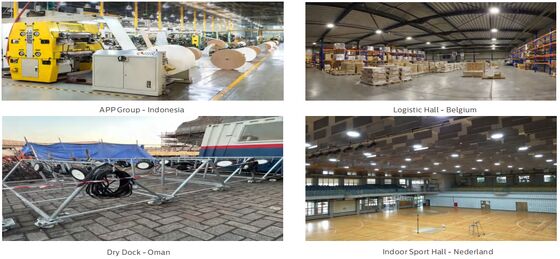

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

DALI Device
Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 12

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 25

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 26

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 27

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 28

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 29

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 30

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 31

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 32

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 33

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 34

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 35

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 36

Dualrays D5 Series 5ft 60W High Output LED Tube Light No Flicker PFC Commercial LED Lighting 37
