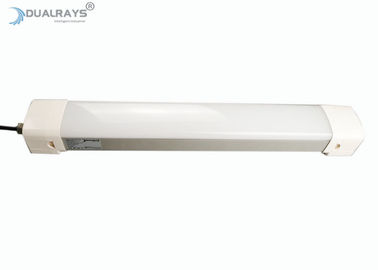

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5

  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
  • Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5
Product Details:
Place of Origin: China
Brand Name: DUALRAYS
Certification: CE,RoHS,TUV/GS,LM79,LM80
Model Number: DR-TPL060-EG
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Neutral Package,color box package,12PCS/CTN,L1330xW315xH310mm
Delivery Time: 5-15 business days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000PCS/Month
Contact Now
Detailed Product Description
Rated Power: 60W LEDs Typ: SMD2835
Luminaire Efficiency: 160lm/W Luminous Flux: 12,800±5%
Color Index: >80Ra IP Rating: IP65
AC Input Vol: AC200~240V 50/60Hz Power Factor: PF>0.9
Lumen Maintenance @ 6000 Hrs: >90% Switching Cycle Before Failure: 100,000
Warranty: 5 Years
High Light:

led weatherproof batten

,

warm white led batten

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot




Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 1

Dualrays D5 Serires 60W LED Tri Proof Light-- Detailed Product Description

Model No.: D5 Series Beam Angle: 120°
Power: 60W Protection: IP66,IK10
Power Supply Boke Warranty: 5 Years
Lumin Output/lm 9,600±5% Material Al+PC

Dualrays D5 Serires 60W LED Tri Proof Light--Features
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs, up to 160 lm/w energy efficient;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> Single or Double wiring;
> IP65/IP66 and IK10 for all industrial areas of application;

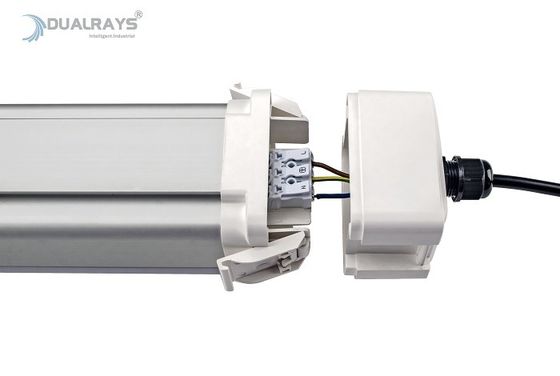

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;
> Multiple Link with double wiring;
> Completely mercury free and no UV or IR;
> L80/B10 @ 50.000h;
> 5 years warranty;

Dualrays D5 Serires 60W LED Tri Proof Light-- Options
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

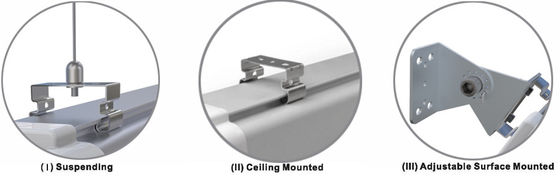

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.
> Customized supported for special projects.

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 2
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 3
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 4

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 5
Character/Length
2ft
3ft
4ft
5ft
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 6
A
600mm
900mm
1200mm
1500mm
B
90mm
90mm
90mm
90mm
C
74mm
74mm
74mm
74mm

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 7
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 8
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 9
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 10
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 11
DALI Device
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 12

DALI Intelligent Control Diagram
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 13 Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 14


DALI Intelligent Control Operator Interface
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 15

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 16
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 17


Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 18

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 19
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 20
Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 21

Linkable LED Tri Proof Light 60W Europe Warehouse Lighting IP66 SMD2835 DUALRAYS D5 22
