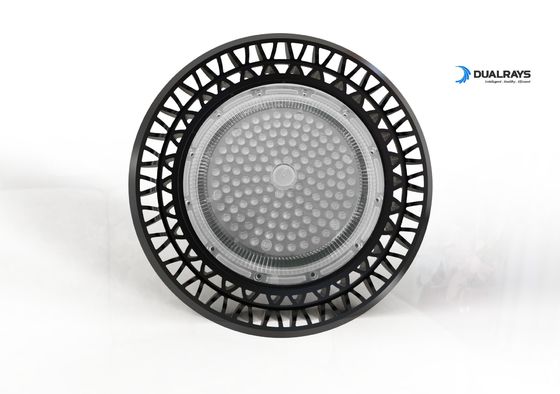

Name: Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB100-EGXP
Availability: InStock

Home Products HB2.5 UFO LED High Bay

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	100W	LEDs Type:	SMD3030
Luminaire Efficiency:	140PLW	Color Temperature:	WW:3000K NW: 4000K DW:5000K CW: 5700±200K
CRI:	>80Ra	Factory Power:	>0.95
Highlight:	led flat panel light fixture , high bay led shop lights

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle

UFO LED High Bay Features:

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

LED Driver	Meanwell ELG
CCT/K	3000K/4000K/5000K/5700K/6500K
SCDM	<5
CRI(Ra)	>80Ra(>70Ra for option)
Input Wattage	AC 100~277V 50/60Hz
IP Rating	IP65
System Efficiency/LPW	140LPW
IK Rating	IK08
Lifespan Time	>50000hours
Operation Temp℃	-40℃~60℃
Sensor (Optional)	Daylights Sensor,Pluggable Motion Sensor
Systems Wattage	100W

Options:

> Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Controls and Dimming

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 0

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 2

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 14

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 16

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 17

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 18

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 19

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 20

1.Why we use the high power LED?

RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.

2.How to explain “illuminance“?

RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.

3.What’s efficacy about the light ?

RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).

4.How important is IP ?

RE: Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.

5.What’s LED Chips ?

RE: The light producing semiconductor device that may or may not be incorporated into an LED.

Factory 100W UFO High Bay Light Adjustable Ripple Lens Optic With 120 Degree Beam Angle 22
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
