D4 LED Moisture-proof Lamp with Up to 160 LPW with Ready 4 Emergency SDCM<3 220~240VAC/ 50/60Hz, 180-264VDC Input Voltage

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	D4

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS/1CTN
Price:	Please inquiry for the latest price
Packaging Details:	Netural Package,OEM/ODM/OBM Package Available,9PCS/CTN
Delivery Time:	5-15 business days
Payment Terms:	T/T, L/C, Western Union,Paypal
Supply Ability:	50,000pcs/month

Contact Now

Detailed Product Description

Power Factor:	>0.97	CRI:	>80Ra As Standard(>90Ra Optional)
Efficiency:	130/160LPW Optional	CCT:	3 CCT Optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K)
Material:	PC	Group Control:	3-Phase Changing Single Phase (L/N/E) Or Three Phase (L1/L2/L3/N/FG) Optional
Installation:	Ceiling Mounted \| Suspension Rotatable \| Wall Mounted	Cable Gland:	M20 Cable Gland (Nylon Or SS304/316 Cable Gland Optional)
Global Certificate:	ENEC \| CE \| RoHS \| D-mark \| KEMA-KEUR Listed, SAA \| C-Tick \| RCM \| CB \| ETL/CETL \| DLC Premium
Highlight:	explosion proof led lights , vapor proof led light

D4 LED Moisture-proof Lamp with Up to 160 LPW with Ready 4 Emergency SDCM<3 220~240VAC/ 50/60Hz, 180-264VDC Input Voltage

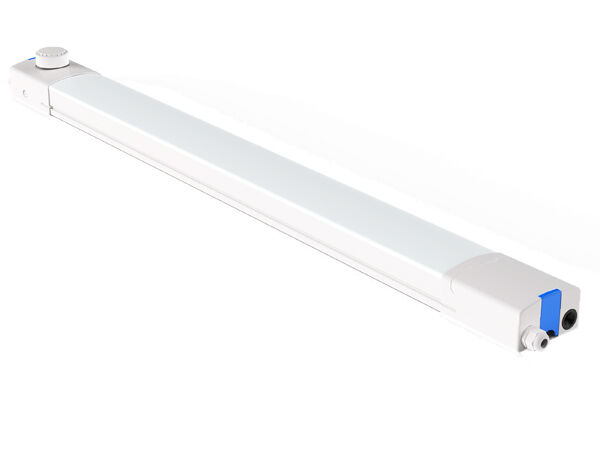

The latest design concept of D4 LED Weather-proof light is ready 4smart and emergency, particularly resistant and moisture-proof PC for diffuser,robust(IP65/IK10 protection level) and excellent heat dissipation, most uniform illumination and much wider illuminate surface, the
innovative quick snap end-cap design makes it extremely fast installation and maintenance, which can save you 40% labor cost, meanwhile, 3*1.5/2.5mm2 or 5*1.5/2.5mm2 cable through 3 phase selectable design make the linkable connection more powerful and resistant, advanced

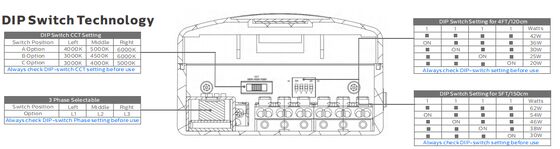

technology DIP switch power & CCT,means 1SKU=48 SKU, friendly for stocking and cash flow optimization,smart plug and play motion sensor and emergency kit can be placed at any time,up to 160LPW efficiency,quite efficient for energy saving,it is an ideal solution to a lot of
applications such as parking garage lots, factory, low-racked warehouses etc.

* High Brightness SAN'AN SMD2835 LEDs, TRIDONIC/PHILIPS non-SELV High PF Flicker-free Driver DIP Switch Power Adjustment Optional;;

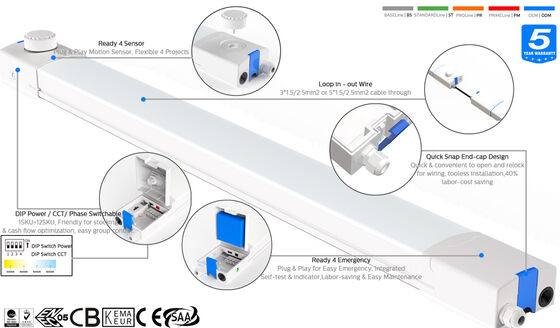

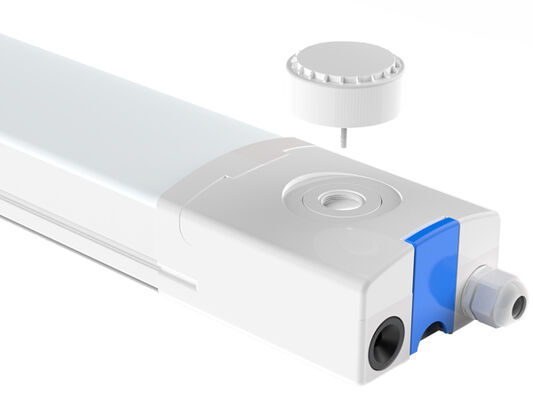

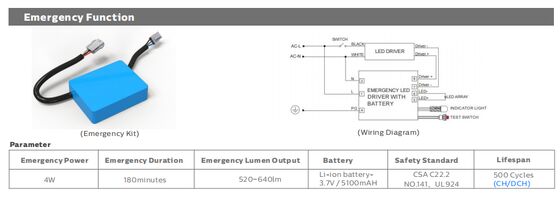

* Ready for Motion Sensor & Emergency, Plug & Play Sensor & Emergency;

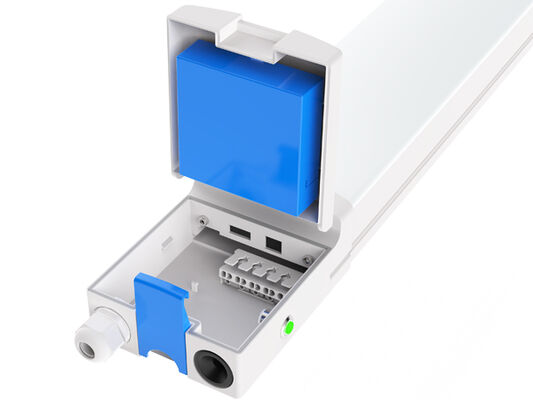

* Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;

* IP65 / IK10 Protection;
* 120° beam angle;

* Single or Double Wiring Linkable Optional;
* Multiple Installations: Suspension, Wall Mounting;

* Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency ;

* 3 CCT optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K);

* Single Phase (L/N/E) or Three Phase (L1/L2/L3/N/FG) Optional;

* No UV or IR and completely mercury free;

* L80/B10 @ 61.000h;
* Customized supported for special projects;

Options:

> Driver: PHILIPS / TRIDONIC /BOKE Non-SELV driver with DIP technology optional.

> 3 CCT optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K);

> DIP Switchable Power ;

> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

> Installation: Ceiling mounted | Suspension | Rotatable Wall Mounted;

> Replacement for fluorescent NCF;

> Workshops and warehouse;

> Garage and car parks;

> Sport facility;

> Corridor/Gallery/Corridor;

> Outdoor & Indoor Locations;

Length/mm Size A / mm Size B / mm Size C / mm Size C / mm

600 2ft/605 620 102 54

1200 4ft/1205 1220 102 54

1500 5ft/1505 1520 102 54

General System

Housing Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10)

Diffuser Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10)

Housing Color: White (RAL9016), Other colors optional

Sealing Gaskets: Silicone foam

LEDs Thermal Dissipation: Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste

Anti-condensation: Pressure-balancing valve to ensure moisture release, avoid condensation and maintain the luminaire IP tightness

Finish: Electrostatically sprayed and sublimated in the oven. Resistant to corrosion

Recommended Mounted Height: 2 - 8 meters

Maintenance: Quick snap end-cap for easy installation

Driver: Constant current with optional power adjustable via DIP switch, embedded in luminaire, pre-wired

IP (Ingress Protection Rating): IP65

IK (Impact Resistance): IK10

Protective Class: Class Ⅰ

Glow Wire: 850°C (Under 30s)

Cable Gland: M20 cable gland (Nylon)

Installation: Ceiling mounted | Suspension | Rotatable Wall Mounted

Smart Function: PIR Sensor | Microwave Sensor | Emergency

Electrical System

Through-wiring: 3*1.5mm2 | 5*1.5mm2 | 3*2.5mm2 | 5*2.5mm2 wires through for option

Main Voltage: 220~240VAC/ 50/60Hz, 180-264VDC

Power Factor (PF): ≥0.96

Total Harmonic Distortion (THD): ＜10%

Output Type: Non-SELV(non-isolated)

Flicker Factor: ＜1%

Stroboscopic Visibility Measure (SVM): ＜0.4

Perceptibility of Stroboscopic Effects (Pst): ＜1

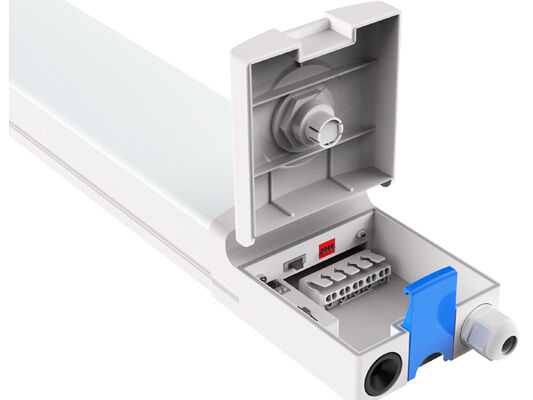

Terminal Connection: Quick snap end-cap for easy installation, sliding gear tray for easy replacement and maintenance optional

Luminaires Power B10A B16A C10A C16A

20W 70 110 98 158

30W 46 74 66 104

Module via LSS Circuit Breakers 40W 35 55 49 78

50W 28 44 39 62

60W 23 37 34 52

Photometry System

LEDs: SMD2835 (1W)

CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K)

3 CCT optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K for choice)

CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available)

Photobiological Safety: RG0 (exempt of risk)

EEC (Energy Effciency Class): A++

SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional)

UGR (4H, 8H) : 24.9 (Cross)

23.4 (Longitudinal)

Beam Angle: 120°

Average Luminaire Useful Lifetime: 61.000 hours (L80B10)

Lumen Maintenance at e.o.l. >70%

Luminous Efficacy: 130LPW (PROLine) | 160LPW (PRIMELine) Optional

Length 2FT/600mm 4FT/1200mm 5FT/1500mm

Rated Power: 20W 30W 30W 40W 42W DIP(20~42W) 40W 60W 62W DIP(30~62W)

(PRO) 2.600lm 3.900lm 3.900lm 5.200lm Max. 5.460lm 5.200lm 7.800lm Max. 8.060lm

Lumens Delivered
@ 5000K, CRl>80 (PRIME) 3.200lm 4.800lm 4.800lm 6.400lm Max. 6.720lm 6.400lm 9.600lm Max. 9.920lm

Operation Condition

Operation Temperature / Humidity: -20~ +60℃ (-4°F ~ 140°F) / 5~85% RH, not condensed

Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed

Average LED Useful Time L90B10: ≥0.96

Rated Nominal Lifetime (Tp <70℃): Up to 100,000H

Driver MTBF: 500.000H,MIL-HDBK-217F(25℃)

Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes

Acoustic Noise: ＜25dB (30cm disstance, Normal operation)

Guarantee: 5 Years (Extensible up to 7 years)

Certifications

Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471

EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384

Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11

* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

Linkable Connection:

Length/mm Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton

600 670x106x65mm 685x333x220mm 9PCS 1.6Kg 16.9Kg

1200 1270x106x65mm 1385x333x220mm 9PCS 2.4Kg 23.9Kg

1500 1570x106x65mm 1685x333x220mm 9PCS 3.4Kg 33.6Kg

Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!

Statement:
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.

Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without the official confirmation from the manufacturer. If any misapplication happens, the warranty policy is no longer guaranteed.

D4 LED Moisture-proof Lamp with Up to 160 LPW with Ready 4 Emergency SDCM<3 220~240VAC/ 50/60Hz, 180-264VDC Input Voltage 29

* Professional team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

D4 LED Moisture-proof Lamp with Up to 160 LPW with Ready 4 Emergency SDCM<3 220~240VAC/ 50/60Hz, 180-264VDC Input Voltage 30

D4 LED Moisture-proof Lamp with Up to 160 LPW with Ready 4 Emergency SDCM<3 220~240VAC/ 50/60Hz, 180-264VDC Input Voltage 31

D4 LED Moisture-proof Lamp with Up to 160 LPW with Ready 4 Emergency SDCM<3 220~240VAC/ 50/60Hz, 180-264VDC Input Voltage 32

Shipment:

D4 LED Moisture-proof Lamp with Up to 160 LPW with Ready 4 Emergency SDCM<3 220~240VAC/ 50/60Hz, 180-264VDC Input Voltage 36
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

D4 LED Moisture-proof Lamp with Up to 160 LPW with Ready 4 Emergency SDCM<3 220~240VAC/ 50/60Hz, 180-264VDC Input Voltage 37 Q1: What is the warranty for the TB7 LED Tubular light?

RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q3: What is CRI?

RE: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly >80Ra,and 90Ra with higher cost.

Q4: Can I only buy the housing separately?

RE:Sorry,we only supply the whole luminaire fixture,but SKD/CKD can be accepted.

Q5:Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q6:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q7: Dimming functions?

RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q8:What are the applications of your TB7 LED Tubular light?
RE:Our higbay light can be applied in the following occassions:

> Replacement for fluorescent NCF;

> Food Processing Plant;

> Chemical Facilities;

> Animal Stable Warehouse;

> Car Washing Place;

> Outdoor & Indoor Locations;
