| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL500-EGXX |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union, paypal |
| Supply Ability: | 50000PCS/Month |
| Material: | Aluminum+PC | LED Driver: | SOSEN / Meanwell ELG Optional |
|---|---|---|---|
| Dimming(Optional): | 1-10V, DALI,PWM,Zigbee | Lifespan/hrs: | 70.000 Hrs (Ta=30℃@L70) |
| CCT/K: | 5000K For Standard (3000K/4000K/5700K/6500K Optional) | CRI/Ra: | >70Ra (>80Ra For Option) |
| IP Rating: | IP66 | IK Level: | IK08 |

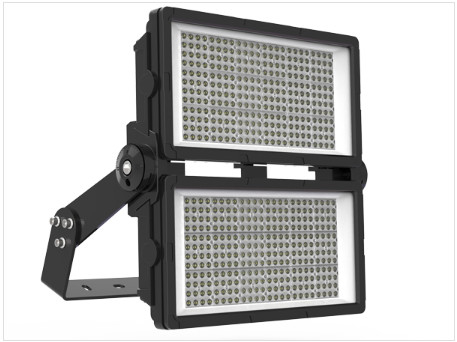

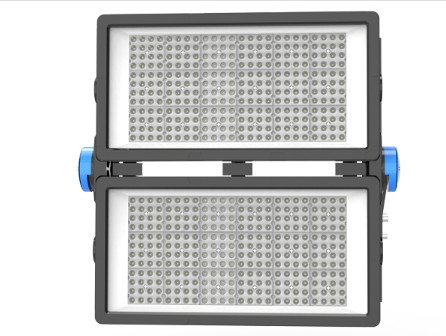

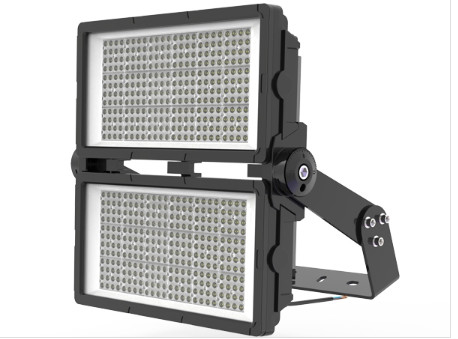

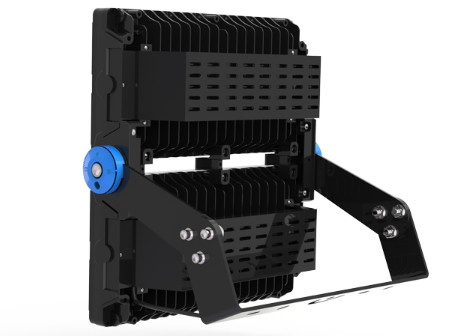

F5 LED Sports Ground Floodlights With Meanwell Driver Customized Supported For Special Projects
| Model No. | DR-FL250-EGXX | DR-FL500-EGXX | DR-FL750-EGXX | DR-FL1000-EGXX | DR-FL1250-EGXX | DR-FL1500-EGXX |
| System Watts/W | 250W | 500W | 750W | 1000W | 1250W |
1500W
|
| System Efficiency/LPW | 130~140LPW / 150~160LPW Optional | |||||
| Lumen Output (Max) /lm | 40.000±5% | 80.000±5% | 120.000±5% | 160.000±5% | 200.000±5% | 240.000±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | |||||
| LEDs Light Source | SMD3030 / SMD5050 Optional | |||||
| SDCM | <5 | |||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||||
| CRI/Ra | >70Ra (>80Ra for Option) | |||||
| Power Factor | >0.95 | |||||
| THD | <10% | |||||
| Beam Angle(Optional) | Symmetrical 25°/55°/90°/120°,Asymmetrical 80*145°/45*157°/105*157°/160*160° Optional | |||||
| UGR | <25 | |||||
| Surge Protection | 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||||
| LED Driver | SOSEN / Meanwell ELG Optional | |||||
| IP Rating | IP66 | |||||
| Dimming(Optional) | 1-10V, DALI,PWM,Zigbee | |||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||||
| Start Time | 0.5s | |||||
| Protection Class | ClassⅠ | |||||
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional | |||||
| Material | Aluminum+PC | |||||
| Lifespan/hrs |
70.000 Hrs (Ta=30℃@L70) |
|||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | |||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||||
| Switching Cycles | 720,000 Times | |||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||||
Dimension:
Optical & photometric:
Installation:
Detail demo:
Shipment&package:
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-FL250-EGXX
|
7.1
|
450*255*170
|
8.2
|
1PCS/CTN
|
|
DR-FL500-EGXX
|
14.3
|
495*465*170
|
15.8
|
1PCS/CTN
|
|
DR-FL750-EGXX
|
22.1
|
720*465*170
|
24.6
|
1PCS/CTN
|
|
DR-FL1000-EGXX
|
30.2
|
945*465*170
|
32.8
|
1PCS/CTN
|
|
DR-FL1250-EGXX
|
35.3
|
1170*465*170
|
38.5
|
1PCS/CTN
|
|
DR-FL1500-EGXX
|
38.2
|
720*930*170
|
41.6
|
1PCS/CTN
|
