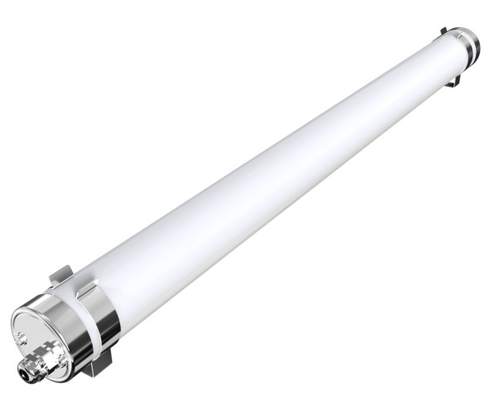

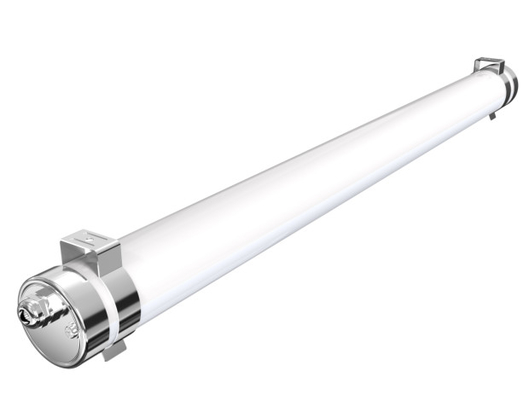

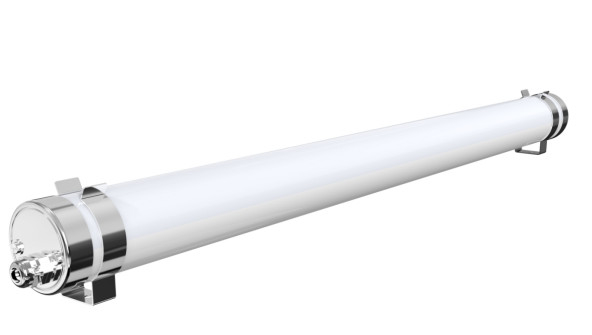

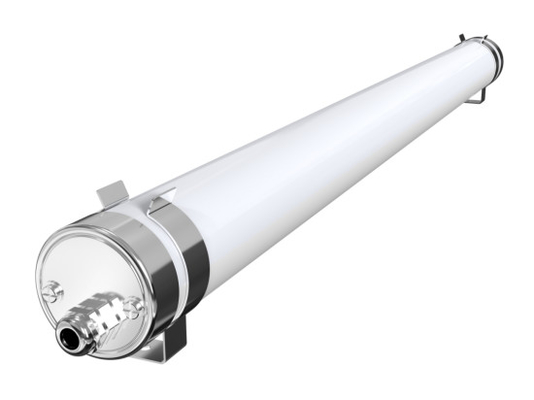

Dualrays D6 LED Tri Proof Light Flicker Free Dimmable 40W IP69K IK10 160lm/w with CE

Efficiency:
BSELine:

PROLine: 130LPW

PRIMELine: 160LPW

Features:

> High Brightness SAN‘AN SMD2835 LEDs, BOKE High PF Flicker-free Driver,DIP Switch Power Adjustment

Optional;

> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;

> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;

> 120°beam angle;

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;

> Multiple Installations: Suspension, Wall Mounting;

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor;

> 304/316 Stainless Steel End Cap & Bracket, corrosion-proof;

> No UV or IR and completely mercury free;

> L70/B20 @ 54.000h;



Options:

> Driver: BOKE fixed power driver,DIP switch power adjustable driver;

> Controls and Dimming: 1-10V Dimming / DALI / Motion Sensor,Daylight Sensor;

> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;

> Installation : Suspension, Wall Mounting;

> Wiring: Single or double wiring;



> Replacement for fluorescent NCF;

> Cattle farm;

> Pig farm;

> Industrial and Agricultural applications;



Character/Length	2ft	4ft	5ft
A	525.9mm	1125.9mm	1425.9mm
B	590m	1190mm	1490mm
C	78.2mm	78.2mm	78.2mm

DALI Device


DALI Intelligent Control Diagram


DALI Intelligent Control Operator Interface



Packaging Information

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-TPL020-FG2XP	12.5	670*440*20	13.2	9PCS/CTN
DR-TPL030-FG4XP	15.8	1270*360*200	17.5	9PCS/CTN
DR-TPL030-FG4XP	16.1	1270*360*200	18.3	9PCS/CTN
DR-TPL040-FG5XP	19.1	1570*360*200	20.6	9PCS/CTN
DR-TPL050-FG5XP	19.5	1570*360*200	21.4	9PCS/CTN

Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
