| Place of Origin: | China,shenzhen |
| Brand Name: | DUALRAYS |
| Certification: | CE |
| Model Number: | D3 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1 |
| Packaging Details: | Cartons |
| Delivery Time: | 7 |
| Payment Terms: | T/T |
| Supply Ability: | 99999 |
| Item Type: | LED Tri Proof Light | Warranty(years): | 5 |
|---|---|---|---|
| Color Temperature(cct): | 2700K-6500K | Beam Angle: | 120 Degree |
| High Light: | DUALRAYS Tri Proof LED Light,120 Degree Tri Proof LED Light,20W Ip65 Triproof Led Light |
||

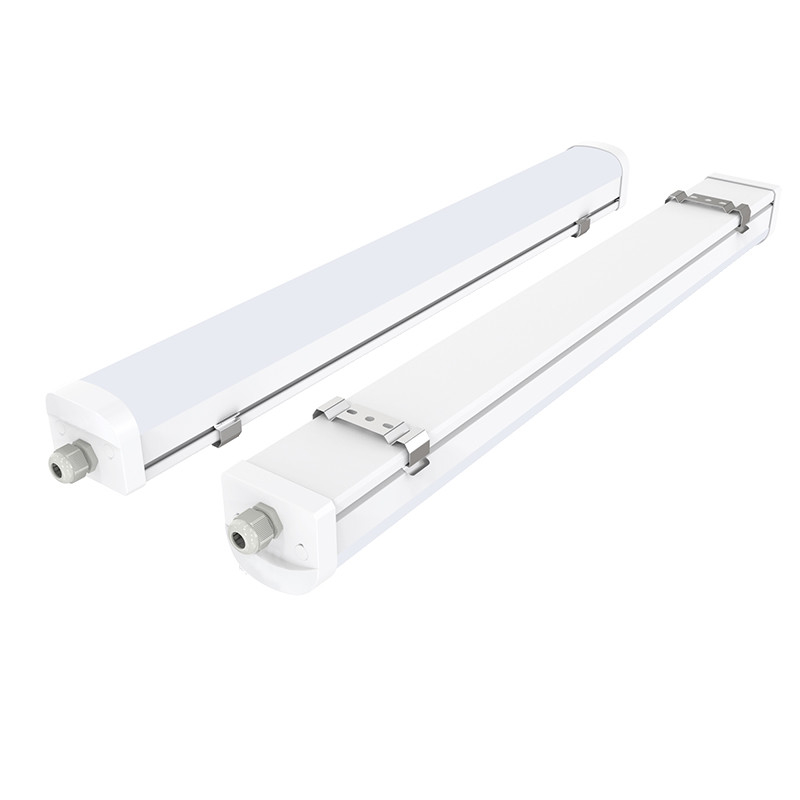

DUALRAYS IP65 2ft 4ft 5ft Tri Proof LED Light 20W 30W 40W 50W For Warehouse
General Characteristics:
1. Genuine IP65 Weatherproof / Damp proof light Fixture. Automatic Electric-Field Induced Hot-melt welding machine was used to seal the endcap to stop water intrusion.

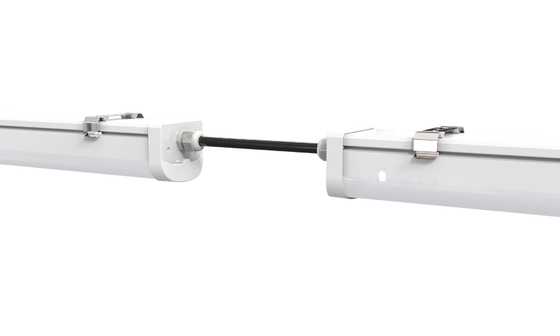

2. Tool-less fast installation & connection. Designed to have openable end-caps and quick electrical connectors. Saving the installer a lot of time and improving installation efficiency greatly.
3. Large illuminating area for the best light coverage and visual comfort.
4. 130lm/w and 160lm/w optional, flicker free, IP65 waterproof and optionally for interconnectable thru wiring, multi-lumen, multi-CCT.
5. Spacious chamber supports higher operating ambient temperature, and optionally upgradable for DALI, Sensor and Emergency Gear.
|
Character/Length
|
2ft
|
4ft
|
5ft
|
 |
|
A
|
602mm
|
1202mm
|
1502mm
|
|
|
B
|
638mm
|
1238mm
|
1538mm
|
|
|
C
|
63mm
|
63mm
|
63mm
|
|
|
D
|
73mm
|
73mm
|
73mm
|
Features:
Input Voltage: AC200~240V 50/60Hz(AC100~277V 50/60Hz Optional)
Material: PC
CCT: WW: 3000±200K NW:4000±200K DW: 5000±200K CW: 5700±200K CW: 6500±200K
CRI: >80Ra (>70Ra Optional)
Beam Angle: 120°
Features: IP65 / IK08 Protection
Lifespan: L70/B20 @ 50.000h
Driver: DUALRAYS High PF Flicker-free Driver
Operation Temp: -40°C to + 50°C(-40°F to 122°F)
Installation:Suspension/Ceiling Mounting, Single/ Double Wiring
Optional: 1-10V Dimming/Sensor/Emergency/Plug
Report: LM80/TM-21/LM79/TM21/ISTMT/LCP/IES/LDT/CE(EMC+LVD),RoHS,ENEC ,SAA,RCM
Application:
Specification:
DUALRAYS D3 LED Triproof Light Spe.pdf
|
Model No.
|
DR-TP020-CG2XPX | DR-TP030-CG4XPX | DR-TP040-CG4XPX | DR-TP040-CG5XPX | DR-TP050-CG5XPX |
|
System Watts/W
|
20W | 30W | 40W | 40W |
50W
|
|
System Efficiency/LPW
|
130LPW / 160LPW Optioanl | ||||
|
Lumen Output/lm
|
2.600/3.200±5% | 3.900/4.800±5% | 5.200/6.400±5% | 5.200/6.400±5% | 6.500/8.000±5% |
|
Rated Input Voltage/V
|
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
|
LEDs Light Source
|
SMD2835 | ||||
|
SDCM
|
<6 | ||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
|
CRI/Ra
|
>80Ra (>70Ra for Option) | ||||
|
Power Factor
|
>0.91 | ||||
|
THD
|
<10% | ||||
|
Beam Angle(Optional)
|
120° | ||||
|
UGR
|
<22 | ||||
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | ||||
| IP Rating | IP65 | ||||
|
IK Level
|
IK08 | ||||
|
Dimming(Optional)
|
1-10V, DALI,Zigbee | ||||
|
Sensor(Optional)
|
Daylight sensor/Microwave Sensor | ||||
|
Emergency(Optional)
|
5W@3 Hours or Customized | ||||
|
Protection Class
|
ClassⅠ | ||||
|
Finishing Color(Optional)
|
White RAL9016 Optional | ||||
|
Material
|
PC+PC | ||||
|
Lifespan/hrs
|
54.000 Hrs (Ta=30℃@L70) | ||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | ||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | ||||
|
Installation(Optional)
|
Suspension / Ceiling Mounting Optional | ||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
