| Place of Origin: | China,shenzhen |
| Brand Name: | DUALRAYS |
| Certification: | CE |
| Model Number: | D2 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1 |
| Packaging Details: | Cartons |
| Delivery Time: | 7 |
| Payment Terms: | T/T |
| Supply Ability: | 99999 |
| Ip Rating: | IP65 | Item Type: | LED Tri Proof Light |
|---|---|---|---|
| Working Lifetime(hour): | 50000 | Input Voltage(v): | AC100-240V |
| High Light: | IP65 4ft Tri Proof Lamp,CE Approved LED Tri Proof Light,PC cover LED Tri Proof Light |
||

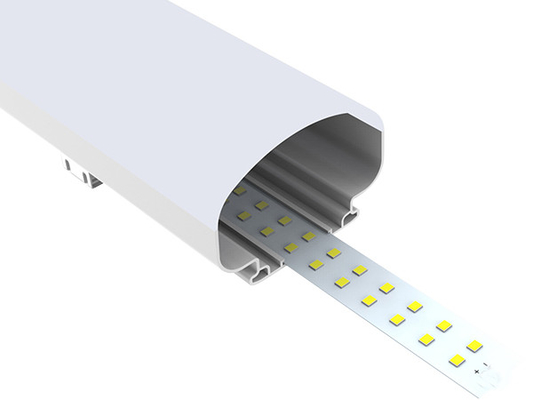

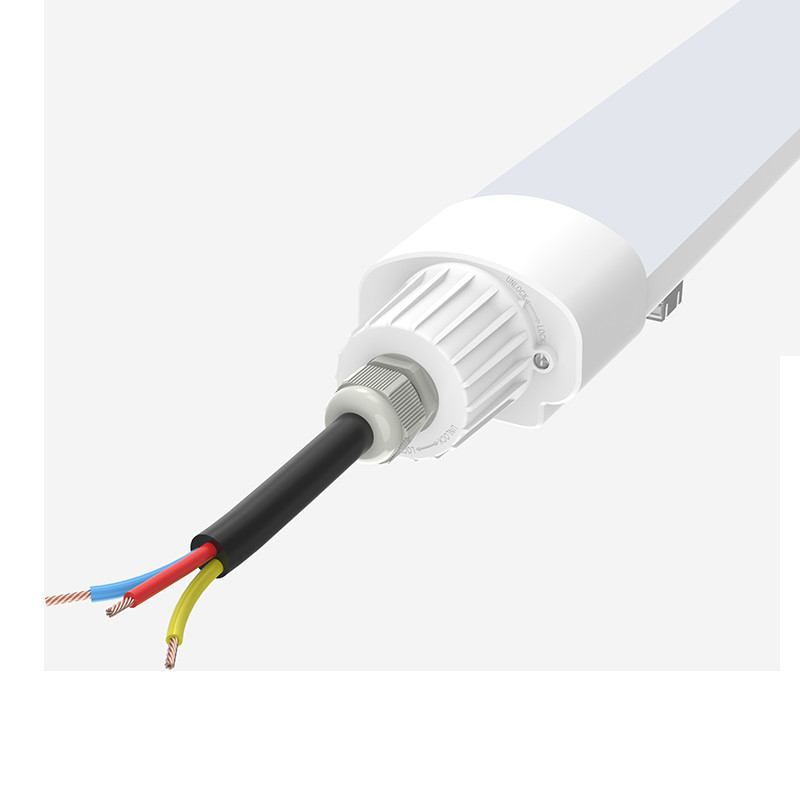

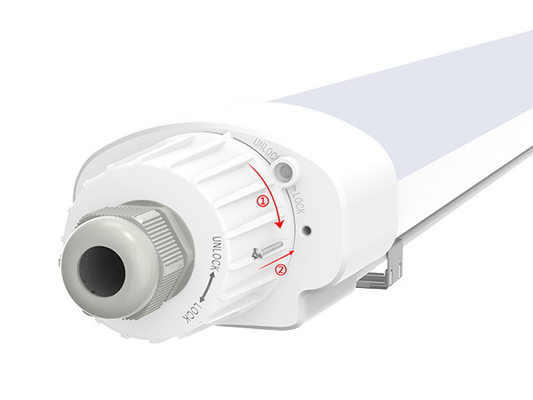

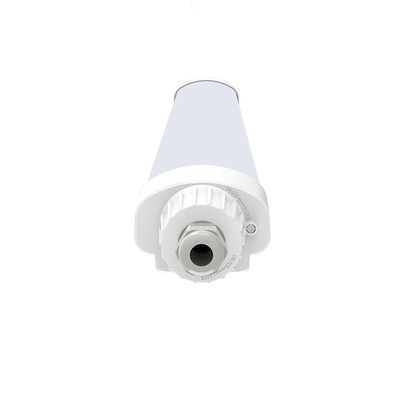

DUALRAYS Industrial LED Tri Proof light IP65 Tube Linear Hanging Light for Underground Parking Lot
General Characteristics:
1. Waterproof ceiling light using PC housing, which can provide better protection rating on water proof, dust proof, and vapor proof;
2. Integrates PC cover with light diffusing agent and colored PC housing. Housing caps sealed by silicon rubber gasket;
3. Available in 3 nominal lengths: 600mm, 1200mm, and 1500mm;
4. LED tri proof light provides a superior bright light with low energy costs;
|
Character/Length
|
2ft
|
4ft
|
5ft
|
 |
|
A
|
631mm
|
1231mm
|
1531mm
|
|
|
B
|
656mm
|
1256mm
|
1556mm
|
|
|
C
|
80mm
|
80mm
|
80mm
|
|
|
D
|
60mm
|
60mm
|
60mm
|
Features:
Input Voltage: AC200~240V 50/60Hz(AC100~277V 50/60Hz Optional)
Material: PC
CCT: WW: 3000±200K NW:4000±200K DW: 5000±200K CW: 5700±200K CW: 6500±200K
CRI: >80Ra (>70Ra Optional)
Beam Angle: 120°
Features: IP65 / IK08 Protection
Lifespan: L70/B20 @ 50.000h
Driver: DUALRAYS High PF Flicker-free Driver
Operation Temp: -40°C to + 50°C(-40°F to 122°F)
Installation:Suspension/Ceiling Mounting, Single/ Double Wiring
Optional: 1-10V Dimming/Sensor/Emergency/Plug
Report: LM80/TM-21/LM79/TM21/ISTMT/LCP/IES/LDT/CE(EMC+LVD),RoHS,ENEC ,SAA,RCM
Application:
Specification:
DUALRAYS D2 LED Triproof Light Spe.pdf
| Model No. | DR-TP020-BG2XPX | DR-TP030-BG4XPX | DR-TP040-BG4XPX | DR-TP040-BG5XPX | DR-TP050-BG5XPX |
| System Watts/W | 20W | 30W | 40W | 40W |
50W
|
| System Efficiency/LPW | 120LPW / 140LPW Optioanl | ||||
| Lumen Output/lm | 2.400/2.800±5% | 3.600/4.200±5% | 4.800/5.600±5% | 4.800/5.600±5% | 6.000/7.000±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
| LEDs Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.94 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 120° | ||||
| UGR | <22 | ||||
| LED Driver | DUALRAYS Own Developed High PF Interior Driver | ||||
| IP Rating | IP65 | ||||
| IK Level | IK08 | ||||
| Dimming(Optional) | 1-10V | ||||
| Sensor(Optional) | No | ||||
| Emergency(Optional) | No | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | White RAL9016 Optional | ||||
| Material | PC+PC | ||||
| Lifespan/hrs | 50.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
