| Place of Origin: | Shenzhen, China |
| Brand Name: | DUALRAYS(OEM available) |
| Certification: | CE, ROHS, TUV/GS, LM79, LM80 |
| Model Number: | DR-TP040-BG08 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Please inquiry for latest price |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 bussiness days |
| Payment Terms: | L/C, T/T, Western Union, paypal |
| Supply Ability: | 100000pcs/month |
| Input Voltage: | AC100-277V 50/60Hz | Power Factor: | 0.98 |
|---|---|---|---|
| Efficiency: | 120/160lm/W | IP Rating: | 66 |
| Led Source: | EPISTAR | Material: | PC |
| CCT: | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K | Liafe Spand: | >50,000 H |
| Warranty: | 5-10 Years | UGR: | <22 |

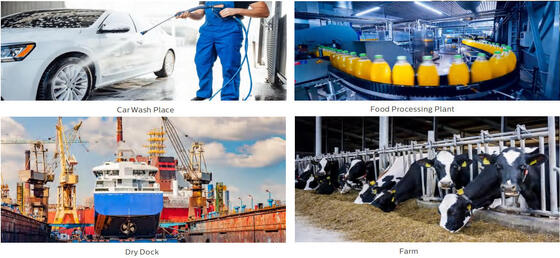

| Application: | WAREHOUSE, Supermarket, Parking Lot, Industrial, Supermarket So On | ||
| High Light: | Waterproof LED Tri Proof Lamp,IK10 LED Tri Proof Lamp,T8 LED Tube Light 4ft |
||

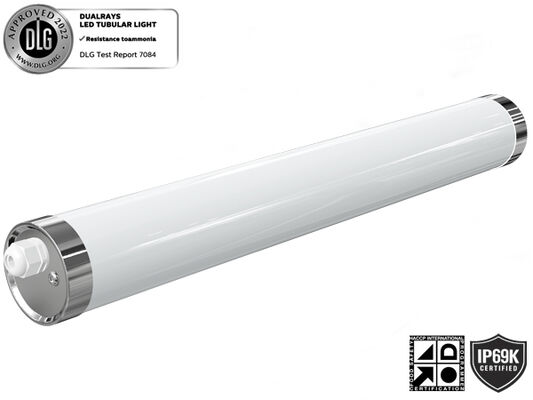

LED Tri Proof Light Waterproof D6 LED Tube Light IK06 IP69 160LPW
| Model No. | DR-TP020-FG2XP | DR-TPL030-FG4XP | DR-TPL040-FG5XP | DR-TPL050-FG5XP |
| System Watts/W | 20W | 30W | 40W | 50W |
| System Efficiency/LPW | 130LPW / 160LPW Optioanl | |||
| Lumen Output/lm | 2.600/3.200±5% | 3.900/4.800±5% | 5.200/6.400±5% | 6.500/8.000±5% |
| Rated Input Voltage/V | AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional) | |||
| LEDs Light Source | SMD2835 | |||
| SDCM | <6 | |||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
| CRI/Ra | >80Ra (>70Ra for Option) | |||
| Power Factor | >0.91 | |||
| THD | <10% | |||
| Beam Angle(Optional) | 120° | |||
| UGR | <22 | |||
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | |||
| IP Rating | IP65 | |||
| IK Level | IK08 | |||
| Dimming(Optional) | 1-10V, DALI | |||
| Protection | IP69K | |||
| Sensor(Optional) | Daylight sensor/Microwave Sensor | |||
| Protection Class | ClassⅠ | |||
| Finishing Color(Optional) | RAL9016 Matt White | |||
| Material | PC+PC (PMMA / Tempered Glass Optional) | |||
| Lifespan/hrs | 54.000 Hrs (Ta=30℃@L70) | |||
| Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) | |||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||

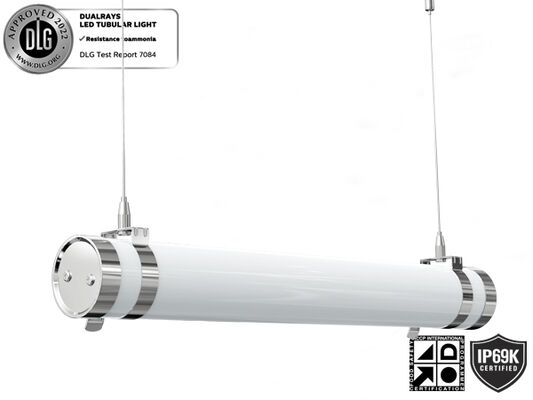

| Installation(Optional) | Suspension / Ceiling Mounting Optional | |||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
Why DUALRAYS?
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
