Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-SPL900-DGXX |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiated |
Packaging Details: | Netural Package,OEM/ODM Package Available,1PCS/CTN |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | T/T, L/C, Western Union,Paypal |
Supply Ability: | 30,000pcs/month |

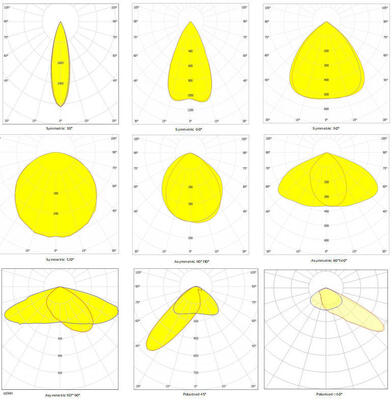

Beam Angle(Optional): | Symmetrical 25°/40°/50°/90° Beam Angle Optional | Finishing Color(Optional): | Black RAL9017(Standard) / White RAL9016 Optional |
---|---|---|---|
Lifespan/hrs: | 70.000 Hrs (Ta=30℃@L70) | Rated Input Voltage/V: | AC100~277V, 50/60Hz |
Surge Protection: | 4~6KV SPD Built In Driver,Exterior SPD 20KV Meanwell Optional | LED Driver: | Meanwell ELG/HLG |
High Light: | IK08 High Brightness LED Floodlights,900W High Brightness LED Floodlights,150LPW Led Football Floodlights |

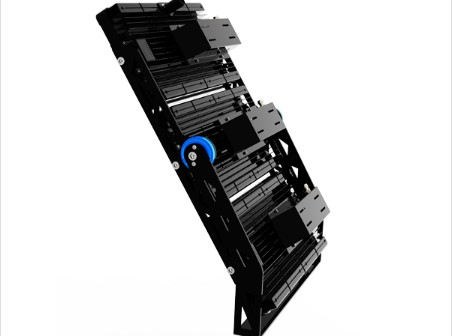

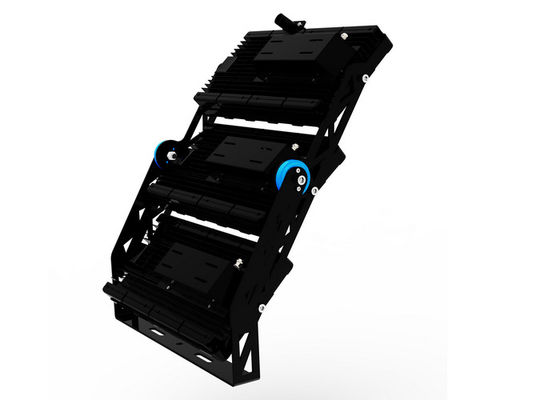

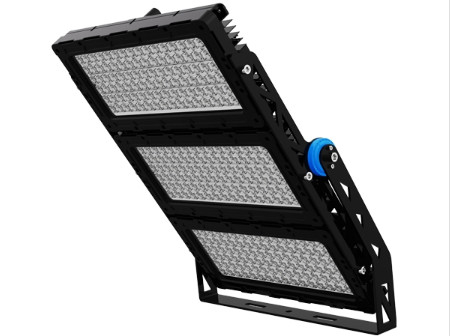

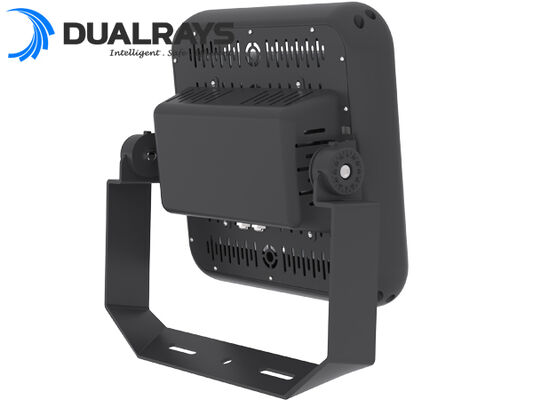

900W LED Sport Flood Light High Brightness 150LPW IP65 IK08 Protection
> Indoor sports arenas and halls
Model No.
|
DR-SPL300-DGXX | DR-SPL600-DGXX | DR-SPL900-DGXX | DR-SPL1200-DGXX | DR-SPL1500-DGXX | DR-SPL1800-DGXX |
System Watts/W
|
300W | 600W | 900W | 1200W | 1500W |
1800W
|
System Efficiency/LPW
|
130~140LPW / 150~160LPW Optional | |||||
Lumen Output (Max) /lm
|
48.000±5% | 96.000±5% | 144.000±5% | 192.000±5% | 240.000±5% | 288.000±5% |
Dimming(Optional)
|

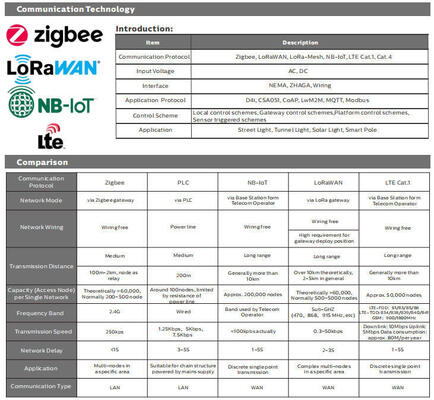

1-10V, DALI,PWM,Zigbee | |||||
Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||||
Start Time | 0.5s | |||||
Protection Class
|
ClassⅠ | |||||
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||||
Material
|
Aluminum+PC | |||||
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | |||||
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||||
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||||
Switching Cycles | 100,000 Times | |||||
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
DR-SPL300-DGXX
|
8.5
|
585*315*260
|
9.7
|
1PCS/CTN
|
DR-SPL600-DGXX
|
17.4
|
625*620*260
|
18.8
|
1PCS/CTN
|
DR-SPL900-DGXX
|
26.1
|
625*820*260
|
28.2
|
1PCS/CTN
|
DR-SPL1200-DGXX
|
34.2
|
625*1150*260
|
36.5
|
1PCS/CTN
|
DR-SPL1500-DGXX
|
39.3
|
790*1240*260
|
42.5
|
1PCS/CTN
|
DR-SPL1800-DGXX
|
42.1
|
790*1240*260
|
46.3
|
1PCS/CTN
|
Q1.What’s CCT(colour temperature) ?
RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.
Q2.What’s the fire rating categories ?
RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.
HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.
TP(b)-Slow burning rate <50mm / min for thickness <3mm.
TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
Q3.Why we use the high power LED?
RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.
Q4.What’s efficacy about the light ?
RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).
Q5.What’s LED Chips ?
RE: The light producing semiconductor device that may or may not be incorporated into an LED.
Q6.What’s LGP(PMMA)?
RE: A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.
