| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-ULM055-DE5C |
| Minimum Order Quantity: | 8PCS |
|---|---|
| Price: | Negotaited |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Dimming(Optional): | DALI/1-10V | Finishing Color(Optional): | White RAL9016 |
|---|---|---|---|
| SDCM: | <6 | CCT/K: | 3000K/4000K/5000K/5700K/6500K |
| Lifespan/hrs: | >50.000 Hrs (Ta=25 @L80) | Length: | 1430mm |
| High Light: | linear lighting systems,linear ceiling light |
||

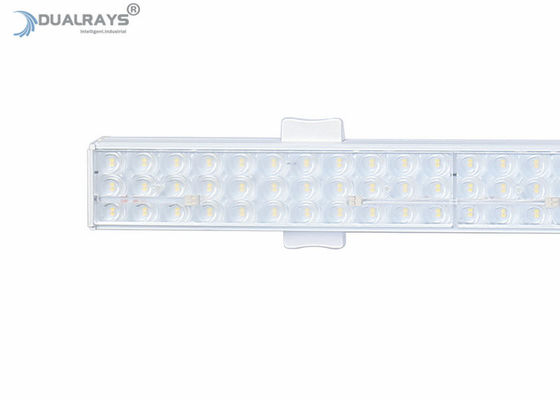

55W Fast Exchanging Linear LED Module for Warehouse Old Tube Sets Replacement
| Item | Symbol | Description |
| Model No | / | DR-ULM055-DE5C |
| Length | mm | 1430 |
| Color | / | White RAL 9003 |
| LEDs source | / | SMD2835 |
| Driver | / | BOKE |
| Output Vol | V | DC32V |
| Power Factor | PF | PF>0.95 |
| Lumen Maintenance @ 6000 hrs | Hours | >98% |
| Switching Cycle before Failure | Times | 100,000 |
| Life Span | Hours | 50,000 |
| Warranty | Years | 5 years |
Feature
a. Suitable for Trunking rails by RIDI, Trilux, , VEKO....
b. Easy solution used for replacement of T8/T5 tubes;
c. Different brand and different types of drivers for options.
d. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;
e. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;
f. Customized dimming type or emergency function,please contact us for confirmation;
Advantage
* Provide Dialux software for lighting design project for our customers;
* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
Application
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
