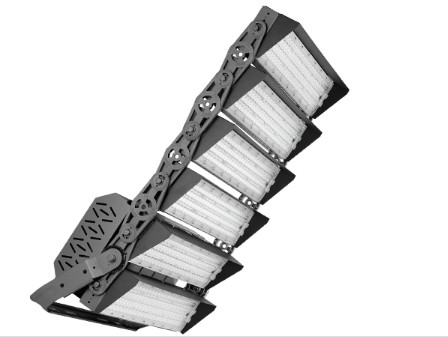

600W IP65 Aluminum PC LED Sports Ground Floodlights For led basketball court lighting Golf course Football Field

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL600-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotaited
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Power Factor:	>0.95	LEDS Chips:	LUXEON SMD3030
SDCM:	<6	CCT/K:	3000K/4000K/5000K/5700K/6500K
Wattage:	250W,500W,750W,1000W,1250W	LED Driver:	Meanwell ELG/HLG,Sosen
High Light:	industrial high bay led lighting , high mast flood lights

600W IP65 Aluminum PC LED Sports Ground Floodlights For Led Basketball Court Lighting Golf Course Football Field

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 25°/40°/50°/90°;
> Efficiency : 130~140LPW,150~160LPW

> Aiming Device: Laser Pointer;
> Light Glare: Shield;

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz
LEDs Light Source	SMD3030 / SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-DGXX	8.5	585315260	9.7	1PCS/CTN
DR-SPL600-DGXX	17.4	625620260	18.8	1PCS/CTN
DR-SPL900-DGXX	26.1	625820260	28.2	1PCS/CTN
DR-SPL1200-DGXX	34.2	6251150260	36.5	1PCS/CTN
DR-SPL1500-DGXX	39.3	7901240260	42.5	1PCS/CTN
DR-SPL1800-DGXX	42.1	7901240260	46.3	1PCS/CTN

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

200W 30000lm Modular LED Sports Ground Floodlights With Al Heat Sink Structure

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

(DIALUX Simulation)
