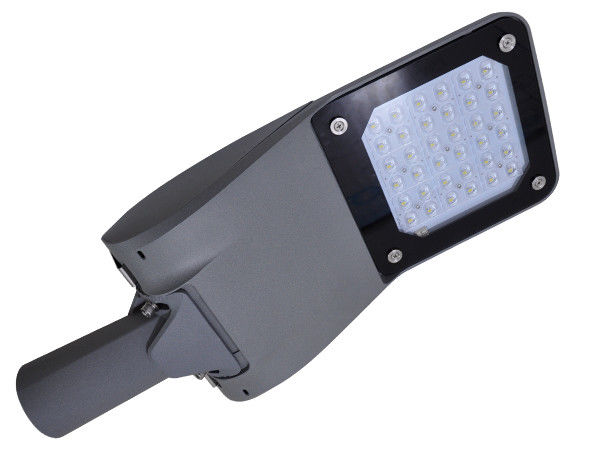

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS/OEM
Model Number:	DR-ST030-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package,color box package,1PCS/CTN,590(L)380(W)200(H)mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Certification:	CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available	Material:	Aluminum+PC+Toughened Glass
Lens:	TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)	Power Ranges:	30W/60W/90W/120W/150W/180W Optional
Surge Protection:	6~10KV SPD Driver,Exterior SPD 10KV() Or 20KV Meanwell Optional	CCT:	3000/4000/5700/6500K±200K
Finishing Color(Optional):	Black RAL9017 / White RAL9016	Lifespan/hrs:	>50.000 Hrs (Ta=30 @L70)
Guarantee:	5 Years Warranty,7 Or 10 Years Warranty Negotiated	DALI Control:	DALI Driver And DALI Centralized Manager Optional
Socket:	3-pins Photocell Controller ON/OFF,and 7-pins LORA/NEMA Socket Smart Wireless Control Available	Zigbee:	Zigbee Module (Single-lamp Controller And Centralized Manager) With Software For Option
High Light:	warm white led street lights , decorative street light

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated

Efficiency:
STANDARDLine:

PROLine: 120LPW

PRIMELine: 150LPW

Features:

* LUMILEDS LUXEON High Brightness SMD5050/3030 LEDs,SOSEN/Meanwell/Inventronics Driver;

* IP66 Protection;

* ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
* Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

* Various Intelligent Control: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee for Option;
* Customized supported for special projects;

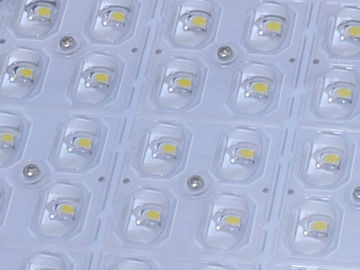

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

Options:

> Driver: ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Model No.	DR-ST030-DGX	DR-ST060-DGX	DR-ST090-DGX	DR-ST120-DGX	DR-ST150-DGX	DR-ST180-DGX
System Watts/W	30W	60W	90W	120W	150W	180W
System Efficiency/LPW	120LPW/150LPW (Optional)
Rated Input Voltage/V	AC100~277V 50/60Hz
Lumen Output/lm	3.600~4.500±5%	7.200~9.000±5%	10.800~13.500±5%	14.400~18.000±5%	18.000~22.500±5%	21.600~27.000±5%
Finishing Color(Optional)	Black RAL9017 / White RAL9016
Protection Class	ClassⅠ
LED Driver	Meanwell ELG/HLG,Sosen
Dimming(Optional)	0/1-10V/PWM/DALI/Zigbee
Beam Angle(Optional)	TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Lifespan/hrs	>50.000 Hrs (Ta=30 @L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)
Pipe Diameter	φ60mm
Certificate	CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available

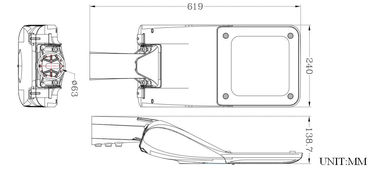

30W/60W Version
30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 5

90W,120W/150W/180W Version

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 7

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 13

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 14

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 15

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 16

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 17

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 18

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 19

30 Watt Outdoor LED Street Lights 150LPW Efficiency LUXEON SMD5050 LEDs 5 Years Warranty 7 10 Years Warranty Negotiated 20
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
