| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS/OEM |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-ST120-DG2 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated After Inquiry |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 business days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50000pcs/month |
| Material: | Aluminum+PC+Toughened Glass | Input Voltage: | AC85～277V 50/60Hz |
|---|---|---|---|
| Power Ranges: | 30W/60W/90W/120W/150W/180W | Lifespan/hrs: | >50.000 Hrs (Ta=30 @L70) |
| CCT: | 3000/4000/5700/6500K±200K | CRI: | >70Ra (>80Ra For Option) |
| Beam Angle(Optional): | TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium) | Guarantee: | 5 Years Standard / 7 To 10 Years Negotiated |
| Surge Protection: | 6~10KV SPD Driver,Exterior SPD 10KV() Or 20KV Meanwell Optional | VAS: | Customized Supported For Special Projects |
| High Light: | led cobra head street light,decorative street light |
||

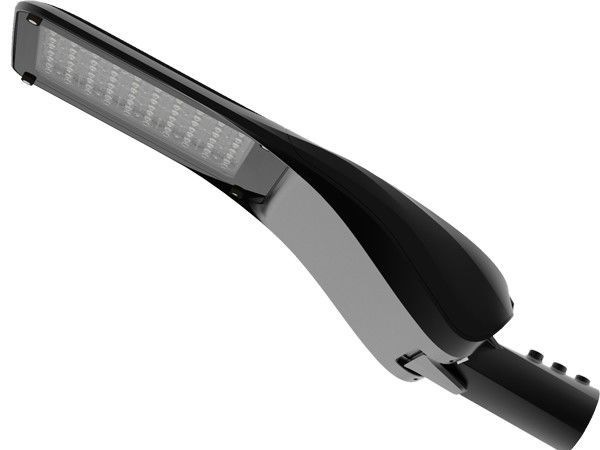

European Design IP66 LED Street Light Housing 120 Watt LED Street Lighting Zigbee or DALI Dimming
| Model No. | DR-ST030-DGX | DR-ST060-DGX | DR-ST090-DGX | DR-ST120-DGX | DR-ST150-DGX | DR-ST180-DGX |
| System Watts/W | 30W | 60W | 90W | 120W | 150W | 180W |
| System Efficiency/LPW | 120LPW/150LPW (Optional) | |||||
| Rated Input Voltage/V | AC100~277V 50/60Hz | |||||
| Lumen Output/lm | 3.600~4.500±5% | 7.200~9.000±5% | 10.800~13.500±5% | 14.400~18.000±5% | 18.000~22.500±5% | 21.600~27.000±5% |
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 | |||||
| Protection Class | ClassⅠ | |||||
| LED Driver | Meanwell ELG/HLG,Sosen | |||||
| Dimming(Optional) | 0/1-10V/PWM/DALI/Zigbee | |||||
| Beam Angle(Optional) | TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium) | |||||
| Lifespan/hrs | >50.000 Hrs (Ta=30 @L70) | |||||
| Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) | |||||
| Storage Temp/℃ | -40°C to + 65°C(-40°F to 149°F) | |||||

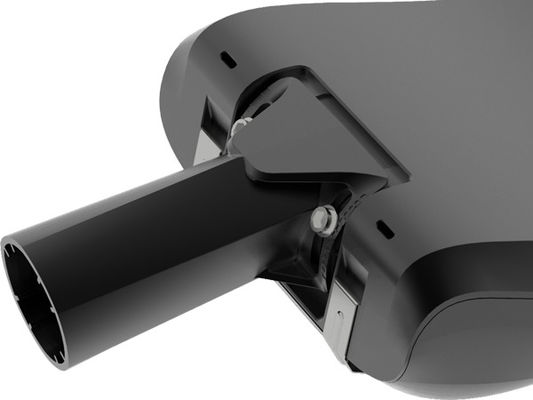

| Pipe Diameter | φ60mm | |||||
| Certificate | CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available | |||||
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
Contact Person: Mr. David Lau
Tel: 86-18620309436
Fax: 86-755-61641072
