Name: UFO LED High Bay Light CE CB SAA TUV GS D-Mark Protection ClassⅠFor Wprkshop
Brand: DUALRAYS
SKU: DR-HB100-CGXP
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (195 reviews)

Home Products UFO LED High Bay Light

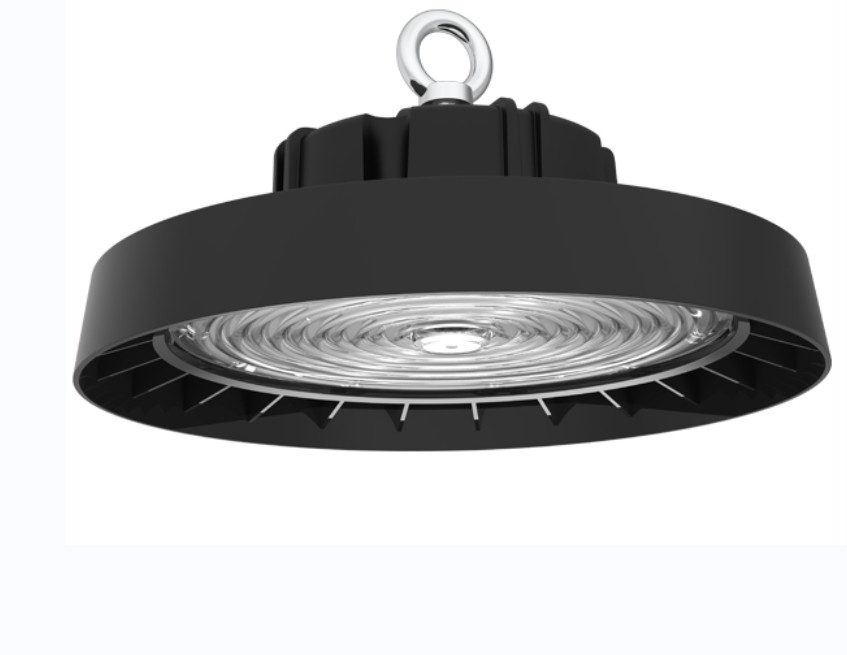

UFO LED High Bay Light CE CB SAA TUV GS D-Mark Protection ClassⅠFor Wprkshop

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-CGXP

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Systems Watts/W:	100W	Power Effciency:	140LPW
THD:	<10%	SDCM:	<6
UGR:	<25	LED Source:	SMD3030
High Light:	high bay led shop lights , wireless led outdoor flood lights

UFO LED High Bay Light CE CB SAA TUV GS D-Mark Protection ClassⅠFor Wprkshop

UFO LED High Bay Light Production Details:

Efficiency:
STANDARDLine:

PROLine: 140LPW

PRIMELine:

Features:

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,DUALRAYS Built-in Driver;

* IP65 Protection;

* 60°/90°(with lens)/120°(without lens) beam angle optional;

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting,E40 Socket Available;
* Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
* Customized supported for special projects;

> Highly brightness SAN‘AN SMD3030 LEDs,energy efficient - up to 140 lm/w;

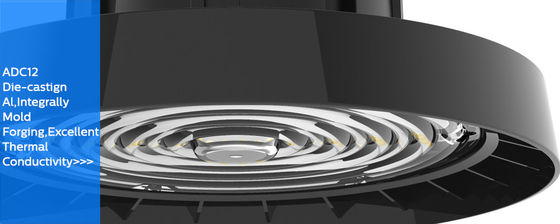

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications;

> IP65 and IK08 for all industrial areas of application;

> DUALRAYS own-developed built-in driver,slim design,compact and durable;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> Driver: DUALRAYS Own-developed built-in driver,slim design,durable and compact.

> Controls and Dimming

·Zigbee wireless control / 1-10V Dimming / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Lmen Output/lm	14000±5%
UGR	<25
SCDM	<6
Beam Ange	60/90/110 Degree
THD	<10%

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement
UFO High Bay Light With Dayight Sensor Own Developed Built In Driver Slim Design Durable And Compact

UFO High Bay Light With Dayight Sensor Own Developed Built In Driver Slim Design Durable And Compact

UFO LED High Bay Light CE CB SAA TUV GS D-Mark Protection ClassⅠFor Wprkshop 3

UFO High Bay Light With Dayight Sensor Own Developed Built In Driver Slim Design Durable And Compact
UFO LED High Bay Light CE CB SAA TUV GS D-Mark Protection ClassⅠFor Wprkshop 6

UFO LED High Bay Light CE CB SAA TUV GS D-Mark Protection ClassⅠFor Wprkshop 7

UFO LED High Bay Light CE CB SAA TUV GS D-Mark Protection ClassⅠFor Wprkshop 8

UFO High Bay Light With Dayight Sensor Own Developed Built In Driver Slim Design Durable And Compact

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

1.What’s the meaning of “Beam Angle “?

RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.

2.How do we explain “CRI” ?

RE: A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.

3.What’s CCT(colour temperature) ?

RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.

4.Do you know “dali “?

RE: Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.

5.What’s the fire rating categories ?

RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

TP(b)-Slow burning rate <50mm / min for thickness <3mm.

TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.

6.How to explain “Flux/luminous Flux “?

RE: Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.

7.Why we use the high power LED ?

RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.

8.How to explain “illuminance“?

RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
