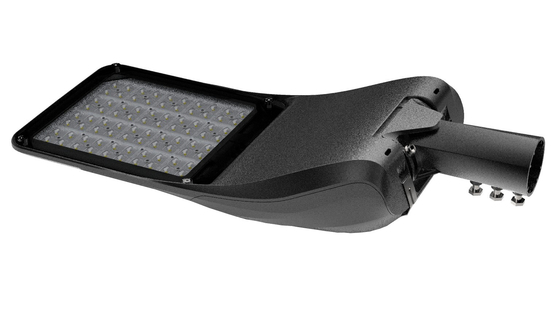

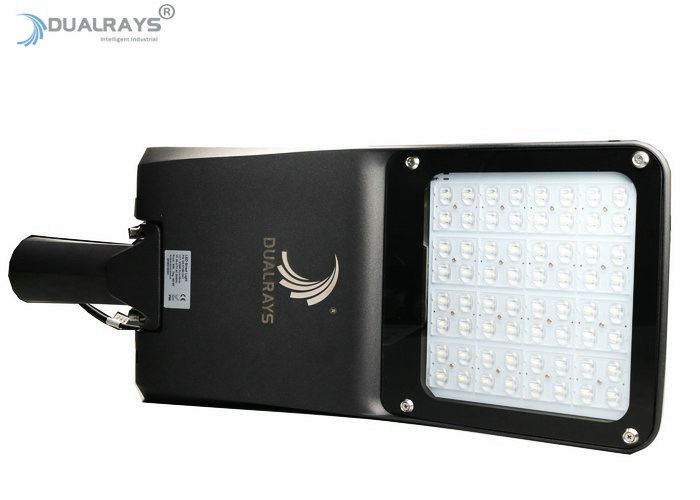

IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz

IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz

  • IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz
  • IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz
  • IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz
  • IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz
IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz
Product Details:
Place of Origin: Shenzhen,China
Brand Name: Dualrays
Certification: CE,ROHS,TUV/GS,LM79,LM80
Model Number: DR-SL150-DGX
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Price: Negotaited
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 business days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Warranty: 5 Years Efficienncy: 150LPW
LEDs Source: LUMILEDS LUXEON LEDs Driver: Meanwell ELG/HLG
CCT: WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K Input Voltage: AC95~277V 50/60Hz
Wattage: 30W,60W,90W,120W,150W,180W Life Span: 50000H
High Light:

led cobra head street light

,

warm white led street lights

IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz



Outdoor LED Street Lights Features:

Rugged die-cast aluminum housing with corrosion resistant hardware

Super durable powder coating finish withstand extreme climate changes without cracking or peeling;

CE,RoHS listed, LM-79/80 reports available,TUV/GS Pending,5 years guarantee;

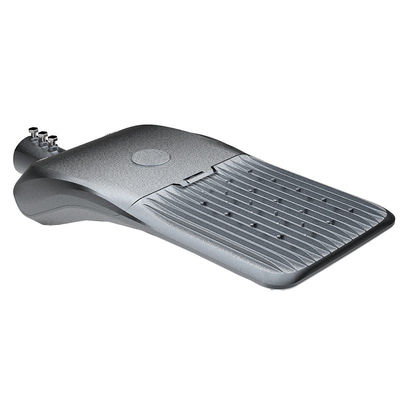

Air-flow through heat sink design provides perfect heat management, lighter but stronger construction.

Smooth and glossy processing with natural clean system prevents debris build-up and minimizes wind loading;

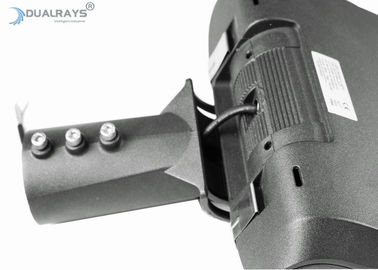

Dual-hoop mounting system fitted to 60mm (O.D.) mast-arms accommodates safety and stability.



Advantages:

* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;

* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.

* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;

* Supply different version with different configurations for our customers.

Item Description
Model No. DR-ST150-DGX
System Efficiency/LPW 150
Lumen Output/lm 18.000±5%
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD5050
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K
CRI/Ra >70Ra (>80Ra for Option)
  • IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 0
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 1
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 2
    * Roadways.
    * Avenues.
    * Walkways.
    * Loading Area.
    * Parking lot.
    * Playground.
    * Sport and Stadium.

    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 3
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 4
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 5
    30W/60W Version
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 6
    90W,120W/150W/180W Version
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 7

    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 8
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 9

    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 10
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 11
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 12IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 13IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 14IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 15
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 16
    Zigbee Wireless Intelligent Control Diagram
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 17

    Zigbee Wireless Intelligent Control Operator Interface
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 18
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 19
    DALI Device
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 20

    DALI Intelligent Control Diagram
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 21 IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 22


    DALI Intelligent Control Operator Interface
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 23
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 24
    IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 25
IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 26
Q1: What is the warranty for the LED street light?
RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: Is there a MOQ?
RE: No MOQ, Sample order for testing welcome.

Q3: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q4: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;

Q5: What Optics available?
RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q6: IP Rating?
RE: IP66.

Q7: Finish color?
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

IK08 Vibration Grade Outdoor LED Street Lights LUMILEDS LUXEON LEDs 50/60Hz 27
