| Place of Origin: | Shenzhen,China |
| Brand Name: | Dualrays |
| Certification: | CE,ROHS,TUV/GS,LM79,LM80 |
| Model Number: | DR-SL180-DGX |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 business days |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 50,000pcs/month |
| IP Rating: | IP66 | Rated Input Voltage/V: | AC100~277V 50/60Hz |
|---|---|---|---|
| Lifespan/hrs: | >50.000 Hrs (Ta=30 @L70) | Driver: | Meanwell ELG/HLG |
| Pipe Diameter: | φ60mm | Input Voltage: | AC95~277V 50/60Hz |
| High Light: | led cobra head street light,decorative street light |
||

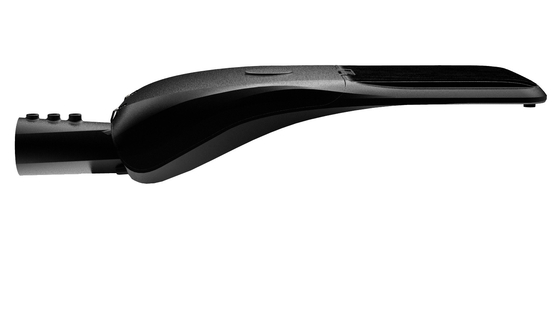

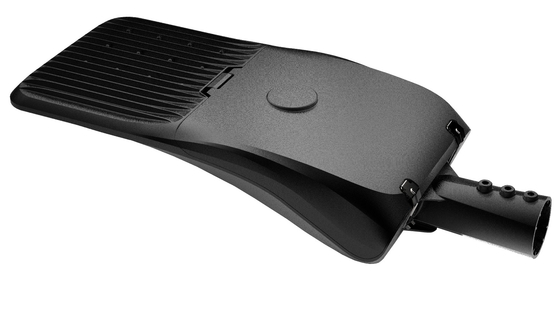

IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade
Outdoor LED Street Lights Features:
* Tool-less access to the down-opening driver door makes easy maintenance and 10KV/20KV SPD for option;

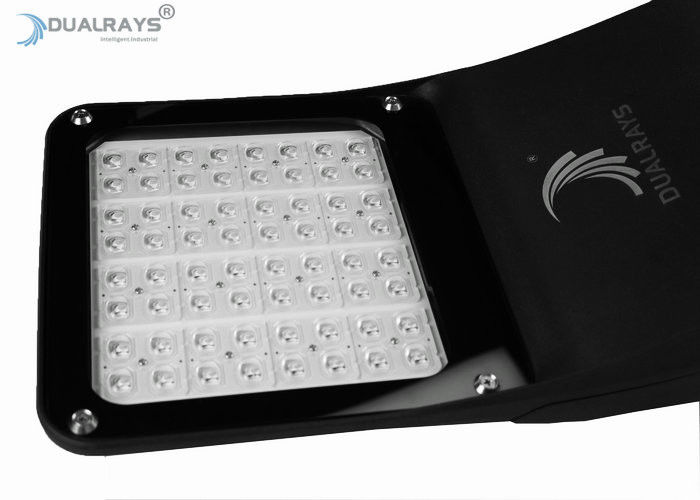

* Superior PC reflector-optic for low glare applications,and toughened glass protection;
* L80/B10 @ 50.000h;
* 10KA SPD,20KA Meanwell SPD optional.
* DALI driver and DALI Centralized Manager optional.
* Customized supported for special projects.
Advantages:
* Tens of R&D engineers with more than 10 years experience in LED luminaires industry;
* Build strategic partnership with international top brands such as CREE, LUMILEDS, NICHIA, MEANWELL,etc.
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
* Supply different version with different configurations for our customers.
| Item | Description |
| CCT/K | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle(Optional) | TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium) |
| Dimming(Optional) | 0/1-10V/PWM/DALI/Zigbee |
| UGR | <25 |
| LEDs Light Source | SMD5050 |
| THD | <10% |
| Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ | -40°C to + 65°C(-40°F to 149°F) |
> Roadways.
> Avenues.
> Walkways.
> Loading Area.
> Parking lot.
> Playground.
> Sport and Stadium.
30W/60W Version
90W,120W/150W/180W Version
Q1.Why we use the high power LED?
RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.
Q2.What’s Lumen?
RE: The international (SI) unit of luminous flux or quantity of light and equals the amount of light that is spread over a square foot of surface by one candle power when all parts of the surface are exactly one foot from the light source.
Q3. What are your main markets?
RE: We focus on European market and Oceania market.
Q4. How many engineers of your R&D team?
RE: 10-15 R&D staffs with more than 10 years experience in LED luminaires industry
Q5. What brands of driver do you supply for luminaire fixture?
RE: Meanwell, Boke, Sosen, Moso and other brands available.
Q6. Do LED lights need maintenance? If so, how?
RE: For regular use. There is no need maintenance as long as stable voltage can be assured.
