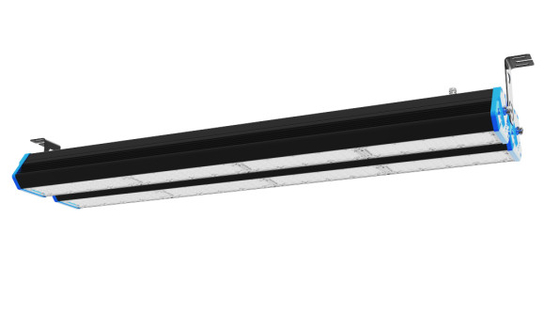

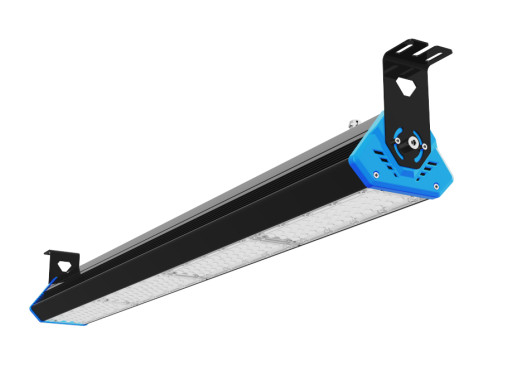

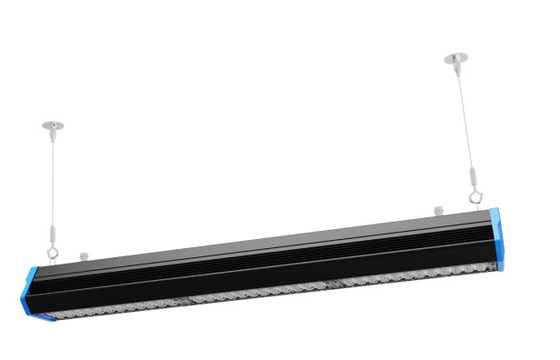

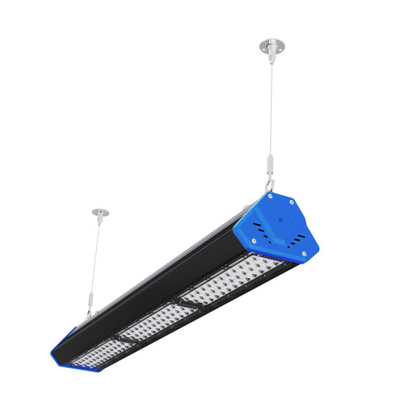

900mm 3ft 120W 100LPW 120 Degree Beam Angle Linear Low Bay LED Lighting Workshop

900mm 3ft 120W 100LPW 120 Degree Beam Angle Linear Low Bay LED Lighting Workshop

    • 900mm 3ft 120W 100LPW 120 Degree Beam Angle Linear Low Bay LED Lighting Workshop
    • 900mm 3ft 120W 100LPW 120 Degree Beam Angle Linear Low Bay LED Lighting Workshop
    • 900mm 3ft 120W 100LPW 120 Degree Beam Angle Linear Low Bay LED Lighting Workshop
  • 900mm 3ft 120W 100LPW 120 Degree Beam Angle Linear Low Bay LED Lighting Workshop

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: DUALRAYS(OEM available)
    Certification: CE, ROHS, TUV/GS, LM79, LM80
    Model Number: DR-LB120-FG3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Please inquiry for latest price
    Packaging Details: Netural Package/OEM and ODM Package Available
    Delivery Time: 5-15 bussiness days
    Payment Terms: L/C, T/T, Western Union, paypal
    Supply Ability: 120000pcs/month
    Contact Now
    Detailed Product Description
    Input Voltage: AC100~277v 50/60Hz Driver: Meanwell/Sosen
    LEDs: EPISTAR UGR: <25
    Power Factor: 0.98 CRI: >80Ra

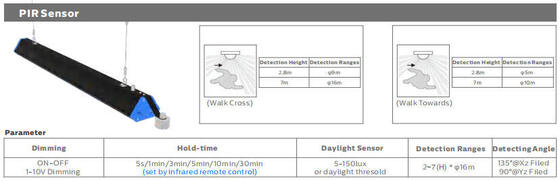

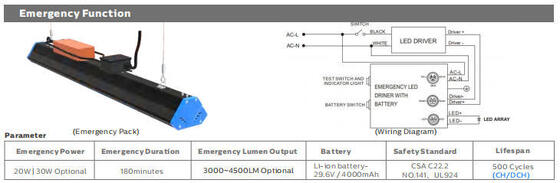

    Option Sensor: PIR Sensor, Emergency, 1-10V, DALI, Microwave Sensor Is Available; Applications: Factory/Warehouse/Workshop/Exhibition Center...
    Beam Angle: 120° Storage Temperature: -40℃--55℃

    Dualrays HB6 Series 3ft/120W Linear LED High Bay Light 160LPW Efficiency with Microwave sensor Emergency Function 5 Years Warranty



    mtxx01



    Item Symbol Description
    Model No / DR-LB120-FG3
    Rated Power W 120
    LEDs Typ/Qty SMD2835 756
    Luminous Flux LM 18,000±5%
    Efficiency LPW 150
    Colo Temperature CCT/K WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K

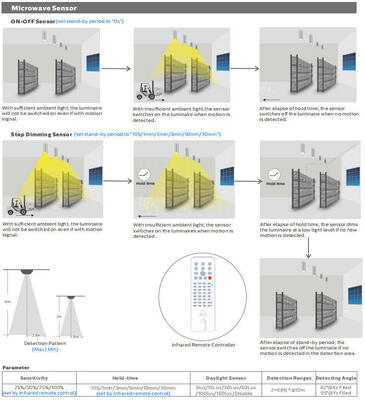

    Dimming Function / 1-10VDC /DALI / Microwave Sensor
    Protections / Short circuit/Over current/Over voltage/Over temperature
    Anti-salty spray / Grade A
    Color Index Ra >83Ra
    Beam Angle Degree 120° for option
    IP/Rating / IP65
    AC Input Vol V AC100~277V 50/60Hz
    Power Factor PF PF>0.95
    Starting Time s <0.5
    Lumen Maintenance @ 6000 hrs Hours >80%
    Switching Cycle before Failure Times 100,000
    Life Span Hours 50,000
    Warranty Years 5 years
    Operation Temperature -40 ~ +55℃
    Storage Temperature -40 ~ +85℃

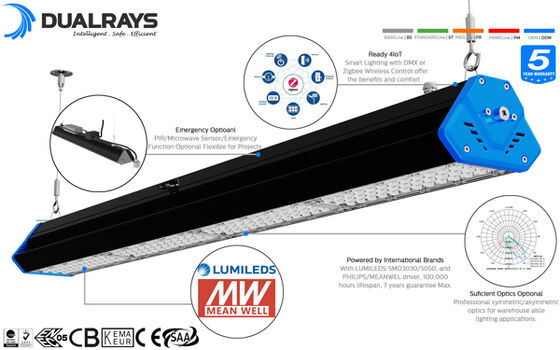

    (I) Product Descriptions:
    * Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery, black and white finish. No toxic heavy metals, VOC, or mercury were used in the design;
    * Constructed in a heavy-duty 6063 aluminum and PC, durable and excellent heat dissipation efficiency;
    * Top brand Meanwell constant current driver is isolated away from the heat source of the LEDs, keeps the stability and performance of the driver for long life;
    * Adopting EPISTAR SMD2835 LEDs light source, high output lighting efficiency 150LPW, high Color Rendering Index (CRI>80Ra), excellent heat dissipation, low light decay;
    * High quality power supply, AC100V~277V, 50/60Hz input voltage,constant voltage or constant current output, quick responds, no flicker, lightning protection, PFC function available, 0-10V availableconstant available;

    (II) Applications:

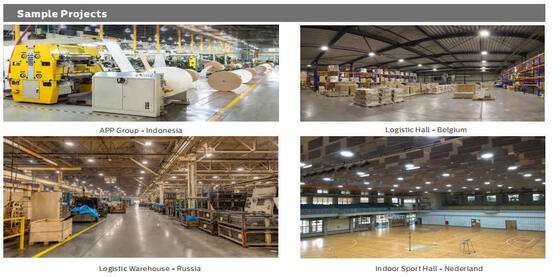

    ∴ Supermarkets;
    ∴ Exhibition center;
    ∴ Airport Hall;
    ∴ Underground garage;


    (III) Quick View:
    * 120W/3ft, 15,000, IP65;
    * Inputing rating: AC100-277V 50/60HZ;
    * Beam Angle: 120º;
    * Size: 900(L)*150(W)*140(D)mm;
    * CE, RoHS listed;
    * 5 years guarantee;

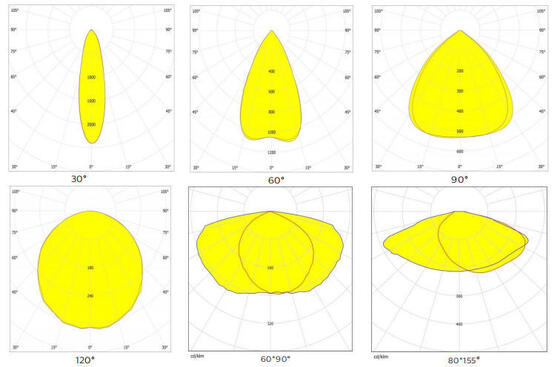

    (V) Optical & Photometric Data:
    PC Cover High Bay Lamp 120W 3ft , High Bay Fluorescent Light Fixtures 6063 Aluminum

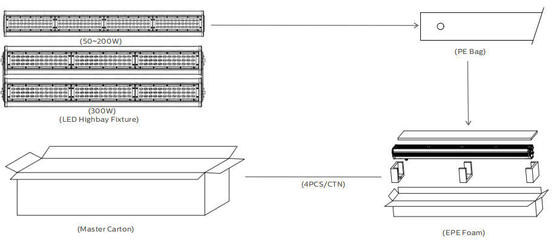

    (VI) Package:

    Model No. Quantity of LEDs LEDs Driving Current Rated Power
    DR-LB080-FG2 252pcs 100mA 80W
    DR-LB120-FG2 336pcs 100mA 120W
    DR-LB150-FG2 420pcs 100mA 150W
    DR-LB200-FG2 576pcs 100mA 200W



    Shipment

    Note: (1) For small order, express will be best.

    (2) For bulk order, ship by sea or train(Europe destination) is the best, but take much time.

    (3) For urgent orders, we suggest via air to airport plus our ship partner send to your door.



    FAQ

    Q1: What are the applications of your linear High Bay light?

    RE: Our linear High Bay light can be applied in train, bus station and Office, workshop and warehouse, supermarket, exhibition center, airport hall, underground garage etc.

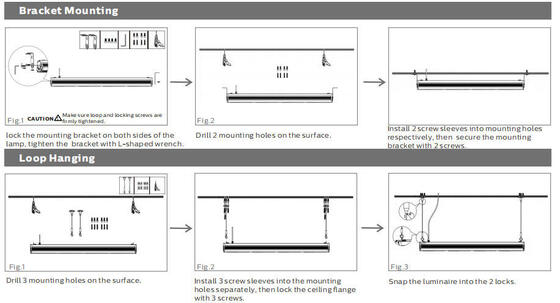

    Q2: What installations of linear high bay light?

    RE: Suspending/Ceiling mounted/Adjustable installation for option.



    Q3: Finished color?

    RE: Standard colors: Black / White, other colors can be customized, based on MOQ 50PCS.



    Q4: Can we get support if we have our own market position?

    RE: Please inform us your detailed mind on your market demand. We will discuss and propose helpful suggestion for you to find the best solution for you.



    Q5. What’s the warranty?

    RE: 5 years. We take on the delivery cost and replacement if any quality problem occurred during this period.



    Q6. What’s CCT(colour temperature) ?

    RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.



    Q7:What’s the payment methods you can accept ?

    RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.



    Q8: How long is your production time?

    RE: Normally 3-5 business days for small sample, 10-15 business days for bulk orders.



    Welcome to contact us for more information.
