| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB240-EG2 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Warranty: | 5 Years | Power: | 100W,150W,200W,240W,300W |
|---|---|---|---|
| CCT: | 3000K,4000K,5000K,5700K,6500K | LED Light Source: | PHILIPPS SMD3030 |
| CIR: | >80Ra | Material: | Die-cast Aluminum |
| High Light: | high bay led shop lights,wireless led outdoor flood lights |
||

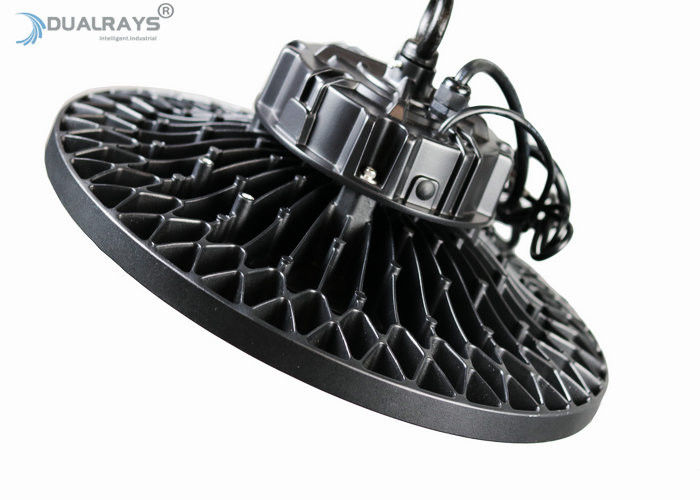

SMD3030 LED High Bay Lights 240 Watt Meanwell Sosen Driver
UFO LED High Bay Features:
* The luminaire assembly meets dust and moisture rating of IP65 and impact protection of IK08, ensure long life and protection from the environment;

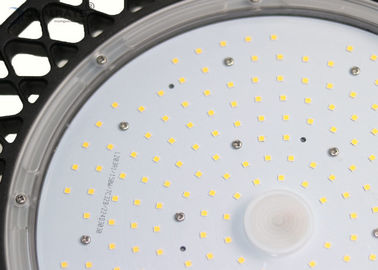

* Adopting PHILIP LUMILEDS SMD LEDs light source;
* Surface anti-corrosion coating processing,;
* High anti-corrosion grade WF2, can be used indoor and outdoor prevent corrosion environment;
* High quality Meanwell/Sosen power supply;
* AC100V~277V,50/60Hz input voltage;
| Item | Description |
| System Efficiency/LPW | 140LPW |
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
| CRI/Ra | >80Ra (>70Ra for Option) |
| LED Driver | Meanwell HBG/ELG/HLG,Sosen |
| LED Chips | SMD3030 PHILIP LUMILEDS LEDs |
| Optic Lens | 60°/90°/110° |
| Rated Input Voltage/V | AC100~277V 50/60Hz |
| Installaion |

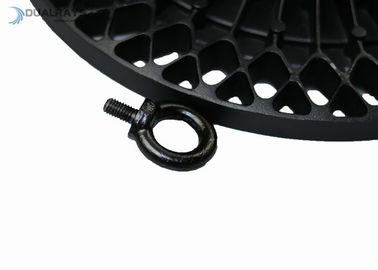

Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects; |
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.
Q2: Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand. We will discuss and propose helpful suggestion for you to find the best solution for you.
Q3.How do we explain “CRI” ?
RE: A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.
Q4.What’s CCT(colour temperature) ?
RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.
Q5.Could i tell you what’s LED driver ?
RE: An electronic circuit that converts input power into a current source -a source in which current ramains constant despite fluctuations in voltage fluctuations ,overvoltages, and voltage spikes.
Q6.What’s LGP(PMMA)?
RE: A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
