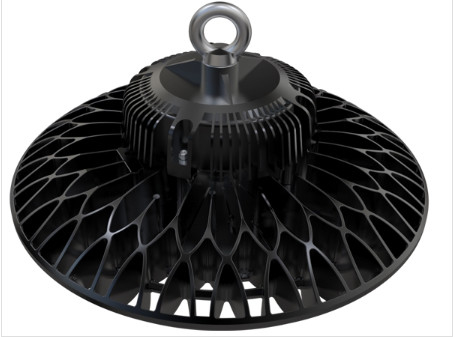

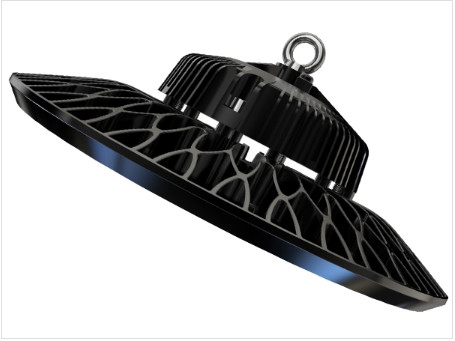

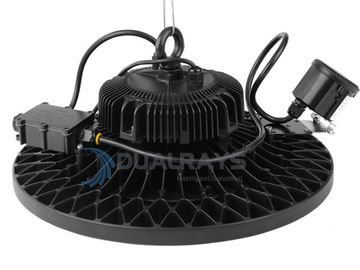

UFO LED High Bay Light 150W 140LM/W IP66 DALI PIR 1to10V Dimming Motion Sensor Emergency

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB150-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277v 50/60Hz	Driver:	Meanwell/Sosen
LED Source:	SMD3030	Power Factor:	0.95
CCT:	WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K	Life Span:	50,000 Hours
Warranty:	5 Years	Material:	Aluminium Alloy 6063+PC
UGR:	<25	Installation Height:	6-20 Meters
Applications:	Factory/Warehouse/Workshop/Exhibition Center...
High Light:	led flat panel light fixture , high bay led shop lights

100 Watts UFO LED High Bay Light With Meanwell / SOSEN Power Supply

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Robust die-cast aluminum luminaire body painted in epoxy powder coating in black;;

> With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08;

> Die casting Aluminum shell, good mechanical strength and heat dissipation, surface anti-corrosion coating processing, high anti-corrosion grade WF2,

can be used indoor and outdoor prevent corrosion environment.

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Optic lens with 60°/120° optional,with >90% efficiency reduces light significantly;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming

> Rod mounting, hook with chain mounting and heavy duty steel yoke mounting are available;

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Why choosing DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Model No.	DR-HB100-EGXP	DR-HB150-EGXP	DR-HB200-EGXP	DR-HB240-EGXP	DR-HB300-EGXP
System Watts/W	100W	150W	200W	240W	300W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%	42.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120°/140°
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell HBG/ELG/HLG,Sosen
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

UFO High Bay Lights 100Watt 140LPW Factory Warehouse Supermarket Applied

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

UFO High Bay Lights 100Watt 140LPW Factory Warehouse Supermarket Applied

DALI Device
UFO High Bay Lights 100Watt 140LPW Factory Warehouse Supermarket Applied

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

UFO High Bay Lights 100Watt 140LPW Factory Warehouse Supermarket Applied

Packaging Information

Shipment
UFO High Bay Lights 100Watt 140LPW Factory Warehouse Supermarket Applied
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

UFO High Bay Lights 100Watt 140LPW Factory Warehouse Supermarket Applied

Q1: What is the warranty?

RE: For the HB5 Series LED high bay,Dualrays provide 5 years warranty.

Q2: Can I start with 1pcs?

RE: Yes. Sample order for testing welcome.

Q3: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q5: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q6: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q7:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Welcome to contact us freely to get more information.
