Football Court SOSEN Meanwell Driver LED Sports Ground Flood Light 140LPW 200W IP66

Football Court SOSEN Meanwell Driver LED Sports Ground Flood Light 140LPW 200W IP66

  • Football Court SOSEN Meanwell Driver LED Sports Ground Flood Light 140LPW 200W IP66
  • Football Court SOSEN Meanwell Driver LED Sports Ground Flood Light 140LPW 200W IP66
  • Football Court SOSEN Meanwell Driver LED Sports Ground Flood Light 140LPW 200W IP66
  • Football Court SOSEN Meanwell Driver LED Sports Ground Flood Light 140LPW 200W IP66
Football Court SOSEN Meanwell Driver LED Sports Ground Flood Light 140LPW 200W IP66
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL200-CGXP
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Price: Please inquiry for latest price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Input Voltage: AC100~277v 50/60Hz Driver: SOSEN/Meanwell
Power Factor: 0.95 Life Span: >50,000 H
Guarantee: 5 Years Package: Normal Export Carton Box
Material: Aluminium Alloy+PC Installation Methods: Suspended/Surface Mounted/Adjustable Installation For Option
High Light:

industrial high bay led lighting

,

led stadium floodlights

Football Court SOSEN Meanwell Driver LED Sports Ground Flood Light 140LPW 200W IP66

Outdoor IP65 50W 120LPW SMD3030 led security flood light 0
Outdoor IP65 50W 120LPW SMD3030 led security flood light 1

Options:
> Driver: Sosen,Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
> Microwave Motion Sensor;

Outdoor IP65 50W 120LPW SMD3030 led security flood light 2
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions

Outdoor IP65 50W 120LPW SMD3030 led security flood light 3
Model No.
DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
50W 100W 150W 200W
300W
System Efficiency/LPW
120~125LPW
Lumen Output/lm
6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
<25
Surge Protection
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Sosen,Meanwell ELG / HLG Optional
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+Toughened Glass
Lifespan/hrs
62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Outdoor IP65 50W 120LPW SMD3030 led security flood light 4

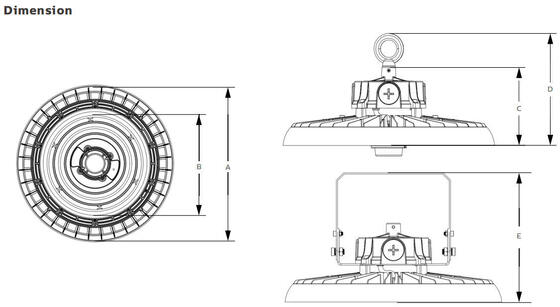

Character/Power
100W
150W
200W
240W
300W
Outdoor IP65 50W 120LPW SMD3030 led security flood light 5
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

Outdoor IP65 50W 120LPW SMD3030 led security flood light 6
Outdoor IP65 50W 120LPW SMD3030 led security flood light 7
Outdoor IP65 50W 120LPW SMD3030 led security flood light 8
Outdoor IP65 50W 120LPW SMD3030 led security flood light 9Outdoor IP65 50W 120LPW SMD3030 led security flood light 10
Outdoor IP65 50W 120LPW SMD3030 led security flood light 11

Outdoor IP65 50W 120LPW SMD3030 led security flood light 12

Outdoor IP65 50W 120LPW SMD3030 led security flood light 13

Outdoor IP65 50W 120LPW SMD3030 led security flood light 14

Outdoor IP65 50W 120LPW SMD3030 led security flood light 15

Outdoor IP65 50W 120LPW SMD3030 led security flood light 16
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN



FAQ



Q1:What is a flood light?
RE:LED floodlights are lamps that specify that the illuminance on the illuminated surface is higher than the surrounding environment. Also called the spotlight. Normally, it can aim in any direction and has a structure that is not affected by weather conditions. It is mainly used for large-scale operation sites, general constructions, stadiums, overpasses, memorial monuments, parks and flower beds.

Floodlight (Floodlight), a floodlight is a point light source that can illuminate equally in all directions. Its illumination range can be adjusted arbitrarily, and it appears as a regular octahedron icon in the scene. Floodlights are the most common light source used in the production of function pictures. Standard floodlights are used to illuminate the entire scene.



Q2: What are the advantages of flood light?

RE:Advantages of LED flood light;

①High-purity aluminum reflector, the most accurate beam and the best reflection effect.

②Symmetrical narrow-angle, wide-angle and asymmetric light distribution systems.

③It is troublesome to change the light bulb with the open type behind.

④The lamps are equipped with a scale board to adjust the projection angle.

⑤It is suitable for lighting in large places and buildings.






Tag words: Driverless LED flood light , UFO LED high bay , LED troffer , LED area light , LED street light, Dualrays,Dualrays Optoelectronics, Shenzhen Dualrays Optoelectronics Co.,LIMITED
