| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB240-EG2 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000PCS/Month |
| Warranty: | 5 Years | Life Span: | >50000h |
|---|---|---|---|
| CCT: | 3000K`6500K | Certificate: | CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available |
| OEM Service: | Private Label Free Of Charge For Quantity Above 100PCS Per Model | Europe Warehouse: | Netherlands |
| High Light: | high bay led shop lights,wireless led outdoor flood lights |
||

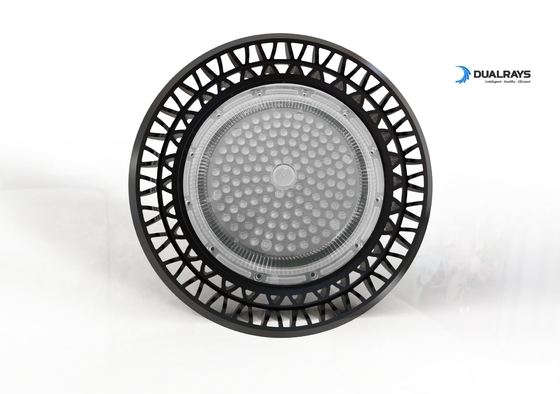

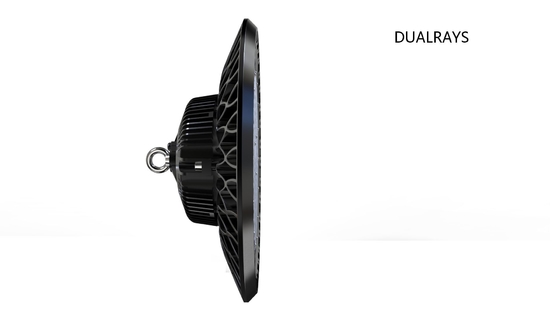

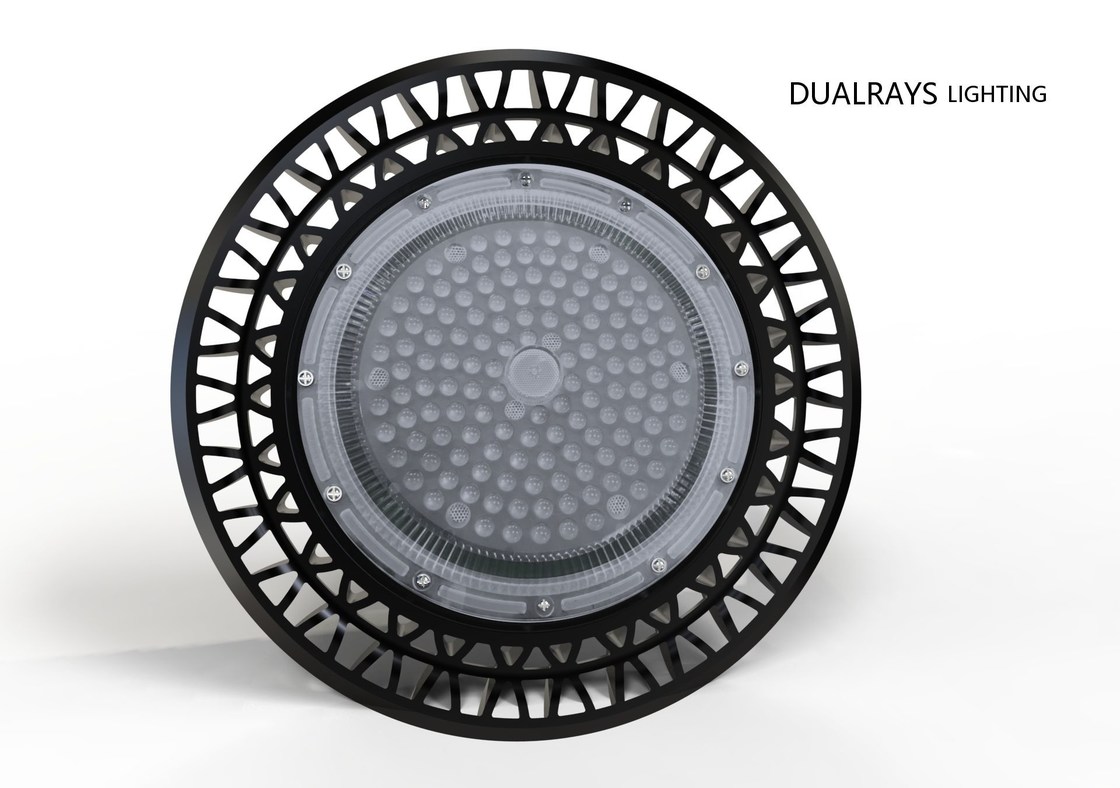

UFO LED High Bay Features:

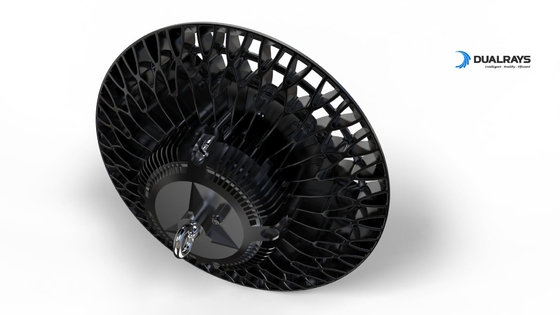

* Air-flow heat sink allows for fast air movement as the perfect cooling system to ensure the performance and longevity;
* Optic lens with 60°/90°/120° optional;
* Constant voltage or constant current output, quick responds,no flicker, lightning protection, PFC function available;
* Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
* Driver and housing separated by spacers;
* Installation: Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting.
Advantages:
* Provide Dialux software for lighting design project for our customers;
* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
|
Input Voltage
|
AC100-277V 50/60HZ
|
CRI
|
>80
|
|
Power
|
150W
|
IP Ranking
|
IP65
|
|
Working Temp
|
-40 to +50℃
|
Power Factor (PF)
|
＞0.95
|
|
Luminous Flux
|
16800lm
|
Material
|
AL+PMMA
|
|
CCT
|
2700-6500K
|
Certificate
|
CE, RoHS,
|
|
Dimension
|
Φ420*220mm
|
Warranty
|
5 years
|
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: Can I have samples to test ?
RE: Yes,sure. Welcome to order samples for evaluation before bulk order.
Q2.What’s the fire rating categories ?
RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.
HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.
TP(b)-Slow burning rate <50mm / min for thickness <3mm.
TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
Q3.What’s Power factor ?
RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)
Q4. Do you have some projects in global market?
RE: (1) We are professional enough, and most of our clients in Germany are project contractors, we are experienced to serve their projects with fast reaction.
(2) We are three years high bay and flood lights supplier for the Asia largest printing and paper making company in Indonesia, Asia Pulp&Peper CO.,Ltd(APP);
(3) We served three stages of projects in Germany;
(4) Our panel used in Cologn rail way station, and our flood light used in outdoor tennis courts in Duesseldorf.....
Q5. What is the area of your factory?
RE: 2,500㎡ of our factory
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
