| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-TPL040-EG3X |
| Minimum Order Quantity: | 8PCS |
|---|---|
| Price: | Please inquiry for the latest price |
| Packaging Details: | Netural Package/OEM and ODM Package Available,8PCS/CNT |
| Delivery Time: | 5-15 business days |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 100,000pcs/month |
| Warranty: | 5 Years | Power Factor: | >0.96 |
|---|---|---|---|
| CRI: | >80Ra (>70Ra For Option) | Efficiency: | 160LPW |
| LED Driver: | DUALRAYS / BOKE Flicker-free Driver,DIP Switch Power Adjustment Available | Sensor(Optional): | Daylight Sensor/Microwave Sensor |
| High Light: | dust proof light fixture,vapor proof led light |
||

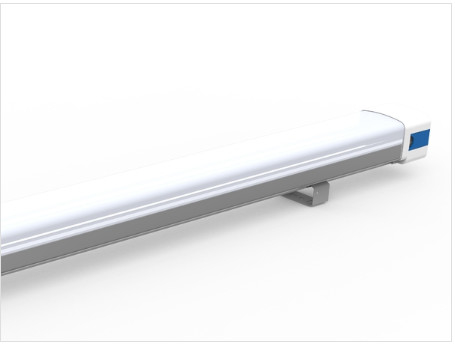

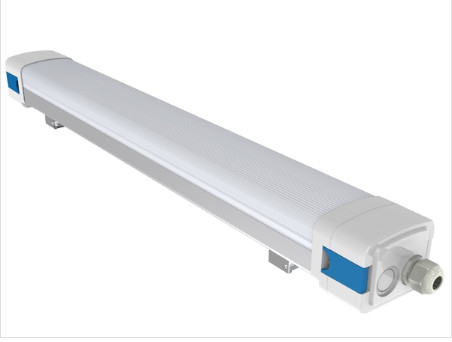

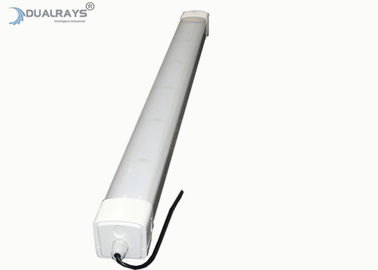

LED Tri Proof Light Feature:
* Full plastic housing with high transmittance arcrylic cover,light and economic design concept;
* Luminaire coated in an environmentally friendly polyester powder formulated in a silvery,black and white finish;
* DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent;
* BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs, keeps the stability and performance of the driver for long life;
* 270°adjustable European Bracket for actual lighting direction;

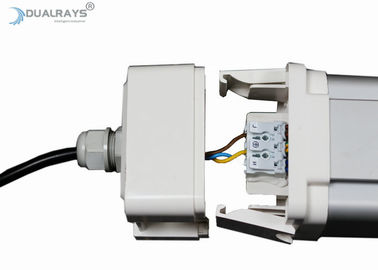

* Single or Double wiring;
* Multiple Link with double wiring;
| Item | Symbol | 2ft/20W | 4ft/40W | 5ft/50W |
| Model No | / | DR-TPL020-BG21 | DR-TPL040-BG41 | DR-TPL050-BG51 |
| Rated Power | W | 20 | 40 | 50 |
| LEDs Typ/Qty |
SMD 2835 |
144PCS | 273PCS | 312 PCS |
| Luminous Flux |
Clear Frost |
3,200±5% 3,000±5% |
6,400±5% 6,000±5% |
8,000±5% 7,500±5% |
| Efficiency |
Clear Frost |
Typ.160 Typ.150 |
Typ.160 Typ.150 |
Typ.160 Typ.150 |
| Lumen Maintenance @ 6000 hrs | Hours | >80% | ||
| Switching Cycle before Failure | Times | 100,000 | ||
| Life Span | Hours | 50,000 | ||
| Warranty | Years | 3 years | ||
| Operation Temperature | ℃ | -15 ~ +50℃ | ||
| Storage Temperature | ℃ | -25 ~ +55℃ | ||
| Model No. | DR-TP020-EG2XPX | DR-TP040-EG4XPX | DR-TP050-EG4XPX | DR-TP060-EG5XPX | DR-TP080-EG5XPX |
| System Watts/W | 20W | 40W | 50W | 60W |
80W
|
| System Efficiency/LPW | 130LPW / 160LPW Optioanl | ||||
| Lumen Output/lm | 2.600/3.200±5% | 5.200/6.400±5% | 6.500/8.000±5% | 7.800/9.600±5% | 10.400/12.800±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
| LEDs Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.91 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 120° | ||||
| UGR | <22 | ||||

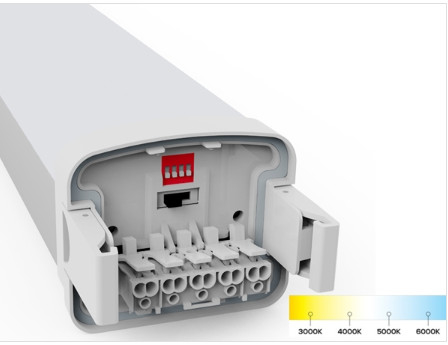

| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | ||||
| IP Rating | IP65 | ||||
| IK Level | IK08 | ||||
| Dimming(Optional) | 1-10V, DALI,Zigbee | ||||
| Sensor(Optional) | Daylight sensor/Microwave Sensor | ||||
| Emergency(Optional) | 5W@3 Hours or Customized | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | White RAL9016 Optional | ||||
| Material | AL+PC | ||||
| Lifespan/hrs | 62.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
|
Character/Length
|
2ft
|
4ft
|
5ft
|
|
|
A
|
600mm
|
1200mm
|
1500mm
|
|
|
B
|
74mm
|
74mm
|
74mm
|
|
|
C
|
74m
|
74mm
|
74mm
|
Q1: Finished color?
RE: Standard colors: Black / White, other colors can be customized, based on MOQ 50PCS.
Q2: Is there cheap shipping cost to import to our country?
RE: For small order, express will be best. And for bulk order, ship by sea or train(Europe destination) is the best, but take much time. For urgent
orders, we suggest via air to airport plus our ship partner send to your door.
Q3: What’s your main product line is made ?
RE: We focus on intelligent industrial LED luminaires, so our main products includes LED flood light, LED high bay, LED tri-proof light, LED street light, LED Linear trunking rail system.
Q4: Does Dualrays have the ability to do independence and development ?
RE: Our engineer department have 12 people. We have the research and development capabilities. We also collect regularly each customer feedback. We have product improvement and new product development. We also hold monthly new product launches.
Q5. What’s LGP?
RE: A key component to maximize the uniformity of light panel, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.
Q6: How to explain “Flux/luminous Flux”?
RE: Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.
Q7.What’s the meaning of “Beam Angle”?
RE: The spread of light from a luminaire. For example: a fitting such as a low bay, which is closer to the floor, will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
