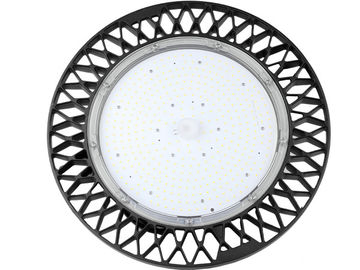

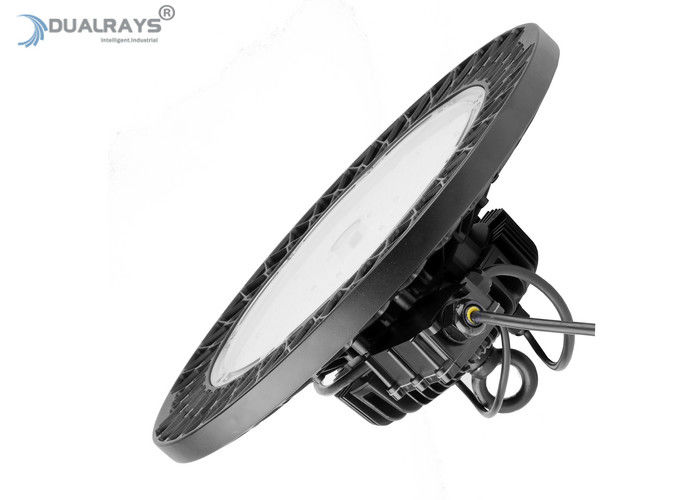

Name: Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert
Brand: DUALRAYS
SKU: DR-HB150-EG2
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (110 reviews)

Home Products UFO LED High Bay Light

Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB150-EG2

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	150W	IP Ranking:	IP65
Driving Brand:	Meanwell/Sosen	Certificate:	CE, RoHS
Dimming:	0/1-10W/Dali/Zigbee	LEDs Light Source:	SMD3030
High Light:	high bay led shop lights , wireless led outdoor flood lights

Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert

Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert 0

Dualrays 150W HB5 UFO LED High Bay Light-- Data Sheet

Item No.	DR-HB150-EG2	Housing color	Silver, Black, Grey etc
Input Voltage	AC100-277V 50/60HZ	CRI	>80
Power	150W	IP Ranking	IP65
Working Temp	-40 to +50℃	Power Factor (PF)	＞0.9
LED QTY	194PCS	Light Source	SMD3030
Beam Angle	60°/120º	LED Efficiency	150LPW
CCT	2700-6500K	Certificate	CE, RoHS,
Dimension	*ø350210mm**	Warranty	5 years
Weight	6.5Kg	Driving Brand	Meanwell/Sosen

Dualrays 150W HB5 UFO LED High Bay Light--Feature

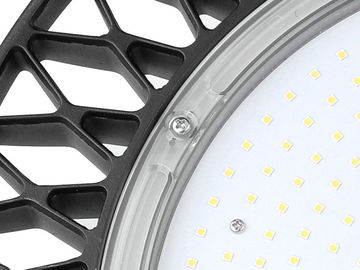

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

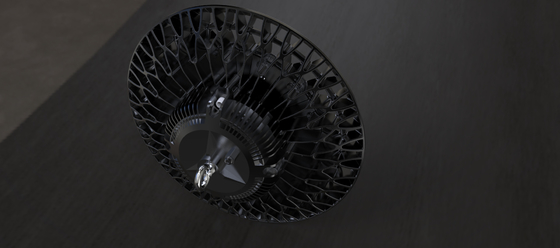

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Dualrays 150W HB5 UFO LED High Bay Light--Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert 3

Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert 5

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert 7

Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert 9

DALI Device
Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert 15

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Dualrays 150W HB5 Black Housing UFO LED High Bay Light For Exhibition Center CE RoHS Cert 19

Packaging Information
