Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Dualrays Optoelectronics
Certification:	CE,ROHS,LM79,LM80
Model Number:	DR-ST180-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiable
Packaging Details:	Netural Package,color box package,1PCS/CTN,1040(L)490(W)200(H)mm
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	180W	LEDs Typ/Qty:	SMD3030 288pcs
Luminaire Efficiency:	140lm/W	Luminous Flux:	25,200±5%
Color Temperature:	WW:3000K NW: 4000K DW:5000K CW: 5700±200K	Beam Angle:	120°60°,135°75°
Life Span:	>50,000	Power Supply:	Meanwell/Sosen
High Light:	warm white led street lights , decorative street light

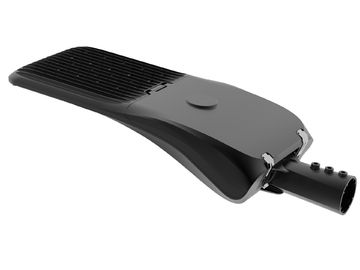

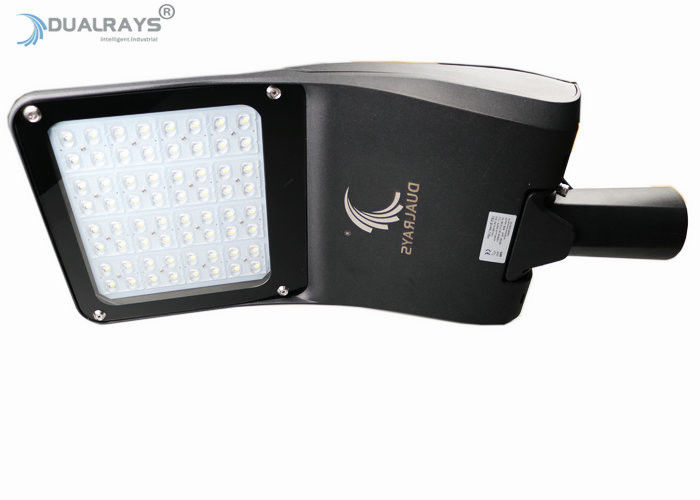

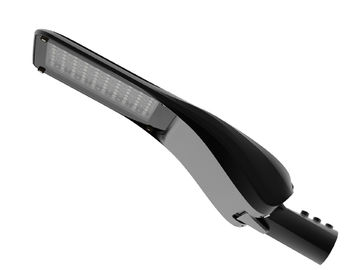

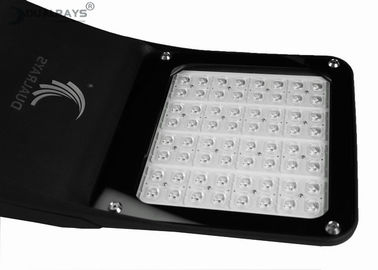

Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing

Dualrays F4 Series 180W Outdoor LED Street Light--Datas Sheet:

Item No.	DR-ST180-DG1	Warranty	5 years
Input Voltage	AC100-277V 50/60HZ	CRI	>80
Power	180W	IP Ranking	IP66
Working Temp	-40 to +50℃	Power Factor (PF)	＞0.9
Luminous Flux	25,200lm	Material	AL+PMMA
LED QTY	288PCS	Light Source	SMD3030
Beam Angle	*60°120º/75°135°*	LED Efficiency	140LPW
CCT	2700-6500K	Certificate	CE, RoHS

Dualrays F4 Series 180W Outdoor LED Street Light--Feature:

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

Dualrays F4 Series 180W Outdoor LED Street Light--Options:

> Driver: ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

30W/60W Version
Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing 6

90W,120W/150W/180W Version

Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing 8

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing 18

DALI Device
Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing 20

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing 24
Packaging Information

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing 33

Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing 34

Dualrays S4 Series 180W Outdoor LED Street Lights 140lmW Rugged Die Cast Aluminum Housing 35

Dualrays 50W Aluminium Housing LED Flood Light IP66 Waterproof With Adjustable Beam Angle
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
