100W 150W 200W HB4.5 Pluggable Motion Sensor UFO High Bay 160LPW

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE, ROHS,TUV
Model Number:	DR-HB200-XGXP

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package,OEM/ODM Package Available,2PCS/CTN
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	200W	Luminaire Efficiency:	160LPW
Beam Angle:	60°/90°/120°	Input Voltage:	AC100~277V 50-60Hz
PF:	>0.95	IK:	IK08
UGR:	<25	IP:	IP65
High Light:	HB4.5 Led High Bay Ufo Lights , 100W 160LPW Ufo High Bay Light , IP65 150W Led Ufo High Bay

100W 150W 200W HB4.5 Pluggable Motion Sensor UFO High Bay 160LPW Efficiency LEDs

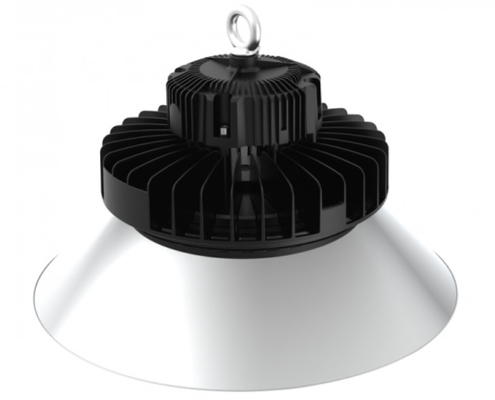

100W 150W 200W HB4.5 Pluggable Motion Sensor UFO High Bay 160LPW 0

Features:

> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;
> High Brightness SMD2835 LEDs (1W), LIFUD / SOSEN Round/Rectangle Driver;
> 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector is Necessary;

Options:

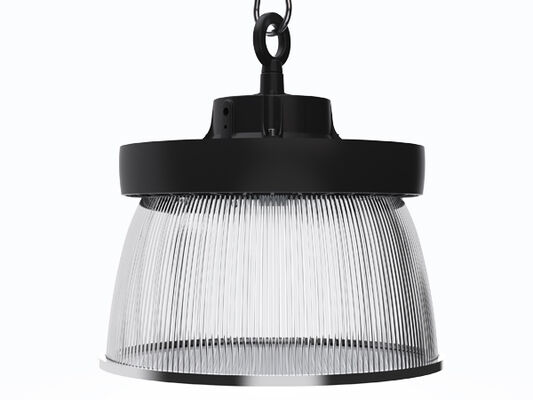

> Reflector : PC reflector / Al reflector;

> Driver: LIFUD / SOSEN Round/Rectangle Driver

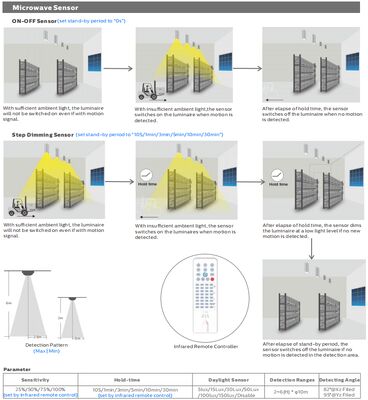

> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

> Lens : 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector;

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

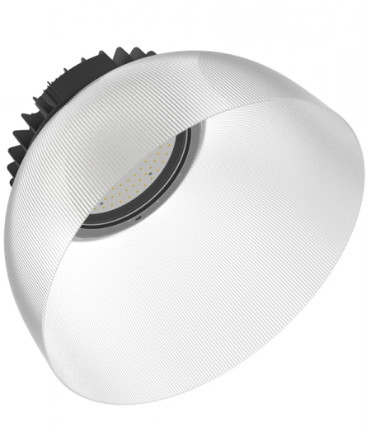

100W 150W 200W HB4.5 Pluggable Motion Sensor UFO High Bay 160LPW 2

Model No.	DR-HB100-XGXP	DR-HB150-XGXP	DR-HB200-XGXP
System Watts/W	100W	150W	200W
System Efficiency/LPW	140LPW / 160LPW Optional
Lumen Output/lm	14.000 / 16.000±5%	21.000 / 24.000±5%	28.000 / 32.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD2835 (1W)
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%

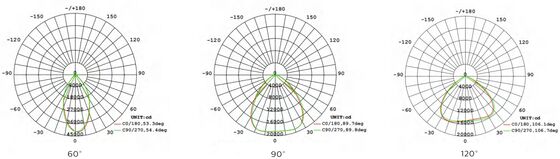

Beam Angle(Optional)	60°/90°/120° Optional
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver
LED Driver	LIFUD / SOSEN Round/Rectangle Driver
IP Rating	IP65
Dimming(Optional)	0/1-10V/Zigbee

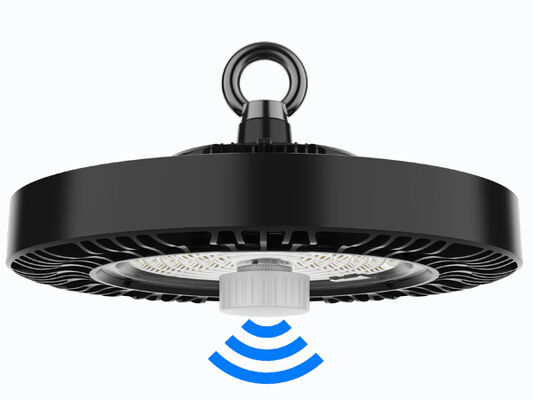

Sensor(Optional)	Motion Sensor,Daylight Sensor

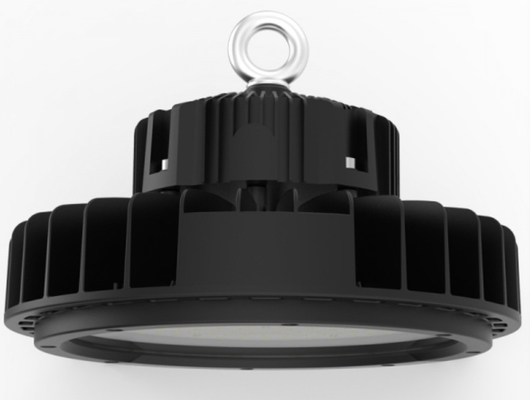

100W 150W 200W HB4.5 Pluggable Motion Sensor UFO High Bay 160LPW 4

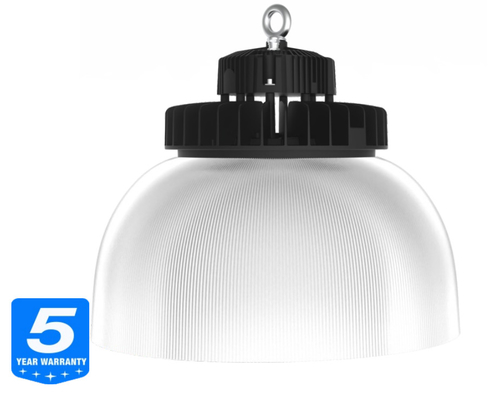

100W 150W 200W HB4.5 Pluggable Motion Sensor UFO High Bay 160LPW 5

100W 150W 200W HB4.5 Pluggable Motion Sensor UFO High Bay 160LPW 6

100W 150W 200W HB4.5 Pluggable Motion Sensor UFO High Bay 160LPW 8

Packaging Information

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-CGXP	3.8	310310150	4.9	1PCS/CTN
DR-HB150-DGXP	4.1	310310150	5.4	1PCS/CTN
DR-HB200-DGXP	4.4	370370170	5.6	1PCS/CTN

Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
