| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE, ROHS,TUV |
| Model Number: | DR-HB200-XGXP |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Package,OEM/ODM Package Available,2PCS/CTN |
| Delivery Time: | 5-15 business days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50000PCS/Month |
| Rated Power: | 200W | Luminaire Efficiency: | 160LPW |
|---|---|---|---|
| Beam Angle: | 60°/90°/120° | Input Voltage: | AC100~277V 50-60Hz |
| PF: | >0.95 | IK: | IK08 |
| High Light: | IK08 Protection LED High Bay Lamp,SMD2835 160LPW LED High Bay Lamp |
||

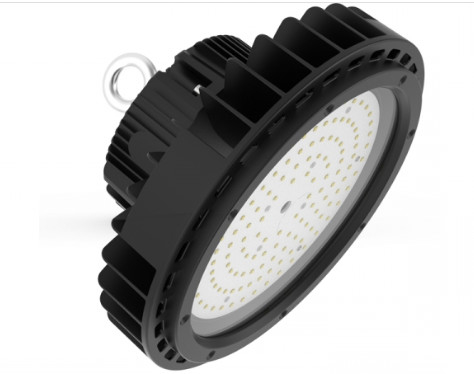

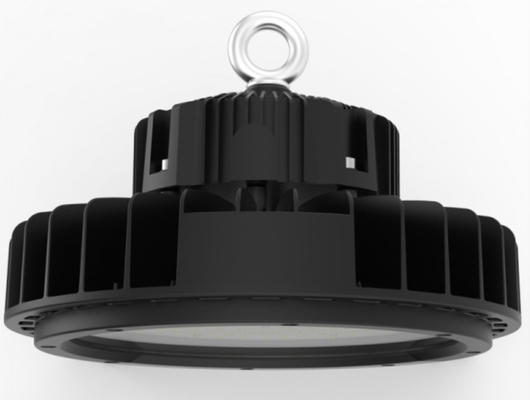

High Power LED High bay Lamp Meanwell Driver For Public Square Industrial Warehouse
Features:
> High Brightness SMD2835 LEDs (1W), LIFUD / SOSEN Round/Rectangle Driver;
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;

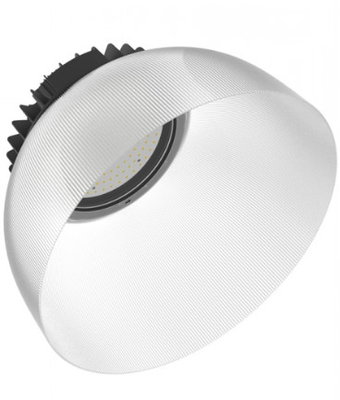

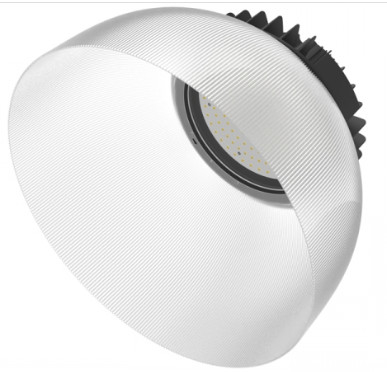

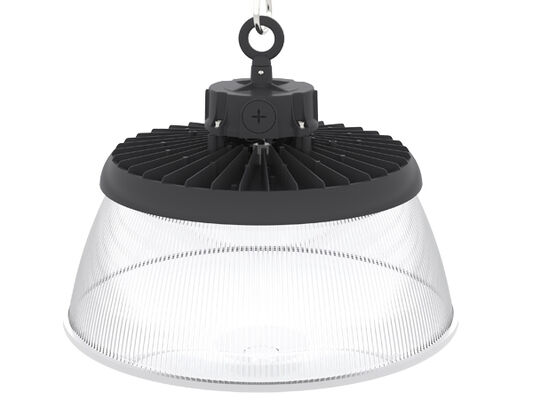

> 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector is Necessary;

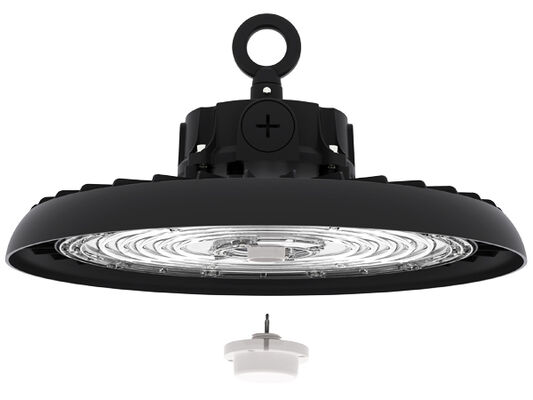

> Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> L70/B20 @ 68.000h;
| Model No. |
DR-HB100-XGXP
|
DR-HB150-XGXP
|
DR-HB200-XGXP
|
| System Watts/W |
100W
|
150W
|
200W
|
| System Efficiency/LPW |
140LPW / 160LPW Optional
|
||
| Lumen Output/lm |
14.000 / 16.000±5%
|
21.000 / 24.000±5%
|
28.000 / 32.000±5%
|
| Rated Input Voltage/V |
AC100~277V, 50/60Hz
|
||
| LEDs Light Source |
SMD2835 (1W)
|
||
| SDCM |
<5
|
||
| CCT/K |
5000K for Standard (3000K/4000K/5700K/6500K Optional)
|
||
| CRI/Ra |
>70Ra (>80Ra for Option)
|
||
| Power Factor |
>0.95
|
||
| THD |
<10%
|
||
| Beam Angle(Optional) |
60°/90°/120° Optional
|
||
| UGR |
<25
|
||
| Surge Protection |
3.75~4KV SPD built in Driver
|
||
| LED Driver |
LIFUD / SOSEN Round/Rectangle Driver
|
||
| IP Rating |
IP65
|
||
| Dimming(Optional) |
0/1-10V/Zigbee
|
||
| Sensor(Optional) |

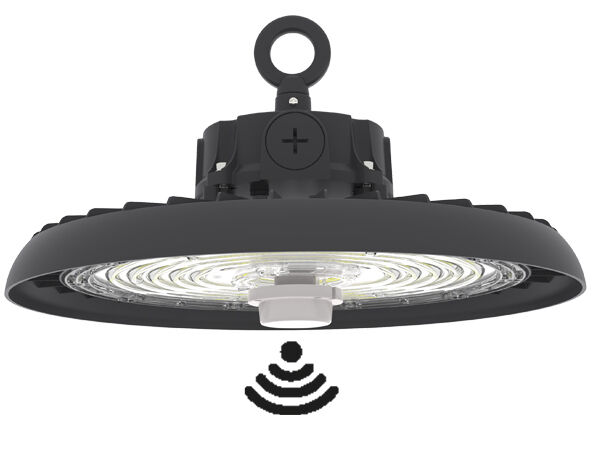

Motion Sensor,Daylight Sensor
|
||
| Emergency(Optional) |
Available (30W @ 3Hrs for Standard)
|
||
| Protection Class |
ClassⅠ
|
||
| Finishing Color(Optional) |
Black RAL9017(Standard) / White RAL9016 Optional
|
||
| Material |
Aluminum+PC (Toughened Glass Cover Optional)
|
||
| Lifespan/hrs |
60.000 Hrs (Ta=30℃@L70)
|
||
| Model No. | Net Weight/Kg | Outer Carton Size/mm | Gross Weight/Kg | QTY”/CTN |
| DR-HB100-CGXP | 3.8 | 310*310*150 | 4.9 | 1PCS/CTN |
| DR-HB150-DGXP | 4.1 | 310*310*150 | 5.4 | 1PCS/CTN |
| DR-HB200-DGXP | 4.4 | 370*370*170 | 5.6 | 1PCS/CTN |
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Contact Person: Mr. David Lau
Tel: 86-18620309436
Fax: 86-755-61641072
