Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE, ROHS,TUV |
Model Number: | DR-HB100-XGXP |
Minimum Order Quantity: | 2PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Netural Package,OEM/ODM Package Available,2PCS/CTN |
Delivery Time: | 5-15 business days |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 50000PCS/Month |
Rated Power: | 100W | Luminaire Efficiency: | 160LPW |
---|---|---|---|
CRI: | >80Ra | Beam Angle: | 60°/90°/120° |
Input Voltage: | AC100~277V 50-60Hz | PF: | >0.95 |
IP: | IP65 | IK: | IK08 |
High Light: | IP65 IK08 LED High Bay Light,5000K Led Ufo High Bay Light |

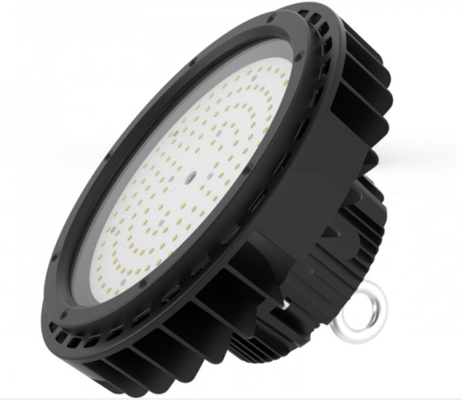

Dualrays 100W HB4.5 LED High Bay Light 17000LM IP65 IK08 UFO Commercial Lighting 5000K
Efficiency:
STANDARDLine: PROLine: 140LPW
PRIMELine: 160LPW

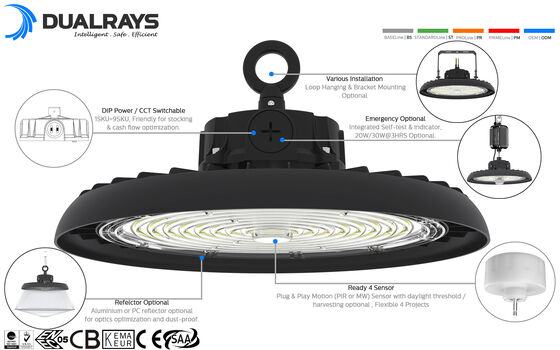

Features:
> IP65 / IK08 Protection;

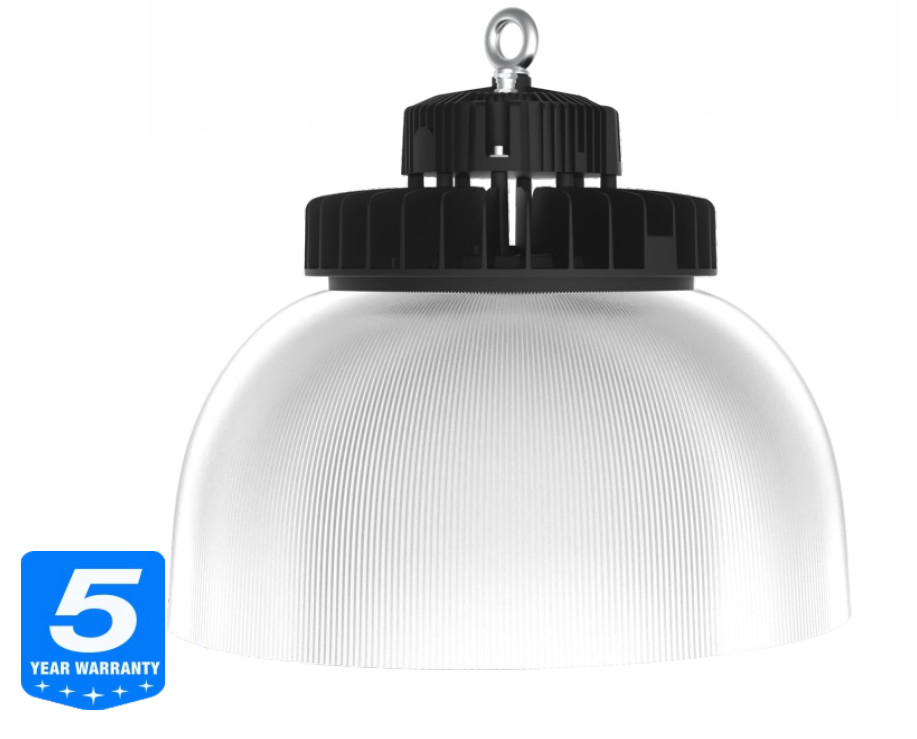

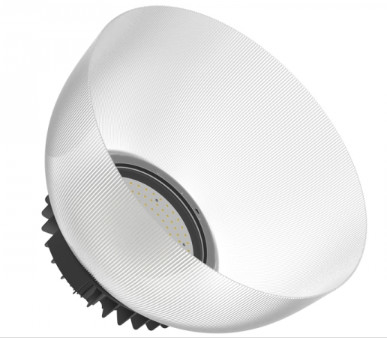

> 60°/90° (with PC/Al Cover)/120°(with Al Refelctor) Reflector is Necessary;
> Corrosive Resistant Powder Coated Finish;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;

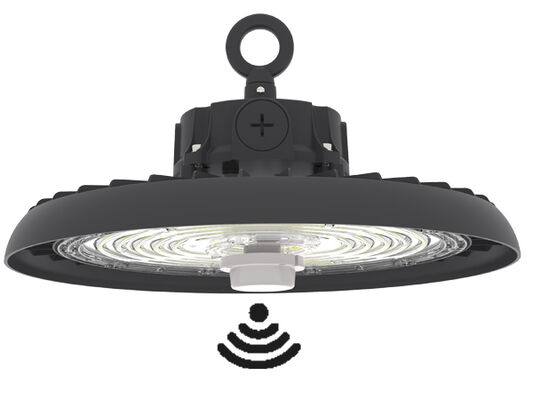

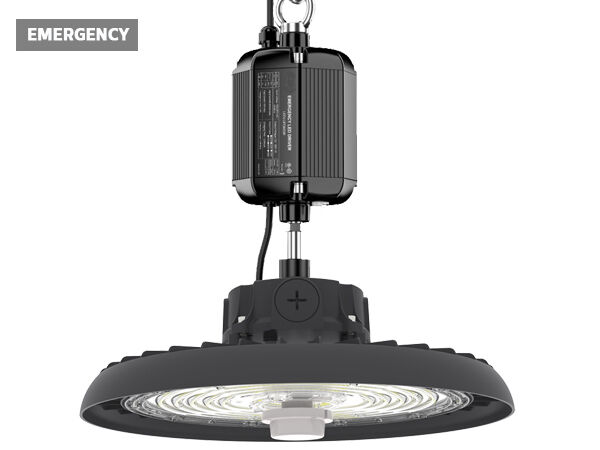

> Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> L70/B20 @ 68.000h;
> Customized supported for special projects;> High Brightness SMD2835 LEDs (1W), LIFUD / SOSEN Round/Rectangle Driver;
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity;
Model No. | DR-HB100-XGXP | DR-HB150-XGXP | DR-HB200-XGXP |
System Watts/W | 100W | 150W | 200W |
System Efficiency/LPW | 140LPW / 160LPW Optional | ||
Lumen Output/lm | 14.000 / 16.000±5% | 21.000 / 24.000±5% | 28.000 / 32.000±5% |
Rated Input Voltage/V | AC100~277V, 50/60Hz | ||
LEDs Light Source | SMD2835 (1W) | ||
SDCM | <5 | ||
CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||
CRI/Ra | >70Ra (>80Ra for Option) | ||
Power Factor | >0.95 | ||
THD | <10% | ||
Beam Angle(Optional) | 60°/90°/120° Optional | ||
UGR | <25 |
Model No. | Net Weight/Kg | Outer Carton Size/mm | Gross Weight/Kg | QTY”/CTN |
DR-HB100-CGXP | 3.8 | 310*310*150 | 4.9 | 1PCS/CTN |
DR-HB150-DGXP | 4.1 | 310*310*150 | 5.4 | 1PCS/CTN |
DR-HB200-DGXP | 4.4 | 370*370*170 | 5.6 | 1PCS/CTN |
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
