Europe Warehouse HB5 highbay light with integrally mold forged aluminum housing and advanced LED technology delivering and illumination

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	HB5

Payment & Shipping Terms:

Minimum Order Quantity:	5PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM/ODM/OBM Package Available
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	200W	Beam Angle:	DIP Switchable Optical Lens (60°/90°/110°) Optional(200W PROLine Version)
Input Voltage:	AC100~277V 50-60Hz	Guarantee:	5 Years (Extensible Up To 7 Years)
IK:	IK08	Luminous Efficacy:	150LPW (PROLine) \| 170LPW (PRIMELine) \| 190LPW (ULTRALine) Optional
Flicker Factor:	＜1%Perceptibility Of Stroboscopic Effects (Pst) ＜1	Dimming Control:	ON-OFF \| 1-10V Dimming \| DALI-2 \| Zigbee
Highlight:	200W UFO High Bay IK08 Protection , IP65 ZIGBEE Led High Bay Light Ufo

Europe Warehouse HB5 highbay light with integrally mold forged aluminum housing and advanced LED technology delivering and illumination

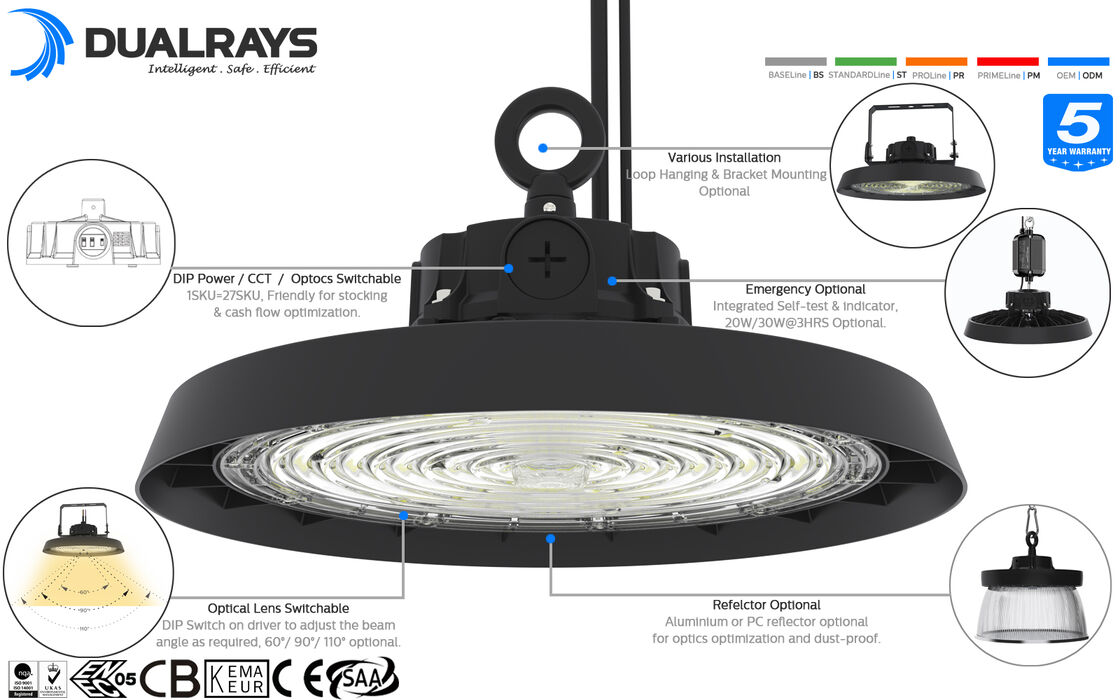

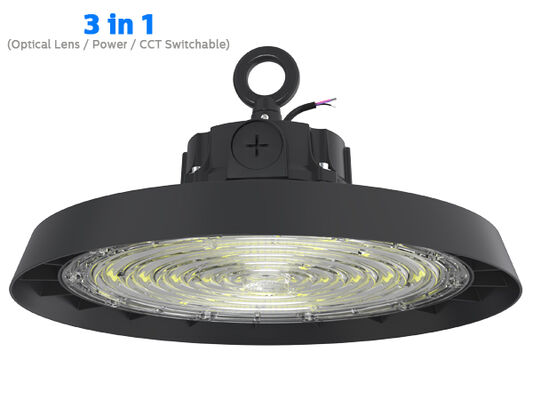

The HB5 highbay light is an outlier in many respects. Its exceptionally high luminous efficacy of up to 192 lm/W results in significant energy savings. In addition, 3 adjustable levels of brightness, 3 optical lens with 60°/90°/110° and a color temperature that can be set to 3000K, 4000K or 5000 K with DIP switch on the driver to maximize its usability,means 1SKU=27SKU, friendly for stocking and cash flow optimization. Finally, the HB5 highbay light is available for smart functions, such as PIR with daylight threshold or radar-controlled motion sensor with daylight threshold or daylight harvesting, offer the benefits and comfort of an intelligent lighting solution literally in an instant.

* ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity;

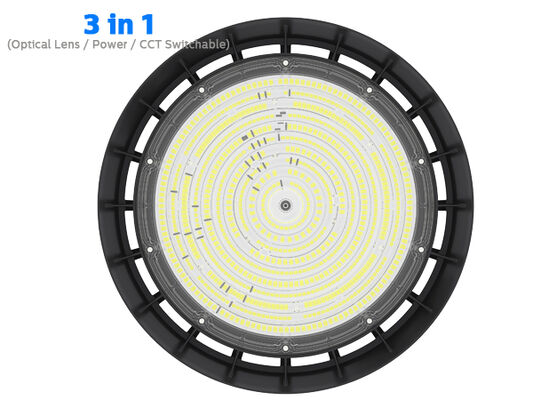

* SAN'AN / LUMILEDS High Brightness SMD2835 LEDs, DUALRAYS Own-developed Driver or SOSEN / PHILIPS Driver Optional;

* IP65 / IK08 Protection;

* 60°/90°/120°beam angle optional;
* Corrosive Resistant Powder Coated Finish;

* Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
* Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

* 3 CCT optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K);

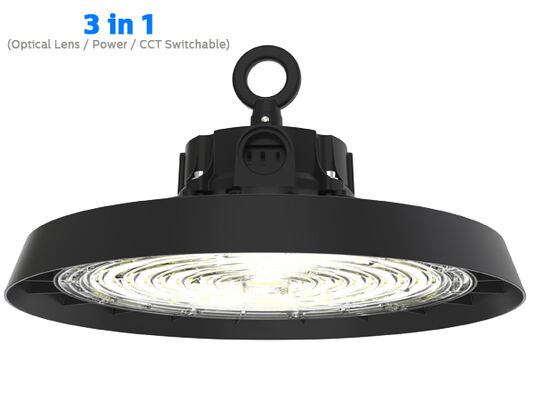

* DIP Switchable Power as Standard(100%-80%-60%);

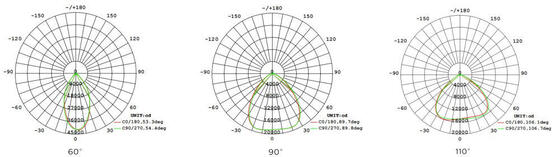

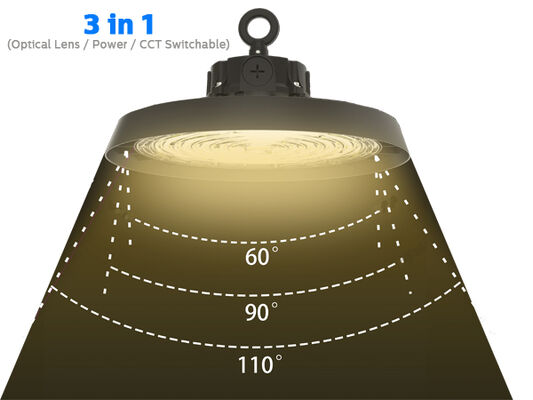

* DIP Switchable Optical Lens (60°/90°/110°) Optional(200W PROLine Version);

* No UV or IR and completely mercury free;

* L80/B10 @ 65.000h;
* Customized supported for special projects;

Options:

> Driver: Meanwell/PHILIPS/SOSEN.

> 3 CCT optional;

> DIP Switchable Power (100%-80%-60%);

> DIP Switchable Optical Lens (60°/90°/110°) Optional(200W PROLine Version)

> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

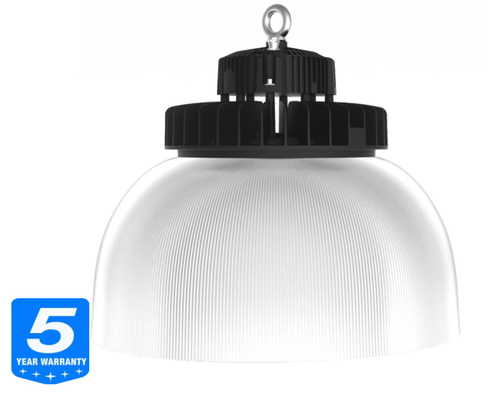

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Replacement for traditional HID or MH light source;

> Factory halls and production areas;

> Warehouses and logistics halls;

> Hardware stores and megastores;

> Stadiums and other sports facilities;

> Traditional lamp replacement;

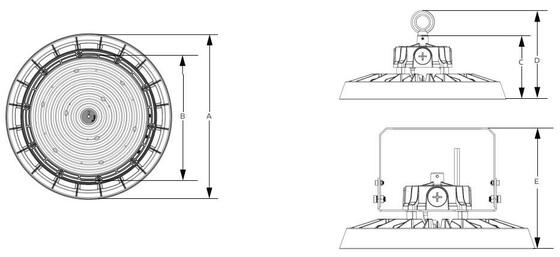

Power/W Size A / mm Size B / mm Size C / mm Size D / mm Size E / mm

100 φ250 φ184 125 180 205

150 φ290 φ226 125 180 205

200 φ330 φ265 125 180 205

240 φ360 φ300 125 184 205

300 φ360 φ300 125 184 205

General System

Housing Material: High pressure die-cast ADC12 aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN
AC-44100,EN AC-47100 according to the UNE EN 1706 standard powder coated

Diffuser Material: Injected PC according to the UNE-EN ISO 294-2:2019 standard, UV filter conditional(IK08)

Housing Color: Metallic Black (RAL9017), Other colors optional

Sealing Gaskets: Silicone foam

LEDs Thermal Dissipation: Through finless ADC12 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste

Optical system: Lens optic, PC/alu-reflector optional

Finish: Polyester powder paint coating, electrostatically sprayed and sublimated in the oven, Resistant to corrosion

Recommended Mounted Height: 5 - 15 meters

Maintenance: LED not exchangeable, driver exchangeable

Driver: Constant current with optional power adjustable via DIP switch, embedded in luminaire, pre-wired

Dimming Control: ON-OFF | 1-10V dimming | DALI-2 | Zigbee

IP (Ingress Protection Rating): IP65

IK (Impact Resistance): IK08

Protective Class: Class Ⅰ

Glow Wire: 750°C (Under 30s)

Cable Gland: Plastic M20x1.5 – IP68 | Plastic M25x1.5 – IP68 (optional)

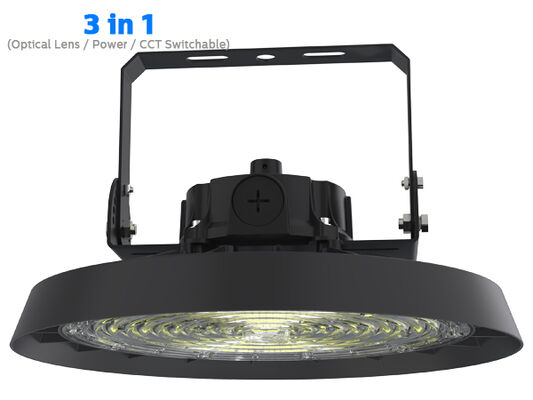

Installation: Loop Hanging | Bracket Mounting

Smart Function: PIR Sensor with daylight threshold| Microwave Sensor with daylight threshold or daylight harvesting| Emergency

Upward light output ratio: ULOR 0

Downward light output ratio: DLOR 100%

Electrical System

Electrical connection: 0.3m 3*1.0mm2 as stand, max 3x2.5mm2 + 2x1.5 mm2 dimming wire, free wire ends, tailored length wire with EU/AU/US plug for option

Main Voltage: 100~277VAC/ 50/60Hz, 140-280VDC

Power Factor (PF): ≥0.97

Total Harmonic Distortion (THD): ＜20%

Surge Protection: DM: 6kV,CM: 6kV,Criterion B

SPD (Optional): Type 2, 10kV and 20kA transient surge protector. Series connection with thermofuse
disconnector for a more effective protection at the end of its service life

Output Type: Non-SELV(non-isolated)

Flicker Factor: ＜1%Perceptibility of Stroboscopic Effects (Pst) ＜1

Stroboscopic Visibility Measure (SVM): ＜0.4

Perceptibility of Stroboscopic Effects (Pst): ＜1

Luminaires Power B10A B16A C10A C16A

100W 6 10 11 17

Module via LSS Circuit Breakers 150W 4 6 6 10

200W 3 5 6 8

240W 3 4 5 7

300W 2 3 4 6

Photometry System

LEDs: SMD2835 (1W)

CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K)

3CCT optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K for choice)

CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available)

Photobiological Safety: RG0 (exempt of risk)

EEC (Energy Effciency Class): A++

SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional)

UGR (4H, 8H) : 33.9 (Cross)

33.9 (Longitudinal)

Beam Angle: 60° | 90° | 120° Optional

Average Luminaire Useful Lifetime: 65.000 hours (L80B10)

Lumen Maintenance at e.o.l. >70%

Luminous Efficacy: 150LPW (PROLine) | 170LPW (PRIMELine) | 190LPW (ULTRALine) Optional

Rated Power: 100W DIP(60/80W/100W) 150W DIP(100W/120W/150W) 200W DIP(120W/150W/200W) 240W DIP(150W/200W/240W) 300W DIP(180W/240W/300W)

(PRO) Max. 15.000lm Max. 22.500lm Max. 30.000lm Max. 36.000lm Max. 45.000lm

Lumens Delivered

@ 5000K, CRl>80 (PRIME) Max. 17.000lm Max. 25.500lm Max. 34.000lm Max. 40.800lm Max. 51.000lm

(ULTRA) Max. 19.000lm Max. 28.500lm Max. 38.000lm Max. 45.600lm Max. 57.000lm

Operation Condition

Operation Temperature / Humidity: -30~ +60℃ (-22°F ~ 140°F) / 5~85% RH, not condensed

Storage Temperature / Humidity: -30~ +80℃ (-22°F ~ 176°F) / 5~85% RH, not condensed

Average LED Useful Time L80B10: ≥100.000H

Rated Nominal Lifetime (Tp <70℃): Up to 100,000H

Driver MTBF: 198.000H,MIL-HDBK-217F(25℃)

Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes

Acoustic Noise: ＜25dB (30cm disstance, Normal operation)

Guarantee: 5 Years (Extensible up to 7 years)

Certifications

Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471

EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384

Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11

* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

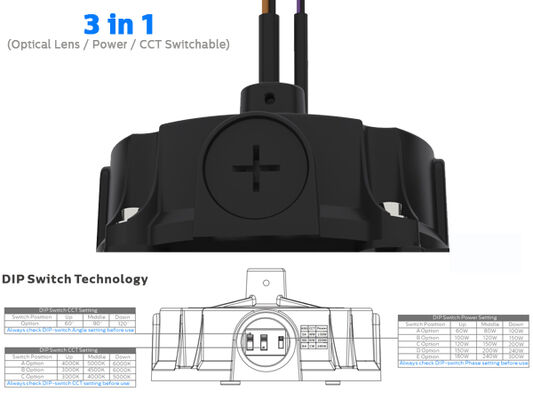

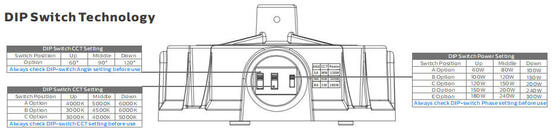

1. Power OFF the luminaire first.
2. Carefully remove the IP65 cover by hand.
3. Adjust the slide-switch by hand to the desired setting - Do NOT use any metal tool.
4. Put the IP65-cover back in place.
5. Power ON the luminaire.

Take out the bracket from the installation Fix the bracket on highbay with screw driver, Finished.
side of bracket, and wiring 3 wires to the driver. connect the microwave sensor on the other
package .

Turn off the power, connect AC wire.
Dimming connection ( With dimmable driver)
1.Compatible with 0-10V dimming.
2.Connect wires as above diagram.

Power/W Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton

100 270x270x150mm 790x283x292mm 5PCS 2.4Kg 14.2Kg

150 310x310x150mm 790x323x332mm 5PCS 2.6Kg 15.6Kg

200 350x350x150mm 790x363x372mm 5PCS 2.8Kg 16.9Kg

240 380x380x150mm 790x393x402mm 5PCS 3.1Kg 18.2Kg

300 380x380x150mm 790x393x402mm 5PCS 3.2Kg 18.6Kg

Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!

Statement:
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.

Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without the official confirmation from the manufacturer. If any misapplication happens, the warranty policy is no longer guaranteed.

Europe Warehouse HB5 highbay light with integrally mold forged aluminum housing and advanced LED technology delivering and illumination 33

* Professional team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

Europe Warehouse HB5 highbay light with integrally mold forged aluminum housing and advanced LED technology delivering and illumination 34

Europe Warehouse HB5 highbay light with integrally mold forged aluminum housing and advanced LED technology delivering and illumination 35

Europe Warehouse HB5 highbay light with integrally mold forged aluminum housing and advanced LED technology delivering and illumination 36

Shipment:

Europe Warehouse HB5 highbay light with integrally mold forged aluminum housing and advanced LED technology delivering and illumination 40
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Europe Warehouse HB5 highbay light with integrally mold forged aluminum housing and advanced LED technology delivering and illumination 41 Q1: What is the warranty for the HB5 Highbay light?

RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q3: What is CRI?

RE: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly >80Ra,and 90Ra with higher cost.

Q4: Can I only buy the housing separately?

RE:Sorry,we only supply the whole luminaire fixture,but SKD/CKD can be accepted.

Q5:Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus
our ship partner send to your door.

Q6:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q7: Dimming functions?

RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q8:What are the applications of your HB4H Highbay light?

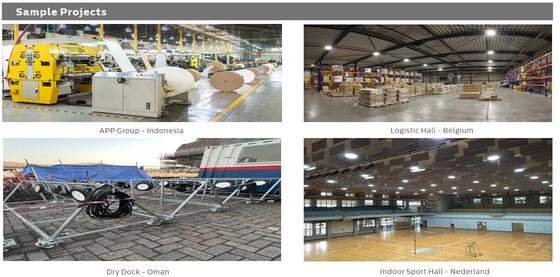

RE:Our higbay light can be applied in the following occassions:

Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement,etc.

Welcome to contact us for more information, visit our official website www.DUALRAYS.com or send us email to info@DUALRAYS.com to get the latest information and support.
