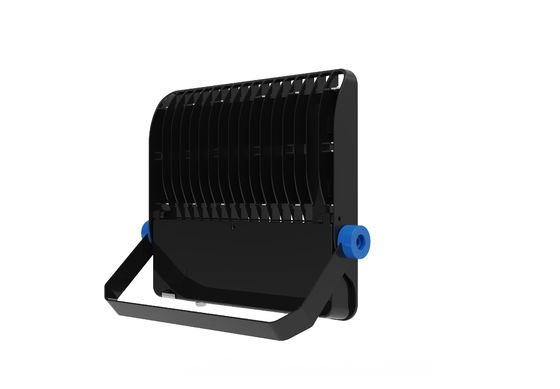

| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL100-XGXX |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | US$113.72/pcs~US$128.65/pcs |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Rated Power: | 100W | LEDs Typ: | SMD3030 |
|---|---|---|---|
| Luminaire Efficiency: | 140lm/W | AC Input Vol: | AC100~277V 50/60Hz |
| Power Factor: | PF>0.9 | Lumen Maintenance @ 6000 Hrs: | >90% |
| Switching Cycle Before Failure: | 100,000 | Life Span: | >50,000 |
| Highlight: | 100W led flood lights ip66,Meanwell Driver led flood lights ip66,IP66 floodlights for sports fields |
||
Daulrays F3.5 Series 400W Meanwell Sosen Driver Optional LED Sports Ground Floodlights IP66 Protection with 5 Year
Daulrays F4 Series 500W Modular LED Floodlight--Datas Sheet
|
Item No.
|
DR-FL500-XGXX
|
Controls and Dimming
|
1-10V, DALI, PWM,Zigbee Wireless Dimming
|
|
Input Voltage
|
AC100-277V 50/60HZ
|
CRI
|
>80
|
|
Power5
|
0W
|
IP Ranking
|
IP66
|
|
Working Temp
|
-40 to +50℃
|
Power Factor (PF)
|
＞0.9
|
|
Luminous Flux
|
56,000lm
|
Warranty
|
5 years
|
|
Driving Brand
|
Meanwell/Sosen
|
LED Efficiency
|
140LPW
|
| Model No. | DR-FL050-XGXX | DR-FL100-XGXX | DR-FL200-XGXX | DR-FL300-XGXX | DR-FL400-XGXX |
| System Watts/W | 50W | 100W | 200W | 300W | 400W |
| System Efficiency/LPW | 135~140LPW | ||||
| Lumen Output/lm | 7.000±5% | 14.000±5% | 28.000±5% | 42.000±5% | 56.000±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
| LEDs Light Source | SMD3030 | ||||
| SDCM | <5 | ||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
| CRI/Ra | >70Ra (>80Ra for Option) | ||||
| Power Factor | >0.95 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 30°/60°/90° Optional | ||||
| UGR | <25 | ||||
| Surge Protection | 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | ||||
| LED Driver | SOSEN / Meanwell ELG Optional | ||||
| IP Rating | IP66 | ||||
| Dimming(Optional) | 1-10V, DALI,PWM,Zigbee for Option | ||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | ||||
| Sensor (Optional) | Motion Sensor | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional | ||||
| Material | Aluminum+PC | ||||
| Lifespan/hrs | 63.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Switching Cycles | 100,000 Times | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
Packaging Information:
| Model No. | Power | Outer Carton Size(MM) | G.W(KG) | Quantity/CTN |
| DR-FL050-DGXP | 50W | 340*110*190 | 2.8 | 1PCS |
| DR-FL100-DGXP | 100W | 340*110*250 | 4.3 | 1PCS |
| DR-FL150-DGXP | 150W | 340*110*330 | 5.2 | 1PCS |
| DR-FL200-DGXP | 200W | 340*120*400 | 6.7 | 1PCS |
| DR-FL250-DGXP | 250W | 340*120*480 | 7.8 | 1PCS |
| DR-FL300-DGXP | 300W | 340*120*560 | 9.2 | 1PCS |
| DR-FL400-DGXP | 400W | 600*140*400 | 12.6 | 1PCS |
| DR-FL500-DGXP | 500W | 600*140*480 | 13.7 | 1PCS |
| DR-FL600-DGXP | 600W | 600*140*550 | 15.7 | 1PCS |
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
