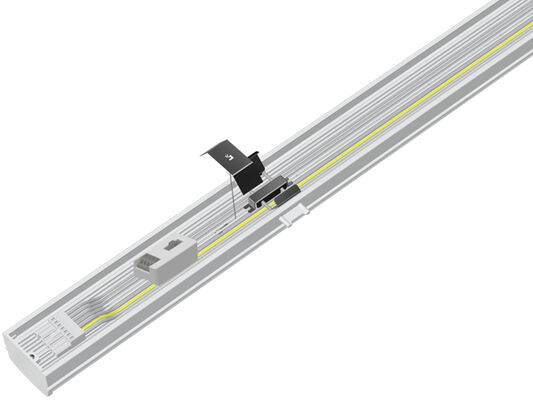

Universal Linear Retrofit LM5,Dualrays Self-designed module for Replacement of T5/T8 light
Quick detail:
> BASELine Version:
> STANDARDLine Version:
> PROLine Version: 125LPW(PC Cover) ~ 140LPW(E-type Lens)
> PRIMELine Version: 160LPW(PC Cover) ~ 180LPW(E-type Lens)
> Compatible with 95% leading trunking systems installed in the past 25 years;
> Any physical modifications on the existing trunking system is not necessary;
> Safety chain reserved for labor cost saving and double safety assurance;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;
Specifications:
| Product Name |
Dualrays LM5 Linear Retrofit Module |
| Model No. |
|
|
System Efficiency/LPW
|
PC COVER-125LPW / 150LPW
E-type Lens-130LPW/160LPW
|
|
Rated Input Voltage/V
|
AC180~264V, 50/60Hz
|
| Led chips |
SMD2835 (0.5W)
|
|
CCT/K
|
3000K ~6500K
|
|
CRI/Ra
|
>80Ra
|
|
Power Factor
|
>0.95
|
|

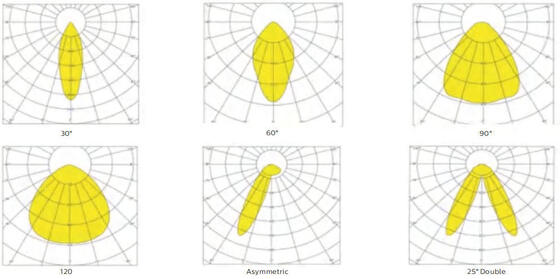

Beam Angle(Optional)
|
120°
|
|
LED Driver
|
OSRAM,BOKE,TRIDONIC |
|
Dimming(Optional)
|
Non-dimming/DALI |
|
Installation(Optional)
|
Loop Hanging, Ceiling Mounting, Wall Mounting
|
Advantage:

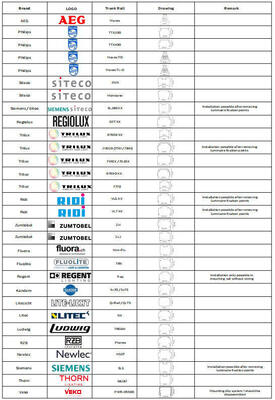

1.Compatible with Most popular Trunking systems installed in the past 25 years ;
2.Doesn’t need any electrical modifications;
3.Doesn’t need any physical modifications on the existing trunking system,just plug and play;
4.Perfect retrofit solution to replace the old 2 x36w, 1 x58w and 2 x58w T5/T8 fluorescent light with and without reflectors
Easy Maintenance
Smooth and easy to clean or interchangeable optic system
In Dirty environments luminaires quickly accumulate a lot of dust which will results in a significant decrease of the available light output while
the level of energy consumption remains the same, a significant decline of the luminaire efficiency is the result.
Due to the type of the accumulated dust, the maintenance manager will have two options as below:
Option 1. Clean the luminaires every 1 or 2 years for the optic.
Solution from DUALRAYS: Due to DUALRAYS smooth PMMA lens design this task is done easily and quickly.
Option 2. Exchange the lens because cleansing is not possible anymore.
Solution from DUALRAYS: the operation takes 2 minutes and requires a Phillips (Crosshead) screwdriver only.
Double the initial lifespan
For LED luminaire, driver is the weakest component, we use brand driver with high quality,which provides a life span of 58.000
hours (L80/B10), which is only 50% of the LEDs lifespan (93 000 hours).
It takes less than 3 minutes to exchange the driver (after 50.000 hours)with a simple Phillips (crosshead) screwdriver. With this
simple step you can double the lifespan of linear module to up to 93 000 hours, at an estimated third of the initial price only
Details Demo
