Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS(OEM available) |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-FL500-EGXP |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50000PCS/Month |
Luminaire Efficiency: | 150lm/W | IP Rating: | IP66 |
---|---|---|---|
Power Factor: | PF>0.9 | Warranty: | 5 Years |
Power Supply: | SOSEN/Meanwell | IK Rating: | IK10 |
Life Span: | >50,000 Hours | Installations: | Ground/Wall/Ceiling/Pipe |
High Light: | 150lm/W Outdoor Project LED Floodlight,500W Outdoor Project LED Floodlight,SMD5050 Sports LED Floodlight |

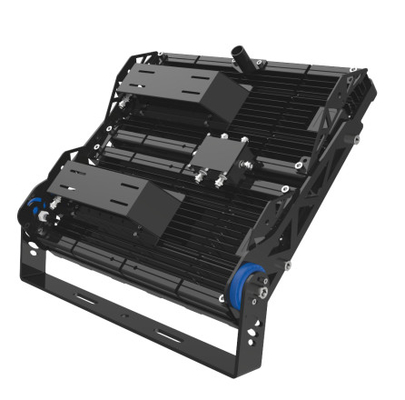

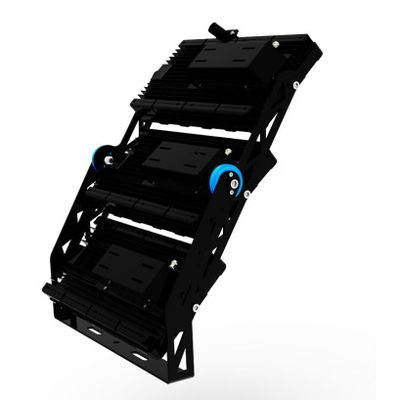

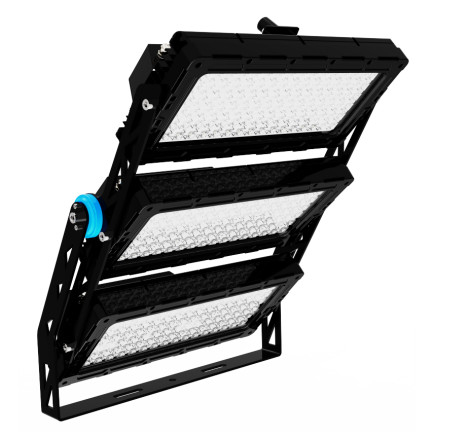

Sports Project LED Flood Light Surge Protector Device PFC Function Available
Model No.
|
DR-SPL300-EGXP | DR-SPL400-EGXP | DR-SPL500-EGXP | DR-SPL600-EGXP | DR-SPL800-EGXP | DR-SPL1000-EGXP |
System Watts/W
|
300W | 400W | 500W | 600W | 800W |
1000W
|
System Efficiency/LPW
|
150~160LPW | |||||
Lumen Output/lm
|
48.000±5% | 64.000±5% | 80.000±5% | 96.000±5% | 128.000±5% | 160.000±5% |
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||||
LEDs Light Source
|
SMD5050 | |||||
SDCM
|
<5 | |||||
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||||
CRI/Ra
|
>70Ra (>80Ra for Option) | |||||
Power Factor
|
>0.95 | |||||
THD
|
<10% | |||||
Beam Angle(Optional)
|
20°/30°/60°/90°/140*60° Optional | |||||
UGR
|
<25 | |||||
Surge Protection
|
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||||
LED Driver
|
Meanwell ELG/HLG | |||||
IP Rating
|
IP65 | |||||
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee for Option | |||||
Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||||
Start Time | 0.5s | |||||
Protection Class
|
ClassⅠ | |||||
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||||
Material
|
Aluminum+PC | |||||
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | |||||
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||||
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||||
Switching Cycles | 100,000 Times | |||||
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
DR-SPL300-EGXP
|
13.1
|
590*505*250
|
14.2
|
1PCS/CTN
|
DR-SPL400-EGXP
|
16.9
|
680*505*250
|
18.2
|
1PCS/CTN
|
DR-SPL500-EGXP
|
4.8
|
790*505*250
|
23.5
|
1PCS/CTN
|
DR-SPL600-EGXP
|
22.1
|
830*590*250
|
28.4
|
1PCS/CTN
|
DR-SPL800-EGXP
|
30.8
|
830*690*250
|
32.5
|
1PCS/CTN
|
DR-SPL1000-EGXP
|
36.5
|
830*790*250
|
39.8
|
1PCS/CTN
|
FAQ
Q1:How to design the stadium LED flood light?
RE:(1) The lighting design of the stadium LED floodlight, with the aim of energy-saving and emission-reducing green lighting, chooses stadium lights with advanced technical performance and excellent quality. Through optimizing design and scientific lighting, with the least investment in stadium lighting, the best stadium lighting effect can be achieved.
(2) The lighting quality target of basketball LED flood light.
1. Color rendering index 90
The color rendering index of the stadium LED flood light is as high as 90, which is very close to the sunlight and the color is pure. It can vividly display the real color of the stadium space and the surface of the object.
2. Glare index 25 (national standard 30)
The stadium LED floodlight lighting is not dazzling, not dazzling, not dazzling, and has no dazzling effect. In any position and any angle, the sphere flying in the air can be seen, clearly seen, seen real, and hit accurately.
3. No flicker.
The lighting effect is smooth and stable, without fluctuation, and no flicker hazard. It ensures that the sphere is flying in the air without ghosting, the flight trajectory is real, the air positioning is accurate, and the hitting is accurate.
4. Low light decay and long service life
The light attenuation is small, the current margin is large, the chip rated current is 60mA, and the actual use is only 40mA, which increases the life of the lamp and improves the utilization efficiency. The lamp beads have passed LM-80 certification.
5. Energy saving
Fully meet the lighting requirements of the stadium's LED floodlights, achieve the minimum power consumption of the stadium, and achieve real energy saving. The lighting design of the stadium has been optimized and selected stadium lamps. The power consumption of the stadium lighting is determined as the lighting power consumption of the entire stadium lighting, controlled within 3 kWh per hour.
