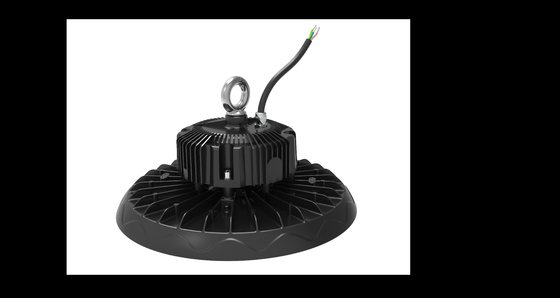

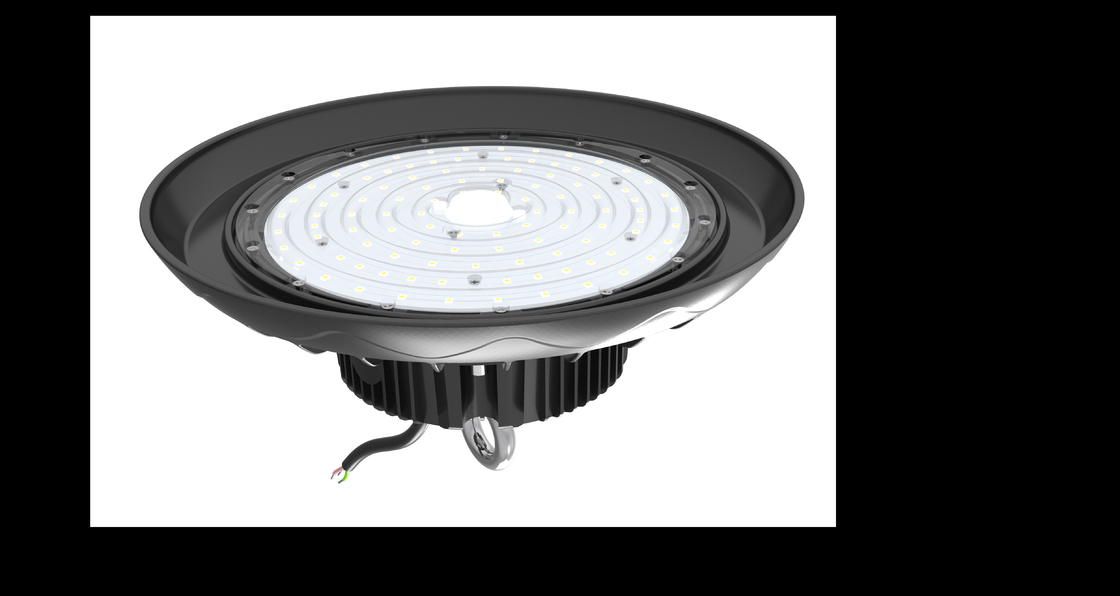

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories

  • hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories
  • hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories
  • hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS(OEM available)
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB100-BGXP
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Please inquiry for latest price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Input Voltage: AC100~277v 50/60Hz Driver: Meanwell/Sosen
LED Source: SMD3030 Power Factor: 0.95
CCT: WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K Warranty: 5 Years
High Light:

SMD3030 UFO High Bay Light

,

80Ra UFO High Bay Light

,

CCT Beam Angle High Bay Light

140LPW 100W UFO LED High Bay Light IP65 strong Housing​

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 0

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 1
Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen;
> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90° (with Pearl or Stripe Lens)/120° (without PC or Toughened Glass Cover) /140° (with Grille
Stripe PC Cover);
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 2
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement


hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 3

Model No.
DR-HB100-BGXP DR-HB150-BGXP DR-HB200-BGXP
System Watts/W
100W 150W 200W

System Efficiency/LPW
140LPW
Lumen Output/lm
14.000±5% 21.000±5% 28.000±5%
Rated Input Voltage/V
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
60°/90°/120°/140°
UGR
<25
Surge Protection
3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Meanwell HBG/ELG/HLG,Sosen
IP Rating
IP65
Dimming(Optional)
0/1-10V/DALI/Zigbee
Sensor(Optional)
Motion Sensor,Daylight Sensor
Emergency(Optional)
Available (30W @ 3Hrs for Standard)
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs
70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available





hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 4

Character/Power
100W
150W
200W
240W
300W
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 5
A / mm
Ø280
Ø338
Ø400
Ø400
Ø440
B / mm
164
182
164
172
182


hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 6

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 7

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 8
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 9
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 10
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 11

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 12

DALI Device
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 13

DALI Intelligent Control Diagram
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 14 hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 15


DALI Intelligent Control Operator Interface
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 16


hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 17
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 18
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 19
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 20
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 21
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 22
hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 23

hi-eco version 100w 140 lpw LED UFO High Bay Light 80Ra according to ce saa standard for factories 24

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-HB100-EGXP
4.2
355*350*165
4.9
1PCS/CTN
DR-HB150-EGXP
4.6
415*410*175
5.4
1PCS/CTN
DR-HB200-EGXP
4.8
475*470*195
5.6
1PCS/CTN
DR-HB240-EGXP
6.9
475*470*195
7.8
1PCS/CTN
DR-HB300-EGXP
7.5
500*495*195
8.8
1PCS/CTN




FAQ



Q1:Why is the workshop suitable for LED high bay lights? Where is the advantage of LED miner's lamp?
RE:In fact, among LED lamps, LED high bay lamps are a kind of high-power LED lamps, which are widely used. Generally, in warehouses, open yards, goods yards, warehouses or workshops, factories, etc., only these special lamps are used for lighting. , But its obvious advantages are obvious. It has a relatively long service life, a relatively large energy consumption, and it is a chemical substance that does not contain a lot of radiation and mercury. It is one of the most widely used lamps.

1. The LED high bay light adopts wide voltage design. When the voltage fluctuates, the total power of the lamp body is basically unchanged, avoiding stroboscopic, and ensuring the stability of the lighting environment for workers.

2. Compared with traditional halogen lamps and high-pressure sodium lamps, it uses LED planar integrated light source, pollution-free materials and ultraviolet and infrared radiation to create a healthy and comfortable working environment.

3. Using traditional LED planar integrated light source, low thermal resistance and low temperature rise. The lamp housing is a part of the radiator and directly transfers heat.

Fourth, make full use of the advantages of LED instant start, use LED high bay lights in a large area to instantly start lamps and improve work efficiency.

In fact, as one of the main uses of LED high bay lights, the energy saving effect is very obvious. Generally speaking, such products will use high-power chips to produce high-power product quality, and can be equipped with high-efficiency power supplies. Compared with lamps with the same brightness, it can save 75% of energy consumption. What is the energy saving effect? Because of its special chip composition, this product has a long service life, and it can guarantee that the service life will be around 500,000 hours, which is one of the reasons why people like it. In addition, the led miner's lamp is green and pollution-free, does not contain special chemicals such as aluminum, and will not cause harm to users and environmental pollution. But some users will use it to decorate, the effect is good. People will use a special appearance for processing, coupled with its simple installation, the scope of use will be wider.
