IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency

IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency

  • IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency
  • IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency
  • IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency
  • IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency
Product Details:
Place of Origin: Shenzhen, China
Brand Name: DUALRAYS(OEM available)
Certification: CE, ROHS, TUV/GS, LM79, LM80
Model Number: DR-LB150-FG3XX
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Please inquiry for latest price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 bussiness days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 120000pcs/month
Contact Now
Detailed Product Description
Input Voltage: AC100~277V 50/60Hz Driver: Meanwell/Sosen
LEDs: EPISTAR Efficiency: 150LPW
PF: 0.98 CCT: WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
CRI: >80Ra Body: Aluminium Alloy+PC
Package: Normal Export Carton Box Applications: Factory/Warehouse/Workshop/Exhibition Center...
High Light:

IP65 LED Linear Low Bay Light

,

140LPW LED Linear Low Bay Light

,

200W Linear Led High Bay

150W IP65 LED Linear Low Bay Light Heavy 6063 Aluminum PC Meanwell Driver

IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 0

IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 1

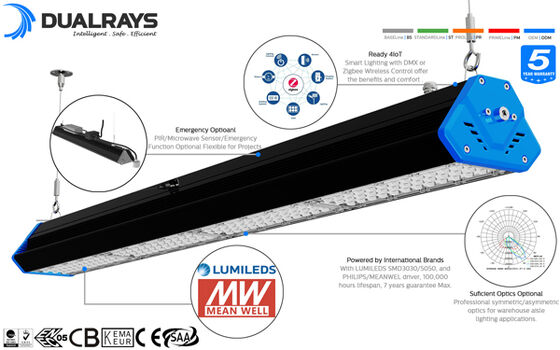

Options:

> Driver: Sosen, Meanwell ELG/HLG;
> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

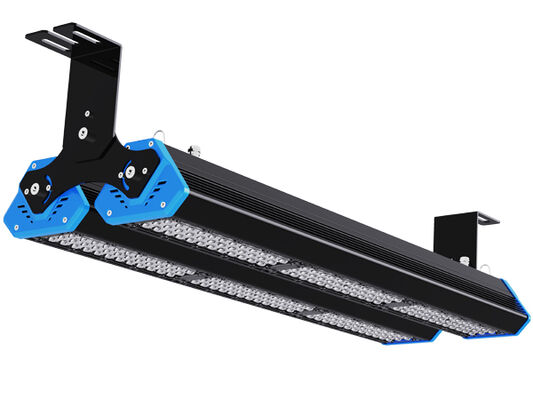

> Unit Combination : 2 Rows or 3 Rows Combination with Bracket;
> Lens : Symmetric 30°/60°/90°,Asymmeric 30*70°/80*155/60*90° beam angle;
> Installation: Suspension, Wall Mounting;

IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 2

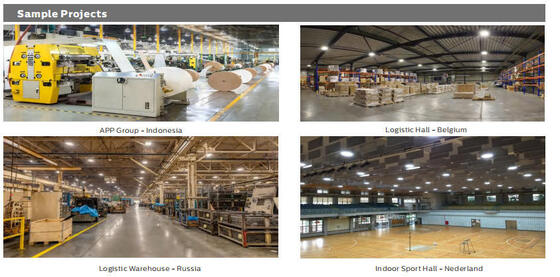

> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement


IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 3

Model No. DR-LB050-FG1XX DR-LB100-FG2XX DR-LB150-FG3XX DR-LB200-FG4XX DR-LB300-FG3XDX
System Watts/W 50W 100W 150W 200W
300W
System Efficiency/LPW 140LPW
Lumen Output/lm 7.000±5% 14.000±5% 21.000±5% 28.000±5% 42.000±5%
Rated Input Voltage/V AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source SMD3030
SDCM <5
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >70Ra (>80Ra for Option)
Power Factor >0.95
THD <10%

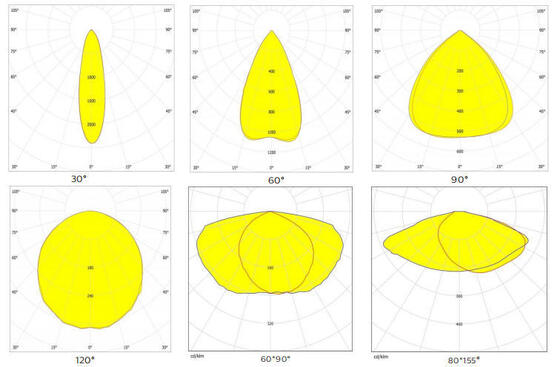

Beam Angle(Optional) 30°/60°/90°/30*70°/80*155/60*90°
UGR <25
Surge Protection 6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver Meanwell ELG/HLG,Sosen
IP Rating IP65
Dimming(Optional) 0/1-10V/DALI/Zigbee

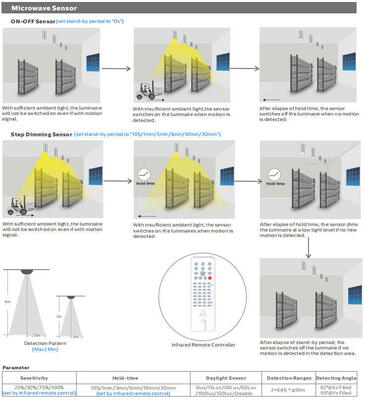

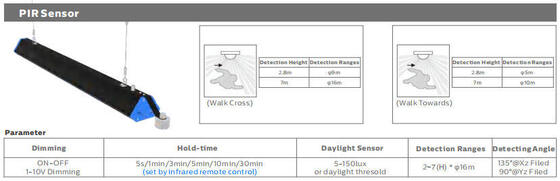

Sensor(Optional) Motion Sensor,Daylight Sensor

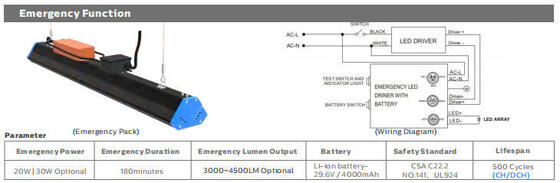

Emergency(Optional) Available (30W @ 3Hrs for Standard)
Protection Class ClassⅠ
Finishing Color(Optional) Black RAL9017(Standard)
Material Aluminum+PC
Lifespan/hrs 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)

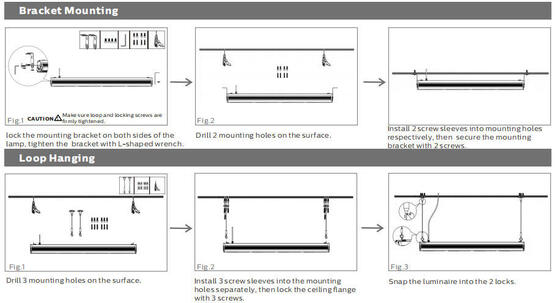

Installation(Optional) Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available





IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 4

Character/Power
100W
150W
200W
240W
300W
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 5 IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 6
A / mm
284.8
542.9
801
1058.6
801
B / mm
134
134
134
134
268
C / mm
110.5
110.5
110.5
110.5
110.5


IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 7



IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 8

IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 9
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 10

IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 11





DALI Device
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 12

DALI Intelligent Control Diagram
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 13 IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 14


DALI Intelligent Control Operator Interface
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 15


IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 16
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 17
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 18
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 19
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 20
IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 21




FAQ



Q1:What should I pay attention to befor installation?

RE:1. Before installation, read the installation instructions and precautions carefully, and ask professional personnel to install it, otherwise there may be danger.

2. Do not change the structure of the lamp during cleaning and maintenance, and do not change the parts of the lamp at will.

3. When using lamps, try not to switch them too frequently. Although the switching times of LED lamps are about 18 times that of ordinary fluorescent lamps, too frequent will still affect the life of the internal electronic components of the LED lamps, thereby affecting the life of the lamps.

Fourth, it should be noted that, except for special LED lamps, ordinary LED lamps should be avoided in humid environments. Humid environment will affect the electronic components of the LED lamp driving power supply, and the electronic components will be damp and the lamp life will be shortened.



Q2:How to maintain LED lamps?
RE: 1. Moisture prevention is the key to the maintenance of LED lights (except for special products). Moisture should be avoided to prevent moisture intrusion, rust damage or leakage short circuit.

2. The led lamps can be wiped with a dry cloth. If you accidentally touch the water, you should try to wipe it dry. Do not wipe it with a wet cloth immediately after turning on the light.



Tips:

1. Avoid using in high temperature and high humidity environments

Second, the inside of the led lamp is mainly driven by the power supply. It is recommended that non-professionals do not assemble, disassemble and assemble by themselves to avoid dangers such as electric shock.

3. LED lighting fixtures are generally used when the ambient temperature is 5-40°C.

Fourth, the metal parts of led lighting lamps can not use polishing powder and other chemicals at will.

5. The dust behind the led lighting should be cleaned with a dry cloth or duster.



IP65 LED Linear Low Bay Light 140LPW 80Ra High Efficiency 22

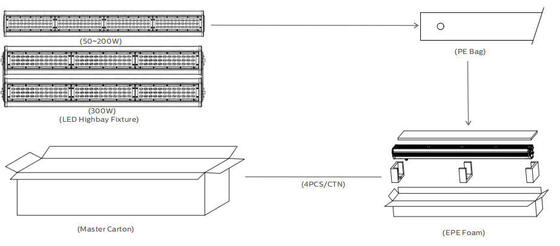

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-HB100-EGXP
8.3
325*490*380
9.2
4PCS/CTN
DR-HB150-EGXP
13.8
577*490*380
15.2
4PCS/CTN
DR-HB200-EGXP
19.5
828*490*380
21.2
4PCS/CTN
DR-HB240-EGXP
30.2
1180*490*380
32.4
4PCS/CTN
DR-HB300-EGXP
39.5
828*980*380
42.4
2PCS/CTN
