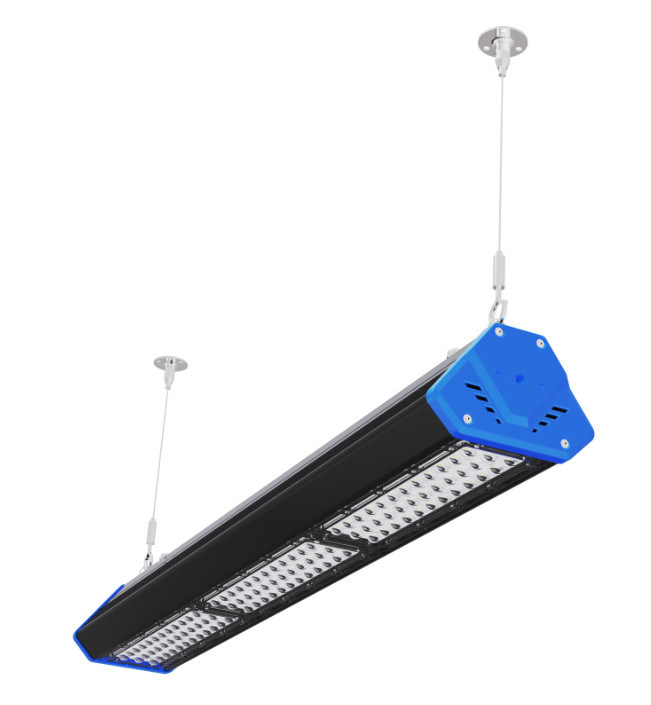

IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030

IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030

  • IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030
  • IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030
  • IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030
Product Details:
Place of Origin: Shenzhen, China
Brand Name: DUALRAYS(OEM available)
Certification: CE, ROHS, TUV/GS, LM79, LM80
Model Number: DR-LB150-FG3XX
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Please inquiry for latest price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 bussiness days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 120000pcs/month
Contact Now
Detailed Product Description
Input Voltage: AC100~277V 50/60Hz Driver: Meanwell/Sosen
LEDs: EPISTAR Efficiency: 150LPW
PF: 0.98 CCT: WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K
CRI: >80Ra Body: Aluminium Alloy+PC
Package: Normal Export Carton Box Applications: Factory/Warehouse/Workshop/Exhibition Center...
High Light:

140LPW Aluminium LED Linear Light

,

80Ra Aluminium LED Linear Light

,

SMD3030 Linear Led Lighting

150W IP65 LED Linear Low Bay Light Heavy 6063 Aluminum PC Meanwell Driver

IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 0



IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 1

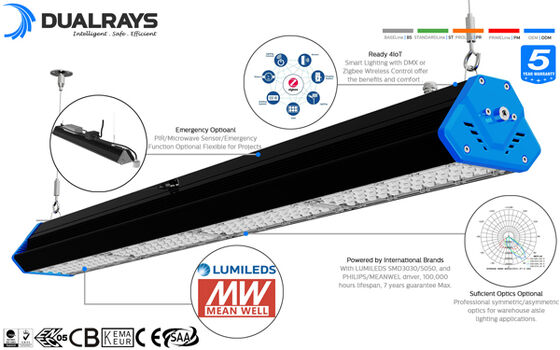

Options:

> Driver: Sosen, Meanwell ELG/HLG;
> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

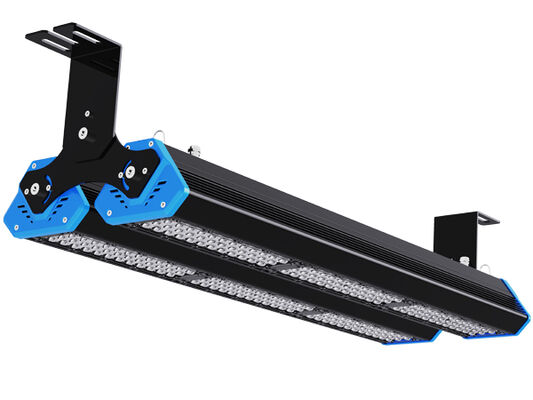

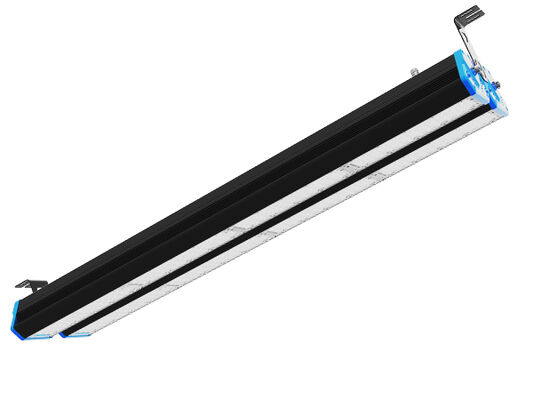

> Unit Combination : 2 Rows or 3 Rows Combination with Bracket;

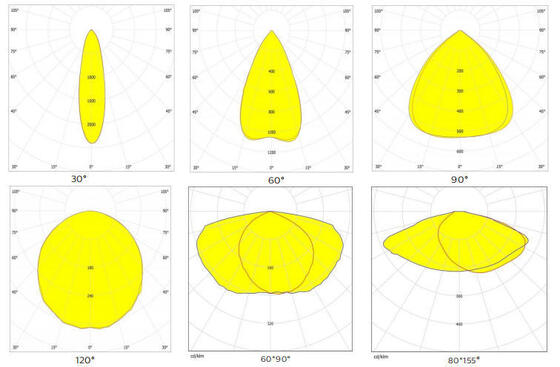

> Lens : Symmetric 30°/60°/90°,Asymmeric 30*70°/80*155/60*90° beam angle;

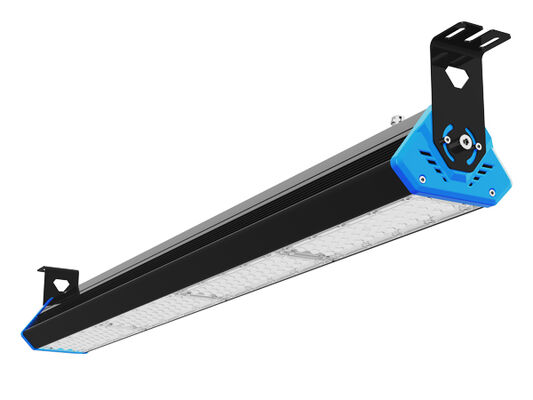

> Installation: Suspension, Wall Mounting;

IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 2

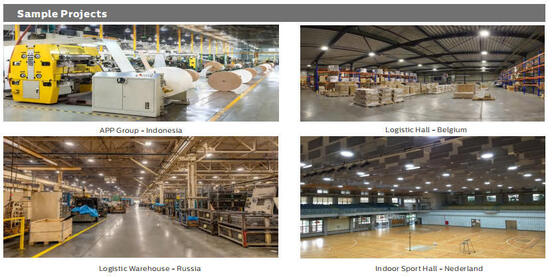

> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement


IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 3

Model No. DR-LB050-FG1XX DR-LB100-FG2XX DR-LB150-FG3XX DR-LB200-FG4XX DR-LB300-FG3XDX
System Watts/W 50W 100W 150W 200W
300W
System Efficiency/LPW 140LPW
Lumen Output/lm 7.000±5% 14.000±5% 21.000±5% 28.000±5% 42.000±5%
Rated Input Voltage/V AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source SMD3030
SDCM <5
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >70Ra (>80Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle(Optional) 30°/60°/90°/30*70°/80*155/60*90°
UGR <25
Surge Protection 6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver Meanwell ELG/HLG,Sosen
IP Rating IP65
Dimming(Optional) 0/1-10V/DALI/Zigbee

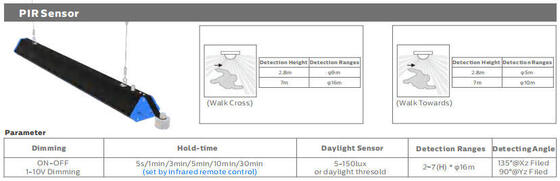

Sensor(Optional) Motion Sensor,Daylight Sensor

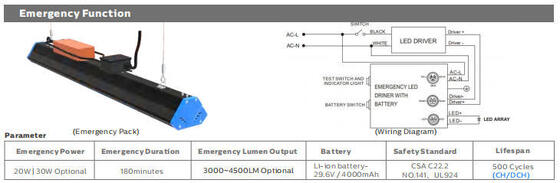

Emergency(Optional) Available (30W @ 3Hrs for Standard)
Protection Class ClassⅠ
Finishing Color(Optional) Black RAL9017(Standard)
Material Aluminum+PC
Lifespan/hrs 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available





IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 4

Character/Power
100W
150W
200W
240W
300W
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 5 IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 6
A / mm
284.8
542.9
801
1058.6
801
B / mm
134
134
134
134
268
C / mm
110.5
110.5
110.5
110.5
110.5


IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 7



IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 8

IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 9
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 10

IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 11





DALI Device
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 12

DALI Intelligent Control Diagram
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 13 IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 14


DALI Intelligent Control Operator Interface
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 15


IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 16
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 17
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 18
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 19
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 20
IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 21


FAQ



Q1:How important is the heat dissipation of LED high bay lights?
RE:A good high-power industrial and mining lamp must be driven by high-quality and high-power output efficiency, high-efficiency light source and high-efficiency radiator, the perfect combination of three accessories, no matter how good the drive is, if it does not match the light source, it will appear similar. To achieve better luminous efficiency, the driver and light source will lose a lot of energy and power when heat occurs. As we all know, the heat dissipation conditions of the wall washer determine the life of the lamp. No matter how good the driver and light source are, the heat dissipation is not good. , Even if the initial light efficiency of the lighting fixture is high, it will quickly decay, causing it to be impossible to select normally.

As we all know, the heat dissipation conditions of high-power high bay lamps determine the life of the lamps. No matter how good the power source and light source are used, the heat dissipation is not good. Can't choose normally. Large-scale and long-term use can also save the city's objective electricity output. Moreover, high-power industrial and mining lamps will not release harmful substances, low carbon, and will not destroy the situation. Floodlight is an indispensable lamp in outdoor lighting projects, and it is used in almost everything.

The products are manufactured through continuous processing to ensure that the products are very stable and durable and safe during long-term selection. A good high-power industrial and mining lamp needs the force of high-quality and high-power output efficiency, high-efficiency light source and high-efficiency radiator, the perfect combination of three parts, no matter how good the force is, if it is not so good with the light source The matching also fails to achieve better luminous efficiency. The force and the heat of the light source will lose a lot of energy and power.



IP65 140LPW 80Ra Aluminium LED Linear Light Heat Dissipation SMD3030 22

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-HB100-EGXP
8.3
325*490*380
9.2
4PCS/CTN
DR-HB150-EGXP
13.8
577*490*380
15.2
4PCS/CTN
DR-HB200-EGXP
19.5
828*490*380
21.2
4PCS/CTN
DR-HB240-EGXP
30.2
1180*490*380
32.4
4PCS/CTN
DR-HB300-EGXP
39.5
828*980*380
42.4
2PCS/CTN
