DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver

  • DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver
  • DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver

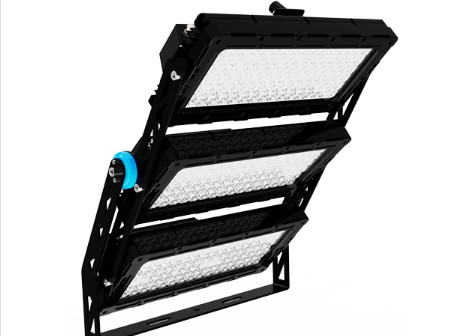

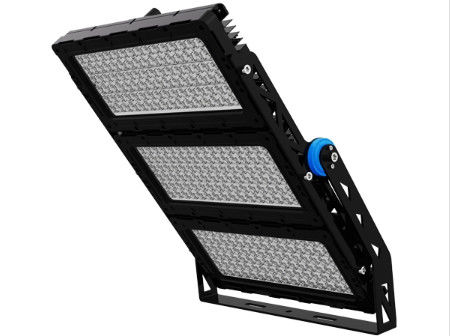

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL500-DG1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Power: 500W Efficiency: 150~160LPW
Lumen: 60,000lm Surge Protection: 4~6KV SPD Built In Driver, Exterior SPD 20KV Meanwell Optional
CRI: >83Ra Beam Angle: 20°/30°/60°/90°/140*60° Optional
LED Driver: Meanwell HLG LED Chips: LUMILEDS SMD5050
Highlight:

Meanwell Driver LED Stadium Floodlights

,

500W LED Stadium Floodlights

,

160LPW Led Sports Field Lighting

DUALRAYS 500W SP5 Series Meanwell Driver Sport Light for Stadium Sport Filed

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 0
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 1

Options:
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;
> Aiming Device: Laser Pointer;

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 2
> Logistics areas (Ports)
> Stadiums and Racing tracks
> Public squares
> Apron lighting (Airports), Parking and Industrial areas
> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 3
Model No.
 DR-SPL500-EGXP
System Watts/W
 500W
System Efficiency/LPW
 150~160LPW
Lumen Output/lm
 60.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 20°/30°/60°/90°/140*60° Optional
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG/HLG
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 4
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 5
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 6
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 7
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 8
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 9
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 10

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 11
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 12

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 13

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 14
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 15
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 16

DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 17
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 18
Q1: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.



Q2: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q3: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.



Q4:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
DUALRAYS LED Stadium Floodlights 160LPW 500W With Meanwell Driver 19
Cila zhang
Sales Engineer
Email: sales08@dualrays.com
Mobile/ Whatsapp:0086-157-1083-3783
Zip Code: 518125
Add: 6th Floor,Building 10, Gangzai Industrial Park, Furong Industrial Park,Xinqiao Industrial District,Shajing,Bao‘an District,Shenzhen 518125, P.R.China
