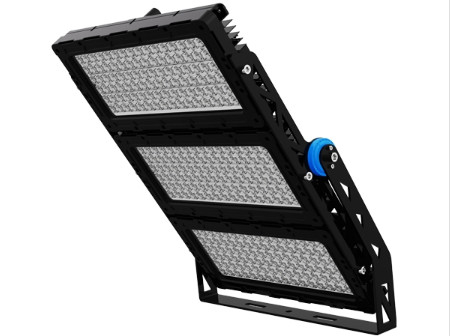

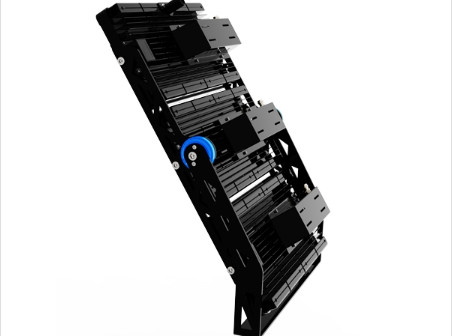

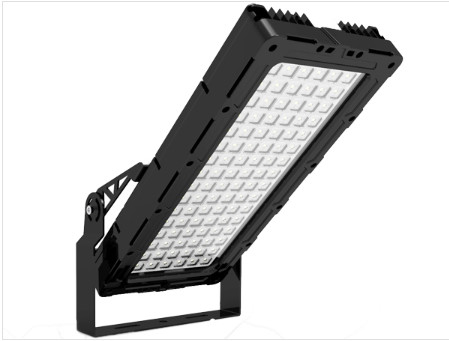

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver

  • Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver
  • Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver
  • Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL600-DG1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Power: 600W Efficiency: 150~160LPW
Material: Aluminium Alloy CCT: 3000/4000/5700/6500K±200K
CRI: >83Ra Beam Angle: 20°/30°/60°/90°/140*60° Optional
LED Driver: Meanwell HLG LED Chips: LUMILEDS SMD5050
Highlight:

SMD5050 Sport Stadium LED Sport Light

,

600W Sport Stadium LED Sport Light

,

HLG Driver Led Football Floodlights



DUALRAYS 600W SP5 Series Sport Stadium LED Sport Light LUMILEDS Chips Meanwell Driver

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 0
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 1

Options:
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;
> Aiming Device: Laser Pointer;
Features:
> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;
> High Brightness LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs, , Meanwell HLG / ELG Driver;
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK08 Protection;
> Symmetrical 25°/40°/50°/90° beam angle optional;
> Surface Spray-paint Finish,Oxidation/Corrosion/Acid Resistant;
> Multi-scale lens to create well-balanced distribution and reduce glare;
> Shield to Reduce the Light Glare;
> 180°Adjustable Supporting Fixture;
> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;
> Flange Plate for Each Module for a 5°Adjustment;
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 2
> Logistics areas (Ports)
> Stadiums and Racing tracks
> Public squares
> Apron lighting (Airports), Parking and Industrial areas
> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 3
Model No. DR-SPL300-DGXX DR-SPL600-DGXX DR-SPL900-DGXX DR-SPL1200-DGXX DR-SPL1500-DGXX DR-SPL1800-DGXX
System Watts/W 300W 600W 900W 1200W 1500W
1800W
System Efficiency/LPW 130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm 48.000±5% 96.000±5% 144.000±5% 192.000±5% 240.000±5% 288.000±5%
Rated Input Voltage/V AC200~240V, 50/60Hz
LEDs Light Source SMD3030 / SMD5050 Optional
SDCM <5
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >70Ra (>80Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle(Optional) Symmetrical 25°/40°/50°/90° beam angle optional
UGR <25
Surge Protection 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver Meanwell ELG/HLG
IP Rating IP65
Dimming(Optional) 1-10V, DALI,PWM,Zigbee
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class ClassⅠ
Finishing Color(Optional) Black RAL9017(Standard) / White RAL9016 Optional
Material Aluminum+PC
Lifespan/hrs 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 4

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 5
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 6
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 7
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 8
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 9
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 10

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 11
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 12

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 13

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 14
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 15
Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 16

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 17

Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver 18
